Adjustable Timing Chain Guide Replacement

WARNING: This page is about a different variant/trim than selected.

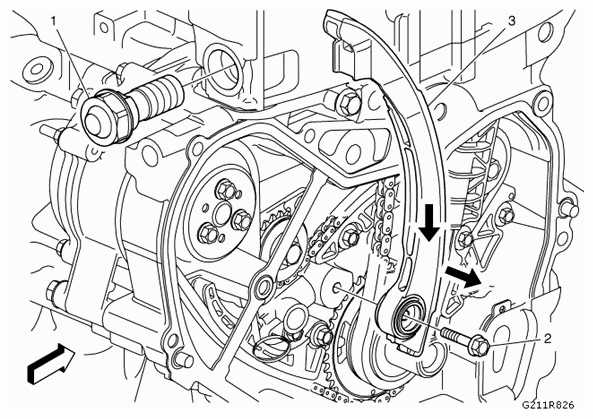

Fig 1: Removing Adjustable Timing Chain Guide

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the oil pump gear. Refer to OIL PUMP GEAR REPLACEMENT .
1	Timing Chain Guide Tensioner Fastener Refer to FASTENER CAUTION . Tighten 75 Nm (55 lb ft)
2	Adjustable Timing Chain Guide Fastener Tighten 12 Nm (106 lb in)
3	Adjustable Timing Chain Guide
