Balancer Chain Adjust Guide Replacement

WARNING: This page is about a different variant/trim than selected.

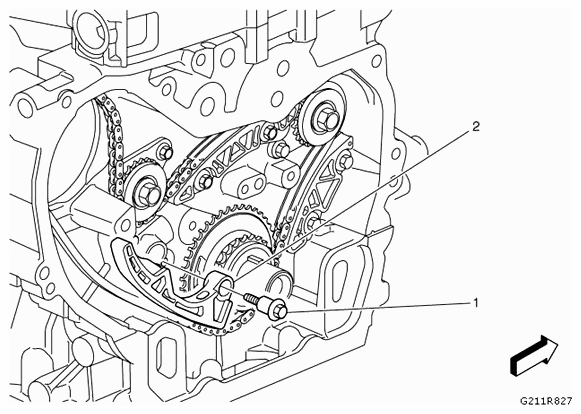

Fig 1: Removing Balancer Chain Adjust Guide

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the water pump and balance shaft chain tensioner. Refer to WATER PUMP AND BALANCE SHAFT CHAIN TENSIONER REPLACEMENT .
1	Balancer Chain Adjustable Guide Fastener Refer to FASTENER CAUTION . Procedure Always install the fasteners with LOCTITE. Tighten 10 Nm (89 lb in)
2	Balancer Chain Adjustable Guide
