Balancer Chain Guide Replacement - Lower

WARNING: This page is about a different variant/trim than selected.

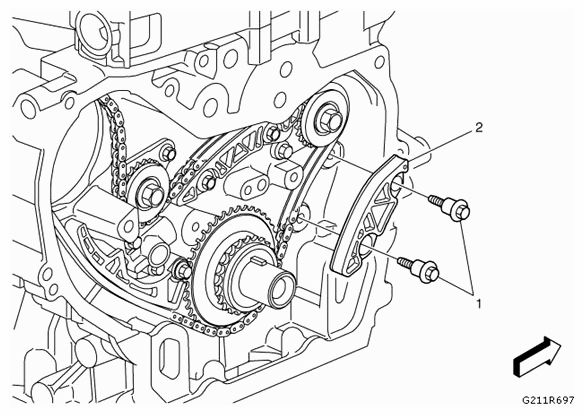

Fig 1: Removing Balancer Chain Guide

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the balancer chain guide - upper. Refer to BALANCER CHAIN GUIDE REPLACEMENT - UPPER .
1	Balancer Chain Guide Fastener (Qty: 2) Refer to FASTENER CAUTION . Procedure Always install the fasteners with LOCTITE. Tighten 12 Nm (106 lb in)
2	Balancer Chain Guide
