Engine Mount Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

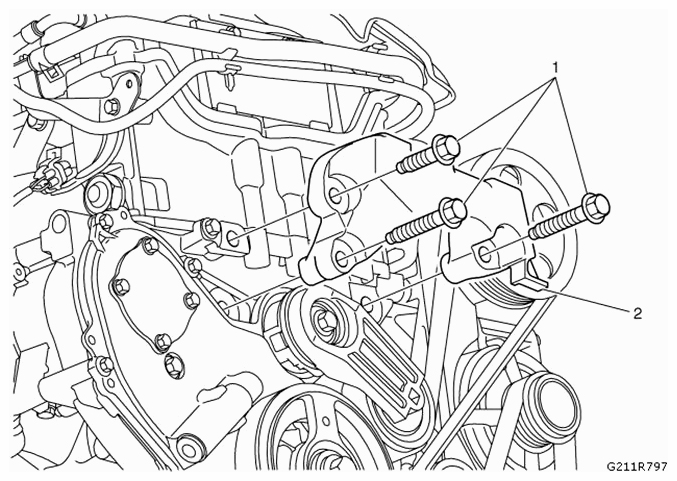

Fig 1: Removing Engine Mount Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the engine mount. Refer to OIL LEVEL INDICATOR TUBE REPLACEMENT .
1	Transmission Mount Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten 100 Nm (74 lb ft)
2	Engine Mount
