K9 Body Control Module Connector End View X1: Notes

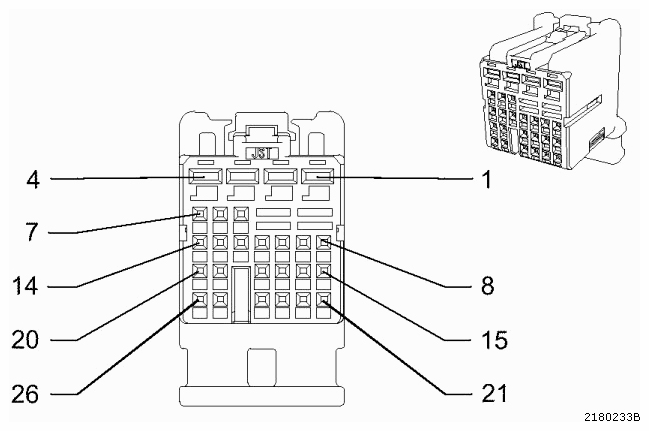

Fig 1: K9 Body Control Module Connector End View X1
G09436551Courtesy of SAAB-SCANIA OF AMERICA, INC.
