Engine Block - Front View

WARNING: This page is about a different variant/trim than selected.

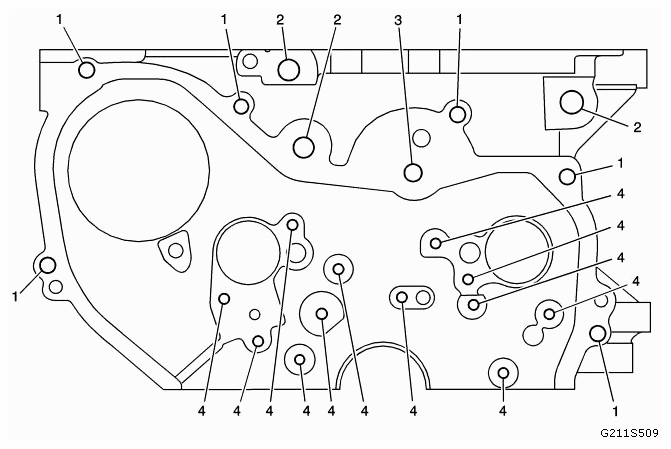

Fig 1: Identifying Engine Block Thread Locations (Front View)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

ENGINE BLOCK SPECIFICATIONS (FRONT VIEW)

Service Call Out	Thread Size	Insert	Drill	Counterbore Tool	Tap	Driver	Drill Depth Maximum		Tap Depth Maximum
J 42385-850							MM	IN	MM	IN
1	M8 x 1.25	210	206	207	208	209	23.5	0.93	18.5	0.73
2	M12 x 1.75	855	856	857	858	859	33.5	1.32	26.5	1.04
3	M10 x 1.5	215	211	212	213	214	24.5	0.96	19.5	0.77
4	M6 x 1	205	201	202	203	204	20	0.787	16	0.63
