Lower Crankcase - Front View

WARNING: This page is about a different variant/trim than selected.

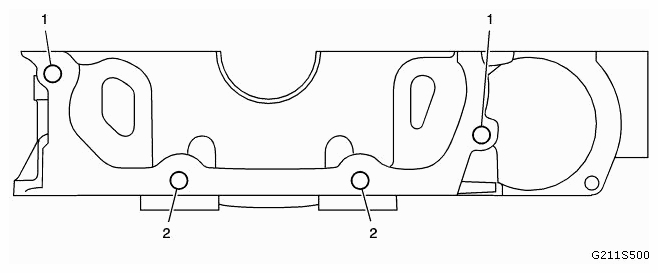

Fig 1: Identifying Lower Crankcase Thread Locations (Front View)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

LOWER CRANKCASE SPECIFICATIONS (FRONT VIEW)

Service Call Out	Thread Size	Insert	Drill	Counterbore Tool	Tap	Driver	Drill Depth Maximum		Tap Depth Maximum
J 42385-850							MM	IN	MM	IN
1	M8 x 1.25	210	206	207	208	209	23.5	0.925	18.5	0.73
2	M8 x 1.25	210	206	207	208	209	30.5	1.201	25.5	1.00
