Code 41 - Vehicle Speed Sensor Input Not Present: Notes

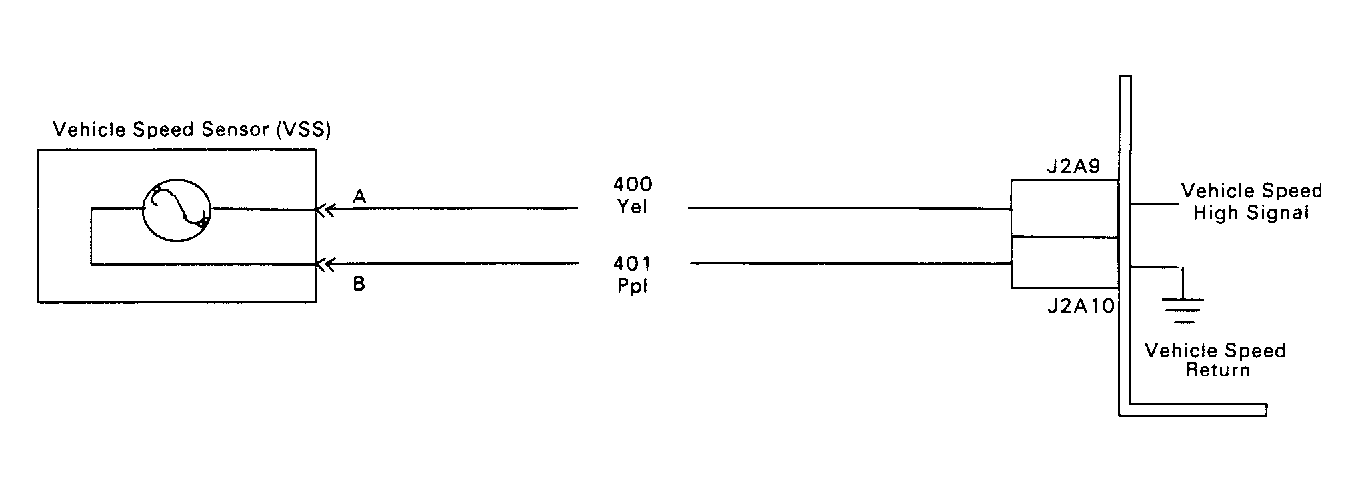

Fig 1: Code 41 Circuit Diagram

G92B14747

Courtesy of GENERAL MOTORS CORP.
