Arming Sensor/Dual Pole Arming Sensor: Removal

WARNING: This page is about a different car, the 1995 Pontiac Sunfire and 1995 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM.
On Cavalier, dual pole arming sensor is located behind instrument panel. Remove defroster grille, both instrument panel end caps., and instrument panel topper pad. Disconnect CPA clip and remove electrical connector. Unbolt DERM and remove. Remove arming sensor bolts and sensor. See Fig 1 .

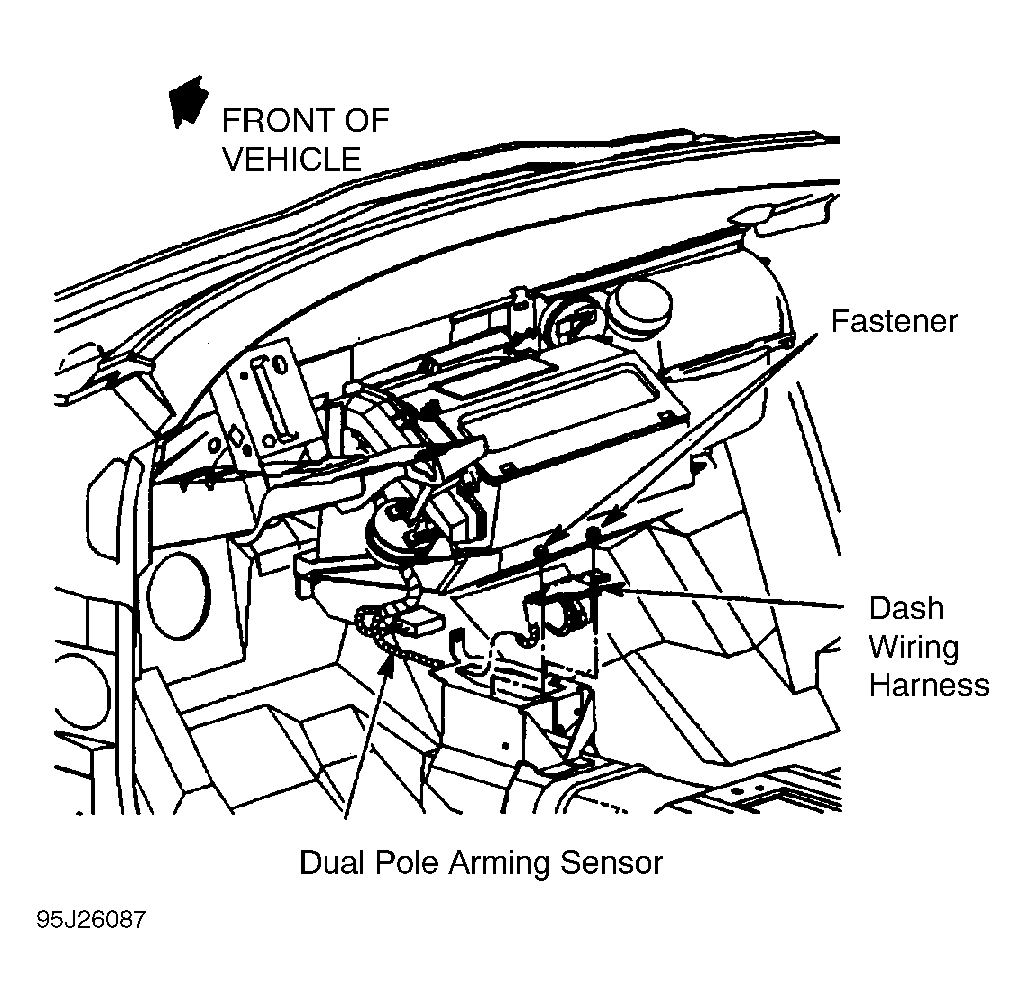

Fig 1: Removing Dual Pole Arming Sensor
Courtesy of GENERAL MOTORS CORP.
On Sunfire, dual pole arming sensor is located behind instrument panel. Remove both instrument panel end caps and glove box trim strip. Remove accessory trim plate (radio/A/C-heater controls) and instrument panel topper pad. Disconnect CPA clip and remove electrical connector. Unbolt DERM and remove. Remove arming sensor bolts and sensor. See Fig 1 .
