Component Locations

For component locations, see Fig 1 .

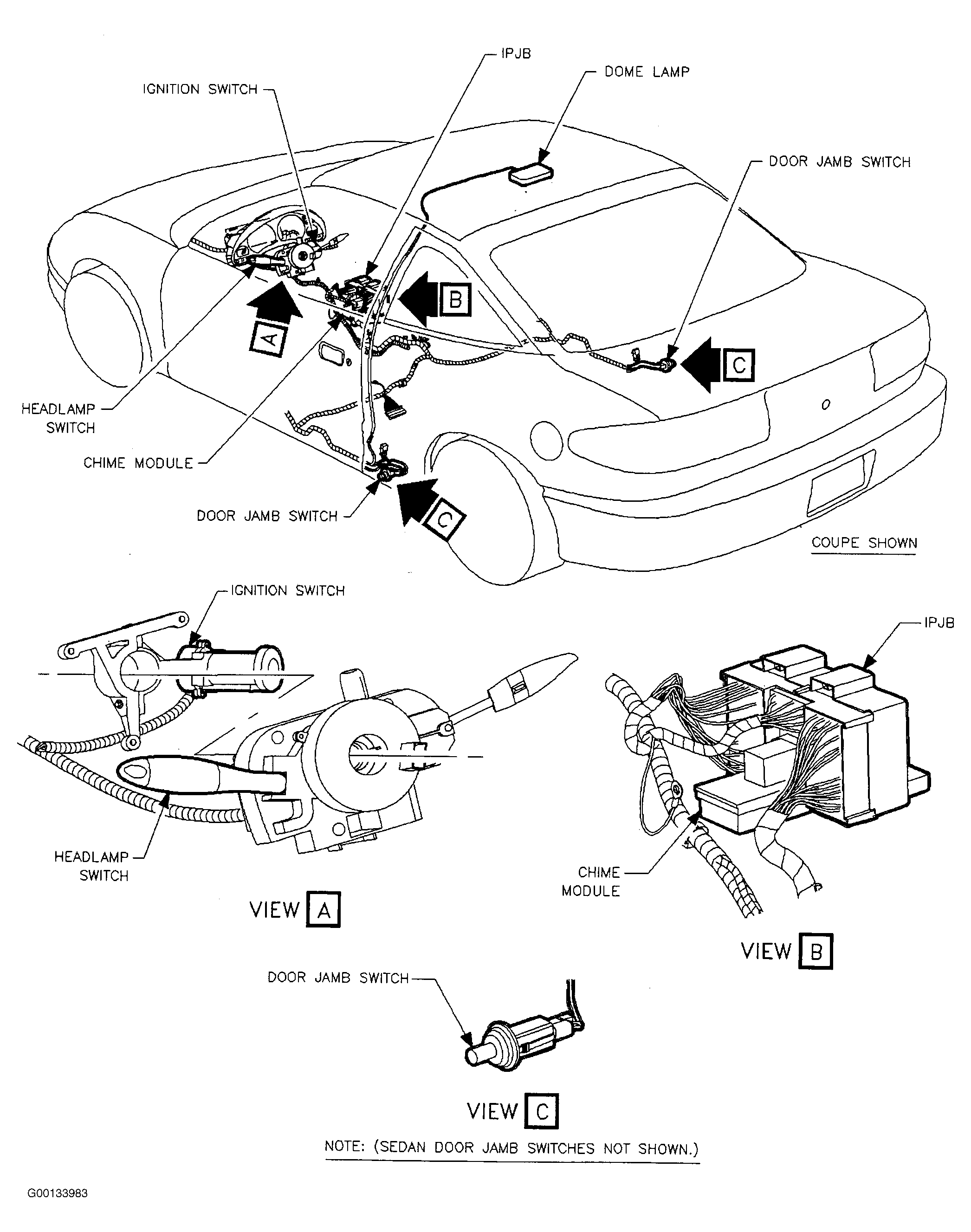

Fig 1: Chime/Delayed Dome System Component Locations

Courtesy of GENERAL MOTORS CORP.

NOTE: Passenger compartment fuse/relay block is also known as the instrument panel (I/P) junction block.

Fig 2: Locating Passenger Compartment Fuse/Relay Block

COMPONENT LOCATIONS

Component	Location
Body Ground C	Left side of engine compartment.
Body Ground D	Left rear corner of engine compartment.
Body Ground N	Under driver's seat.
Chime Module	In instrument panel junction block.See Figure .
Underhood Junction Block	Left front corner of engine compartment, near battery.
