Map Light

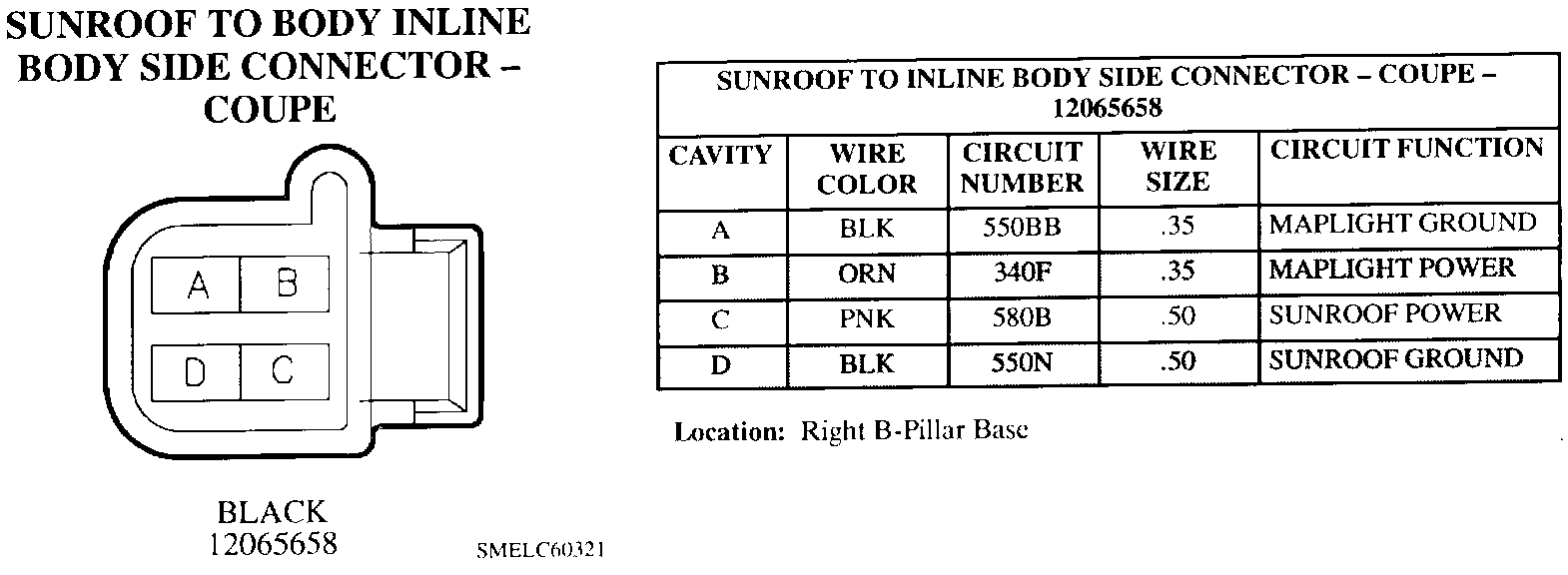

Sunroof To Body Inline Body Side Connector:

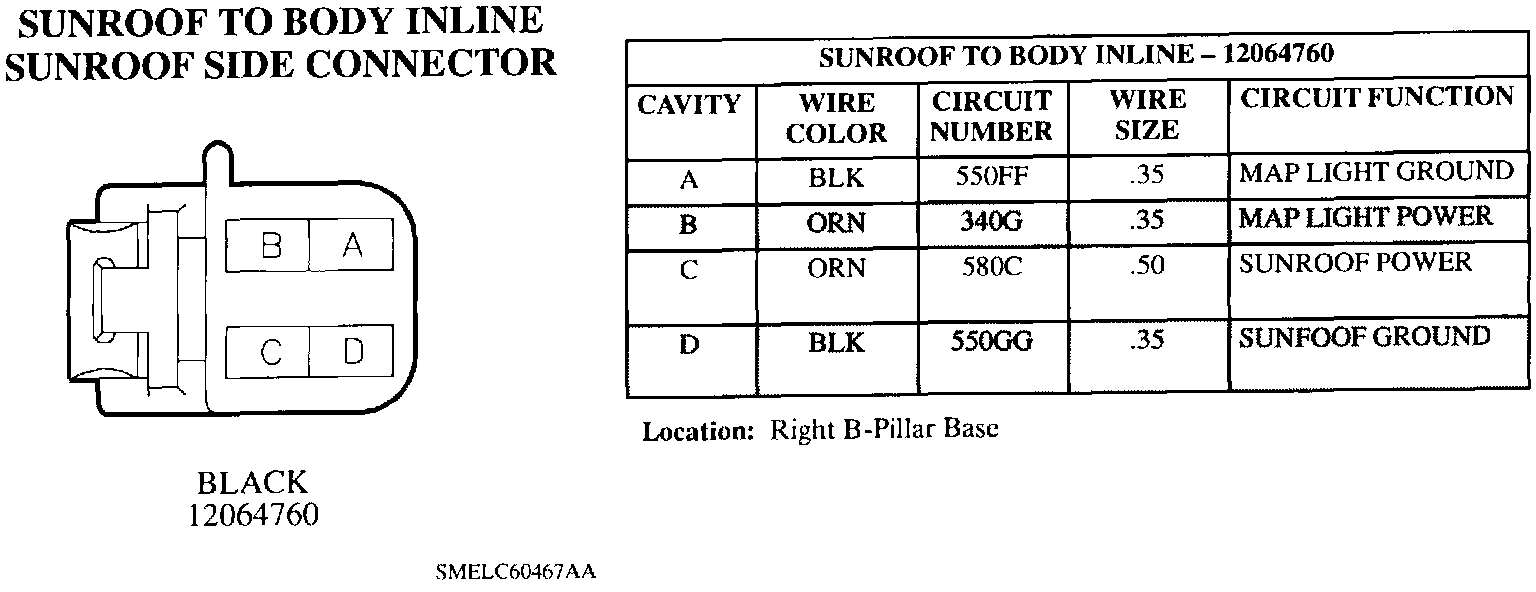

Sunroof To Body Inline Sunroof Side Connector:

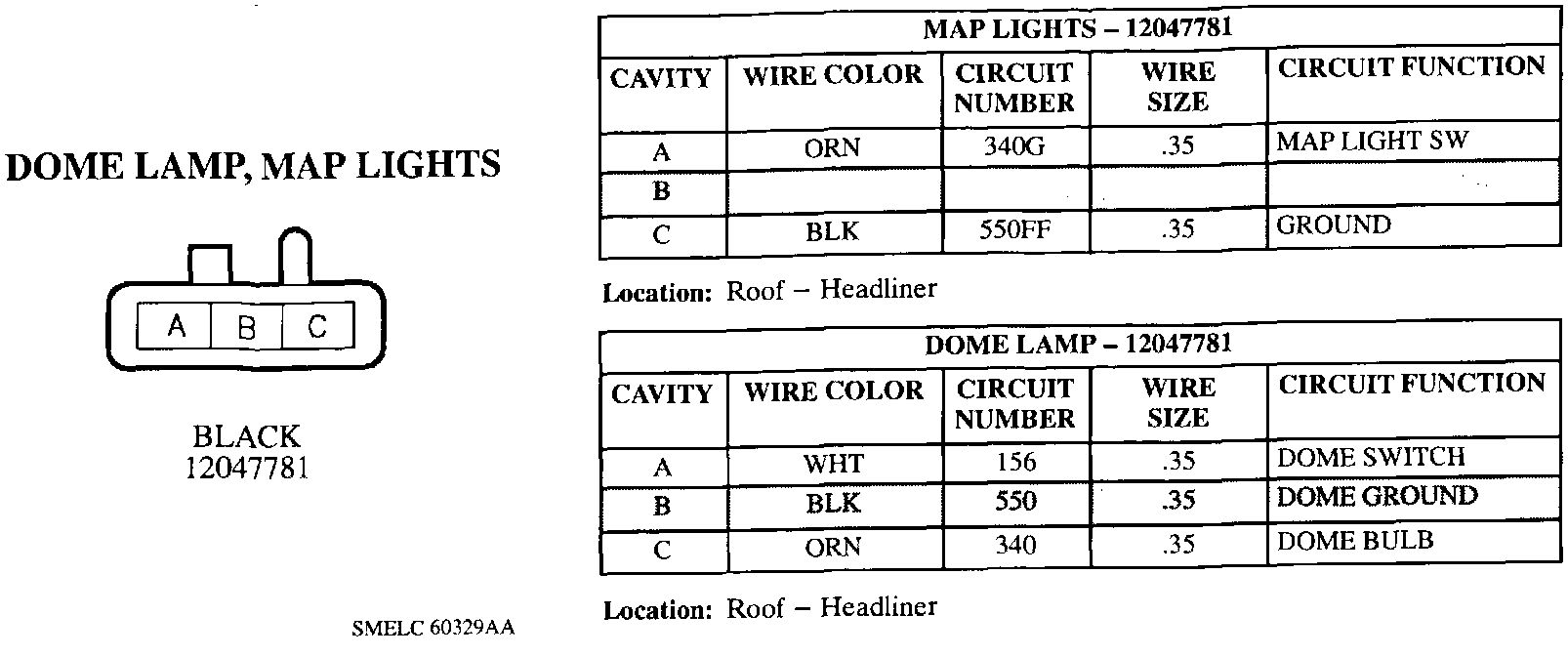

Dome Lamp, Map Lights:
