SIR Driver/Passenger Load Tool

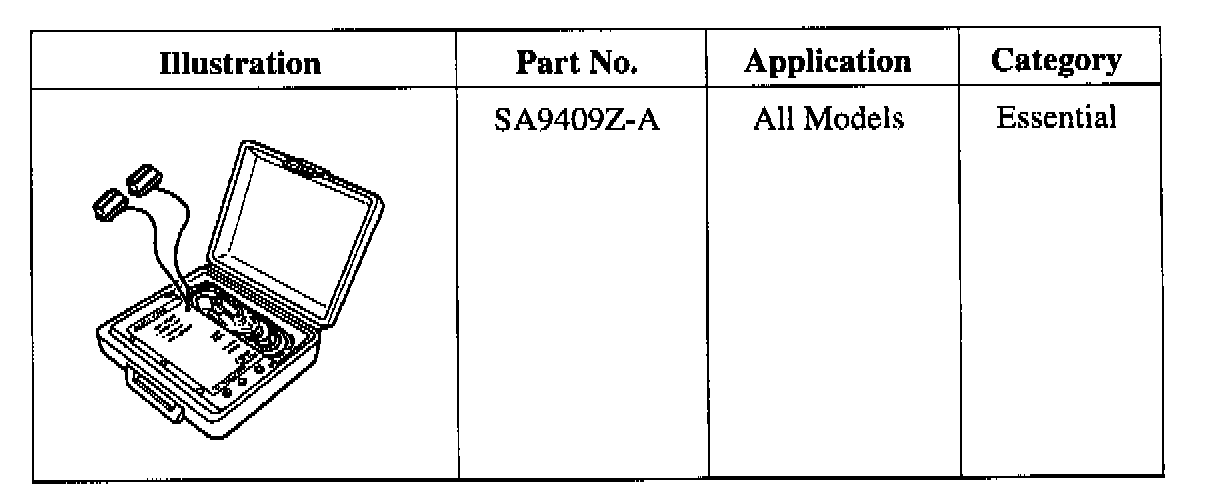

SIR DRIVER/PASSENGER LOAD TOOL:




The SIR driver/passenger load tool SA 9409Z is used as a diagnostic aid and safety device to prevent inadvertent inflator module deployment.

The load tool has several yellow connectors and one black connector attached to its case. The small yellow connectors serve as resistive load substitutions. The kit also includes an instruction sheet on how to attach the connectors to the load tool, and adhesive labels for identifying connectors.
