Left Relay/Module Circuit Feeds

Left Relay/Module Circuit Feeds:

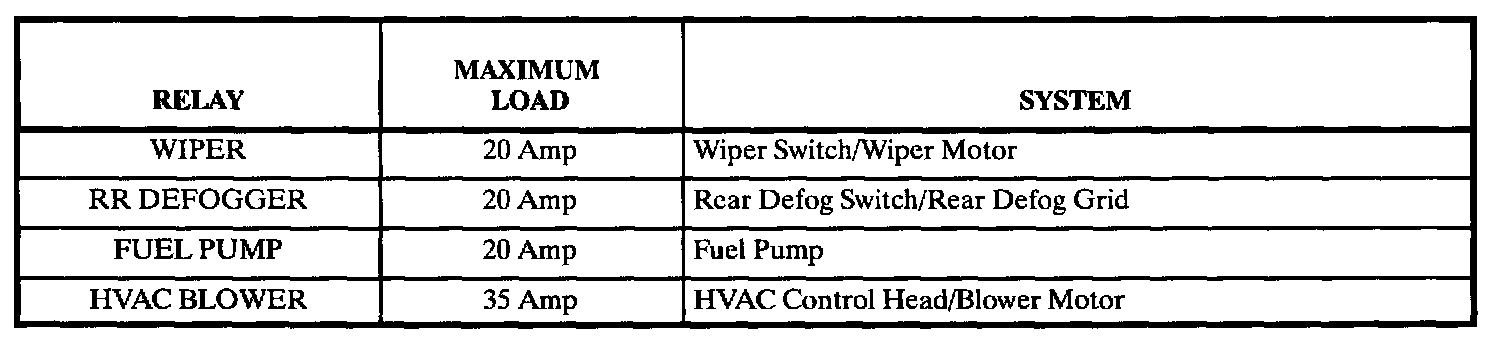

The chart lists the devices located in the left fuse block, and the systems they control.
