Front Suspension: Description

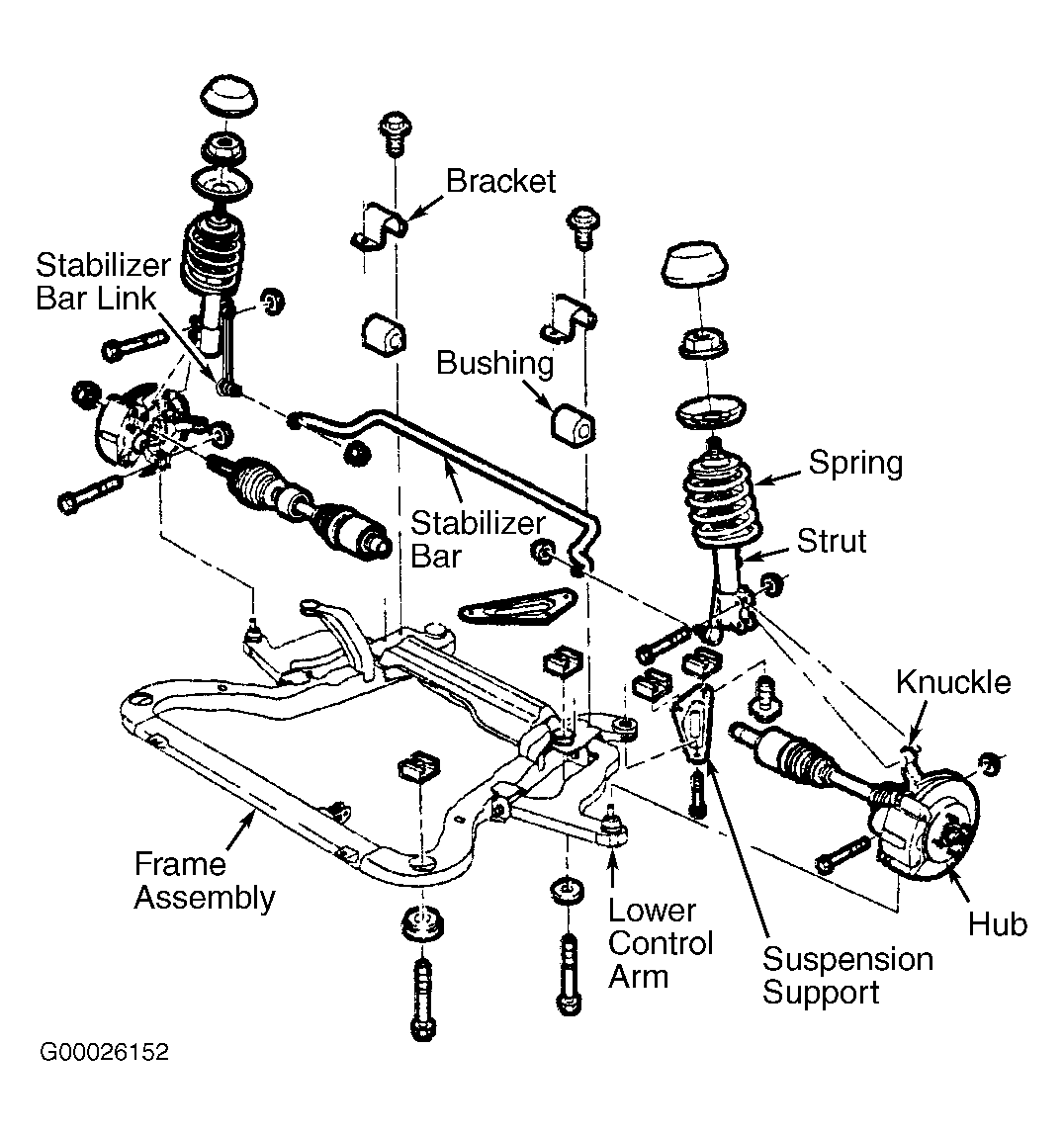

Front suspension uses a MacPherson strut suspension to provide spring support and shock absorption. See Fig 1. Top of strut is attached to vehicle body. Bottom of strut is attached to steering knuckle. Steering knuckle is attached to control arm by a ball joint. Stabilizer bar is clamped to the frame assembly and linked to the strut assembly.
