Description & Operation

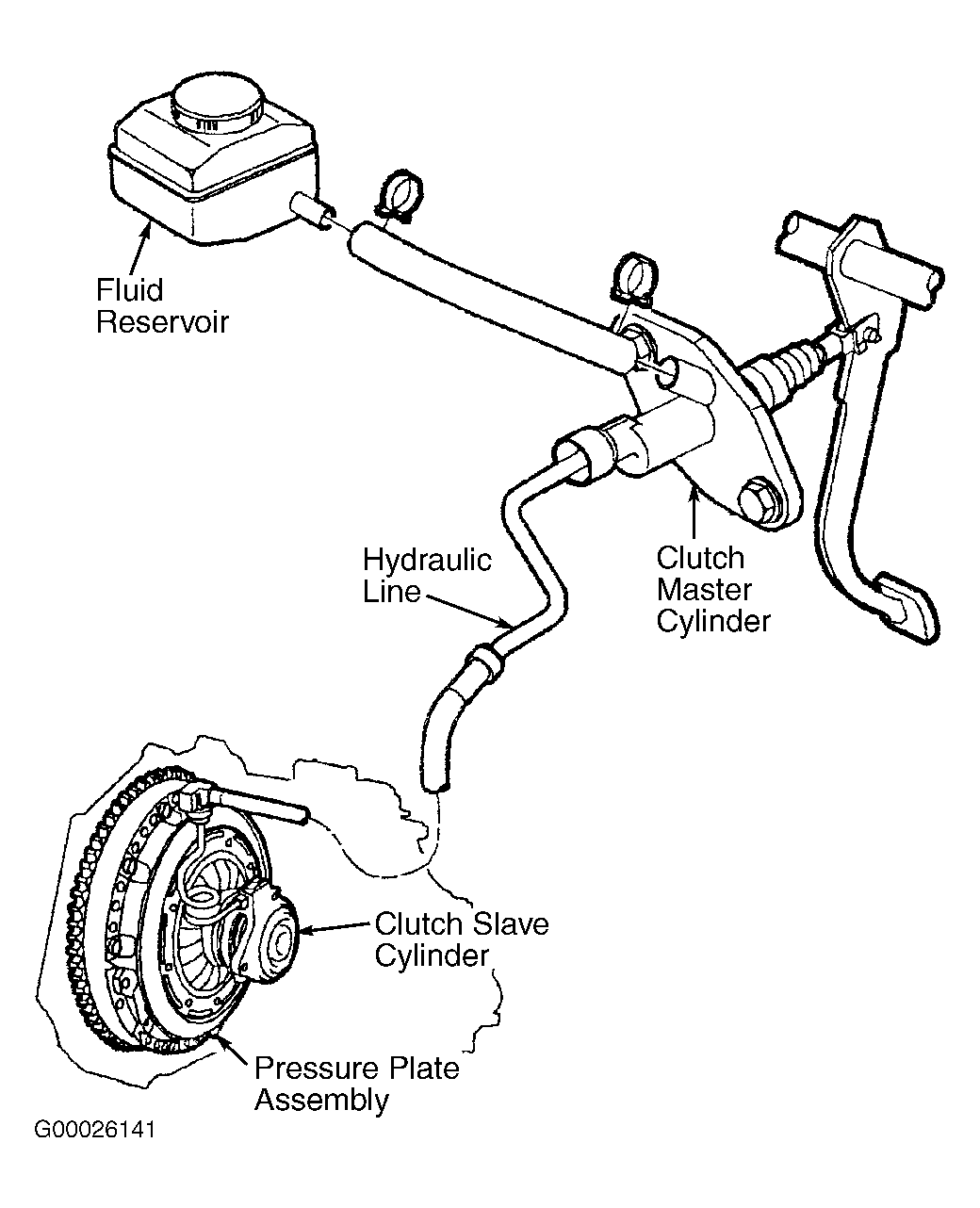

Clutch assembly consists of a single-plate clutch disc and a diaphragm spring-type pressure plate. Hydraulic clutch release system consists of clutch pedal, clutch master cylinder, slave cylinder and permanently lubricated clutch release bearing. See Fig 1 .
