J1

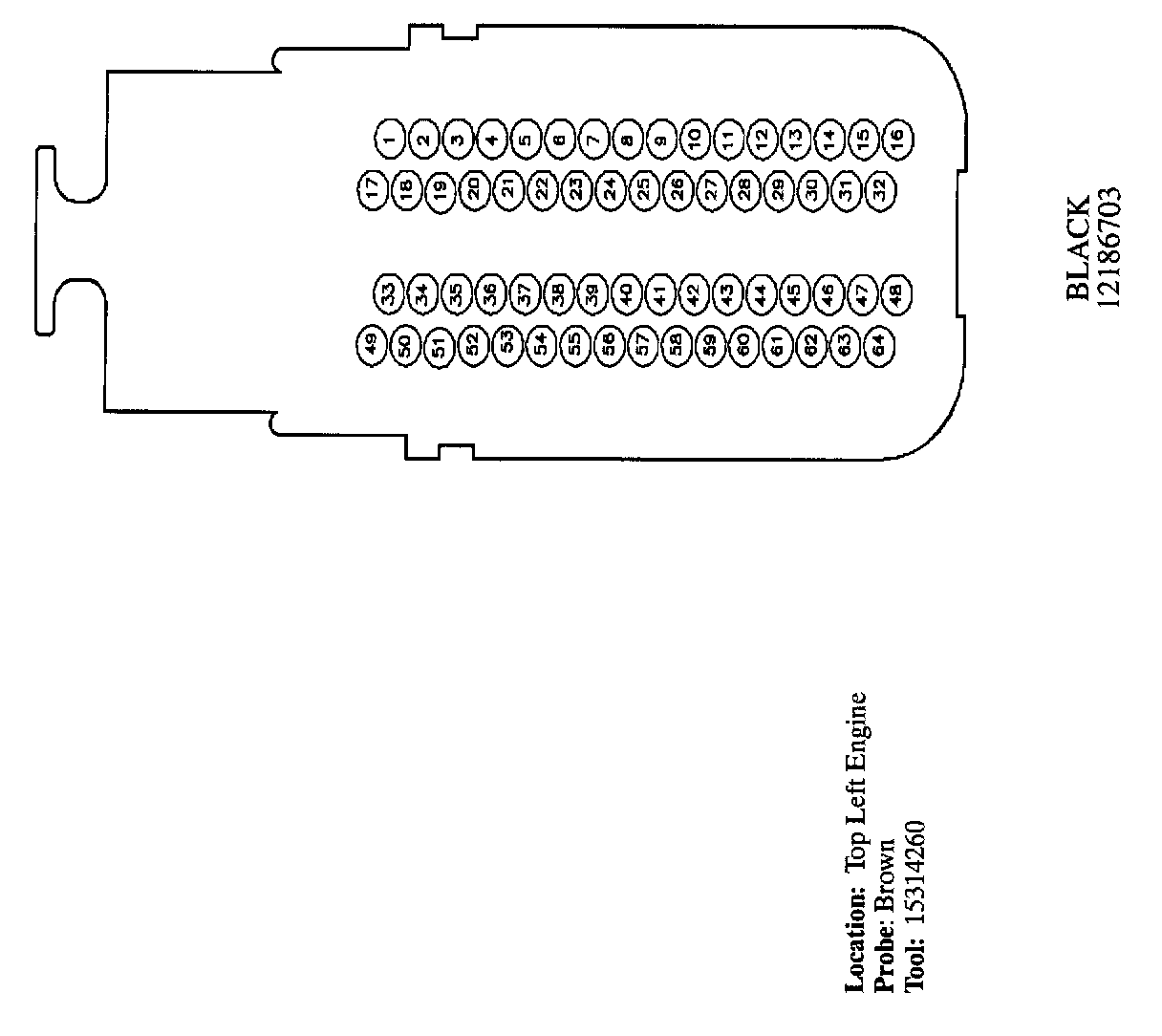

Engine Control Module (Engine J1) (Part 1 Of 3):

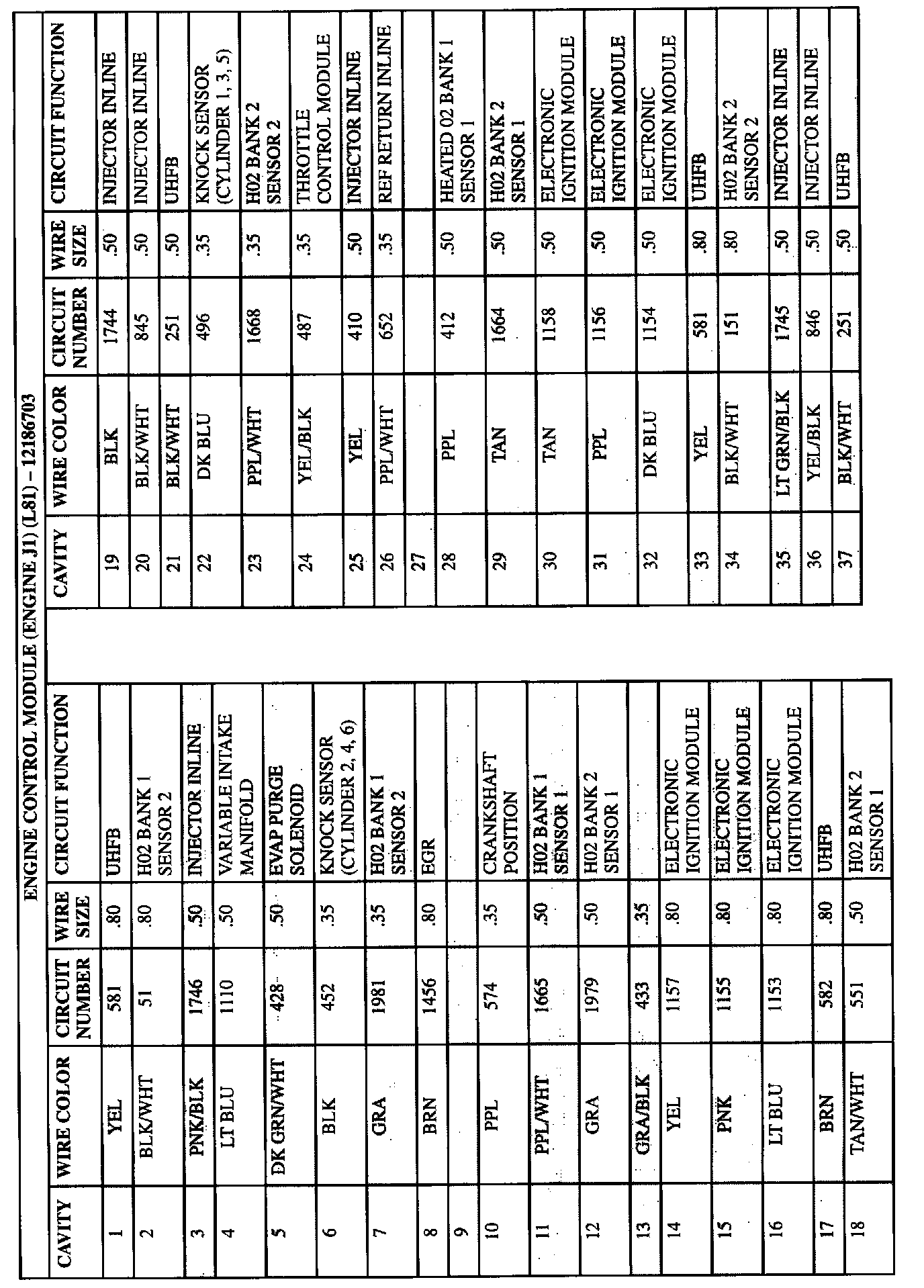

Engine Control Module (Engine J1) (Part 2 Of 3):

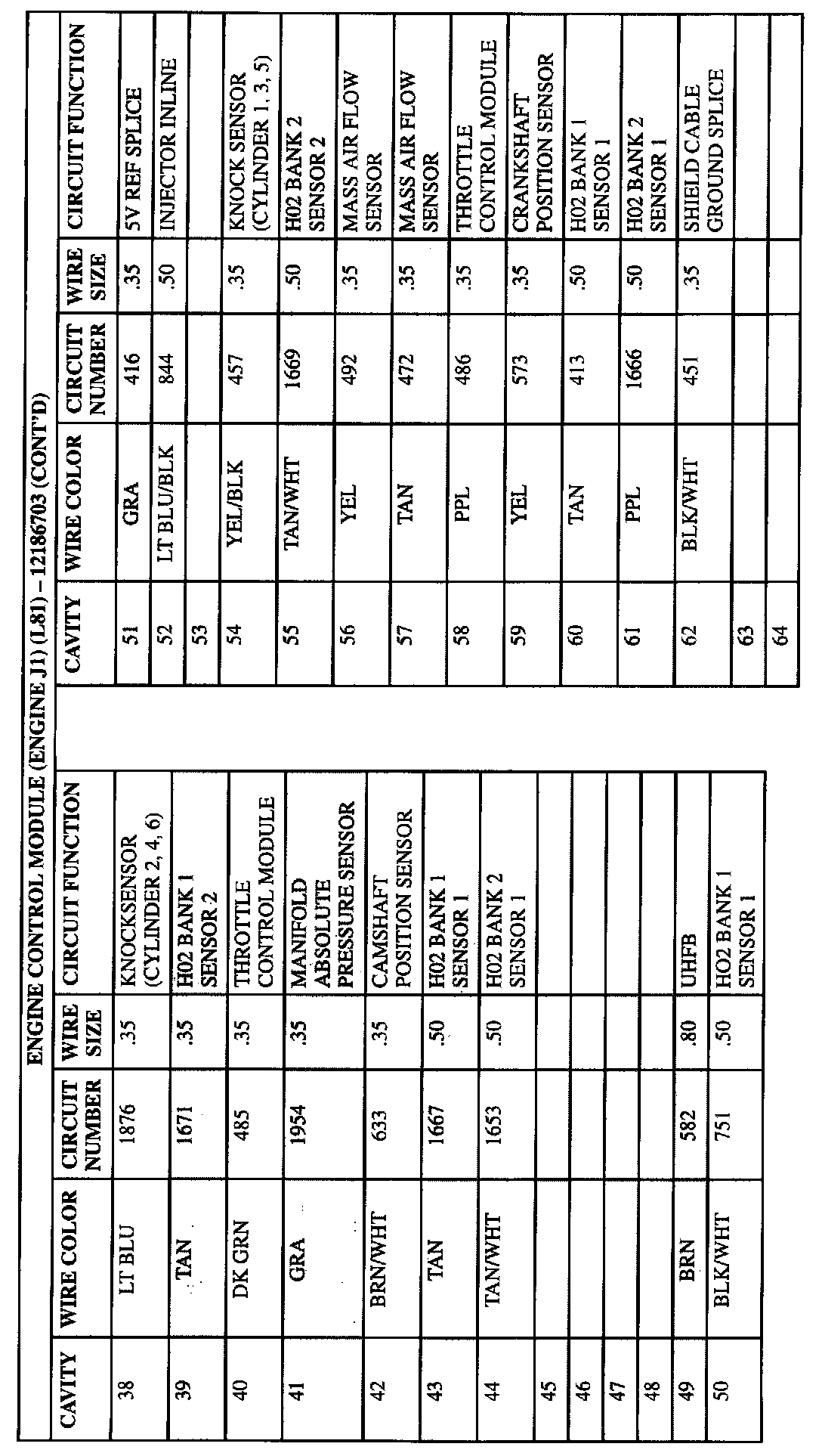

Engine Control Module (Engine J1) (Part 3 Of 3):



Powertrain Control Module J1 (Part 1 Of 3):



Powertrain Control Module J1 (Part 2 Of 3):



Powertrain Control Module J1 (Part 3 Of 3):
