Air Flow Meter/Sensor: Service and Repair

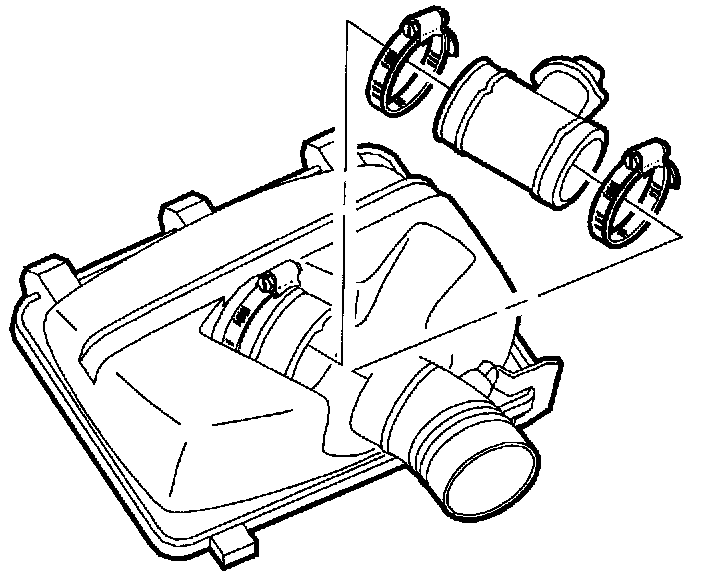

REMOVAL
1. Ignition off.
2. Disconnect MAF electrical connector.
3. Remove hose clamps.
4. Remove MAP sensor.

INSTALLATION
1. Install MAF sensor.
2. Install hose clamps.
3. Connect MAP sensor electrical connector.
