FOGLIGHT/Rear Hatch Switch

WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pry the lower edge of the foglight/rear hatch switch to release locking tab. See Fig 1. Disconnect electrical connectors and remove switch. To install, reverse removal procedure.

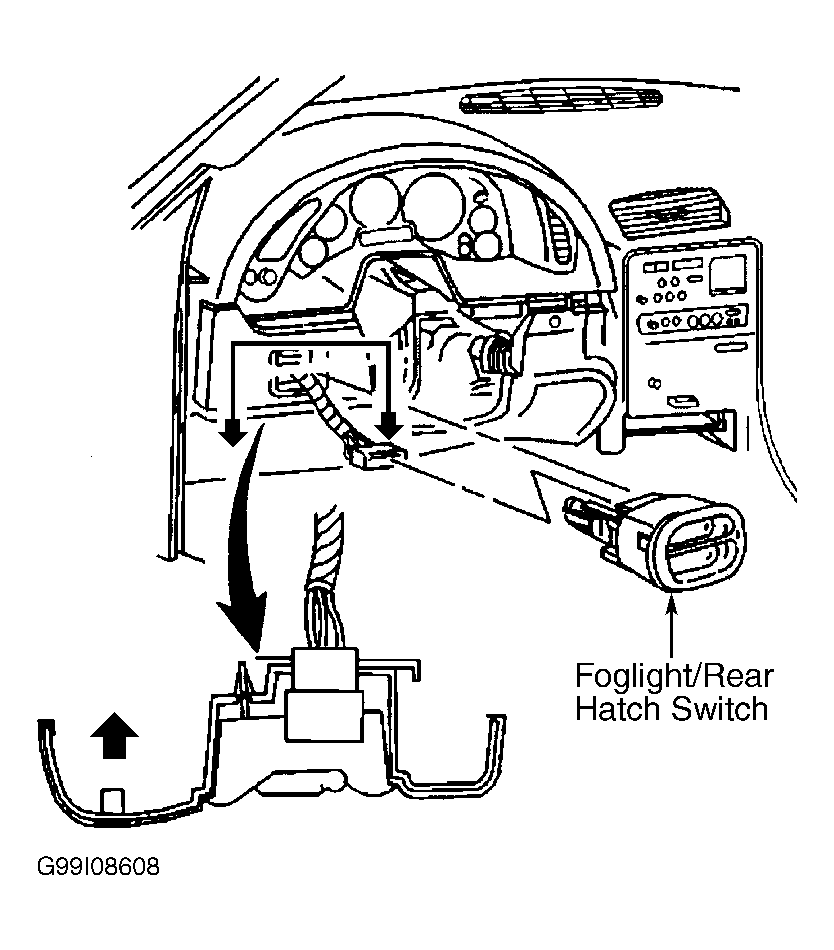

Fig 1: Removing Foglight/Rear Hatch Switch
G99I08608Courtesy of GENERAL MOTORS CORP.
