SERVICE MANUAL UPDATE FOR 2000 AND 2001 S SERIES BODY/ELECTRICAL VOLUME II SERVICE MANUAL DUE TO REVISION CHANGES IN CIRCUIT FUNCTION OF CONNECTORS
TECHNICAL SERVICE BULLETIN
Reference Number(s): 00-T-67, Date of Issue:
01/02/2003
Superceded Bulletin(s): 00-T-67
| SATURN: | 2000 and 2001 S-Series Vehicles |
| SECTION: | Electrical |
SUBJECT
Service Manual Update for 2000/2001 S-Series Body/Electrical Volume II Service Manual Due to revision changes in Circuit Function of connectors, this bulletin has been revised and supersedes bulletin 00-T-67, which should be discarded.
MODELS AFFECTED
2000 - 2001 Saturn S-Series vehicles
PURPOSE
The purpose of this bulletin is to update the 2000/2001 Body Electrical Volume II Service Manual at your location.
Please obtain all 2000/2001 Body/Electrical Volume II Service Manuals at your location and make the necessary updates as indicated below.
- Cross out page 384 with a marker or pen because the connector is not used.
- Cross out pages 468-473 with a marker or pen.
- Remove this top page from the staple in the upper corner of this bulletin.
- Insert the remaining pages of this bulletin between pages 468 and 469.
IMPORTANT:
Due to material supply during production, S-Series vehicles may have 1st and/or 2nd design connectors and wiring. Carefully inspect all head curtain restraint harness connectors and wiring to determine the correct wiring configuration.
HARNESS CONNECTOR FACES
Sensing and Diagnostic Module (SDM) 1st Design - 15357036
See Fig 1 .
SENSING AND DIAGNOSTIC MODULE (SDM) 1ST DESIGN - 15357036
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| 1 | DK GRN | 2105 | .50 | Left Curtain Inflator Module -- HI |
| 2 | BRN | 2106 | .50 | Left Curtain Inflator Module -- LO |
| 3 | DK BLU | 2104 | .50 | Right Curtain Inflator Module -- LO |
| 4 | GRA | 2103 | .50 | Right Curtain Inflator Module -- HI |
| 5 | PPL | 2107 | .50 | Left Side Impact Sensor |
| 6 | YEL | 2131 | .50 | Left Side Impact Sensor - Return |
| 7 | TAN | 2133 | .50 | Right Side Impact Sensor - Return |
| 8 | BLK | 2108 | .50 | Right Side Impact Sensor |
Location: Under Console.
Probe: Brown.
Tool: 12031876 - 1/J-38125-13A.
Sensing and Diagnostic Module (SDM) 2nd Design - 15357036
See Fig 1 .
SENSING AND DIAGNOSTIC MODULE (SDM) 2ND DESIGN - 15357036
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| 1 | BRN | 2137 | .50 | Left Curtain Inflator Module -- HI |
| 2 | YEL/BLK | 2138 | .50 | Left Curtain Inflator Module -- LO |
| 3 | LT GRN | 2136 | .50 | Right Curtain Inflator Module -- LO |
| 4 | BLK/WHT | 2135 | .50 | Right Curtain Inflator Module -- HI |
| 5 | YEL | 2131 | .50 | Left Side Impact Sensor |
| 6 | WHT | 2132 | .50 | Left Side Impact Sensor - Return |
| 7 | DK GRN | 2134 | .50 | Right Side Impact Sensor - Return |
| 8 | TAN | 2133 | .50 | Right Side Impact Sensor |
Location: Under Console.
Probe: Brown.
Tool 12031876-1-J-38125-13A.

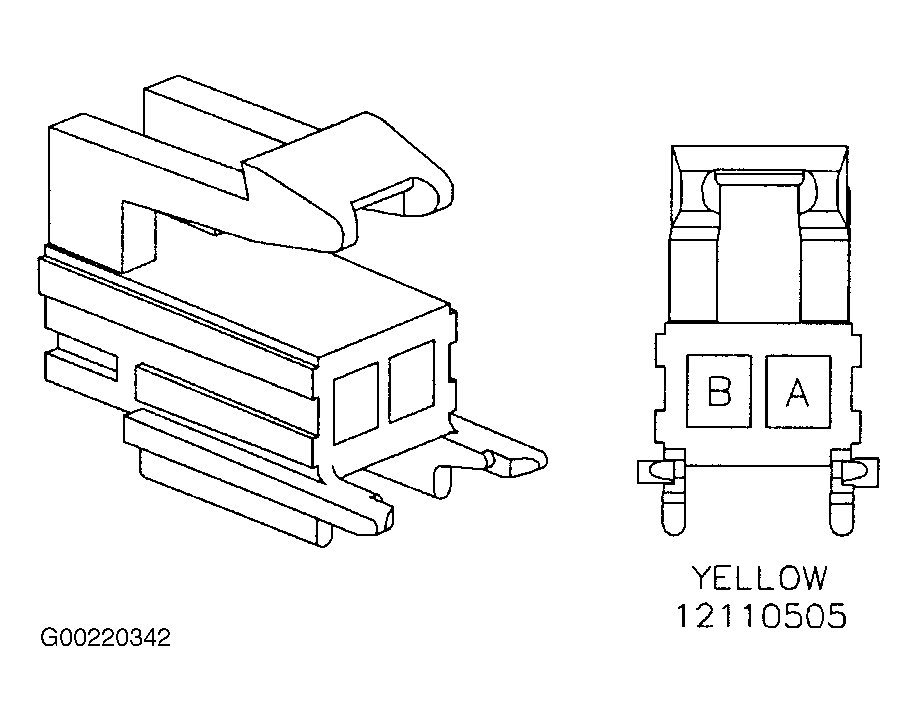

SIAB Inflator Connector 1st Design - 12110505
See Fig 2 .
SIAB INFLATOR CONNECTOR 1ST DESIGN - 12110505
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | DK GRN GRA | 2105 2103 | .50 | SDM To Left Curtain Inflator-HI, SDM To Right Curtain Inflator-HI |
| B | BRN DK BLU | 2106 2104 | .50 | SDM To Left Curtain Inflator-LO, SDM To Right Curtain Inflator-LO |
Location: Under I/P Upper Trim Panel.
Probe: Gray.
Tool 12094429/J-38125-12A.
SIAB Inflator Connector 2nd Design - 12110505
See Fig 2 .
SIAB INFLATOR CONNECTOR 2ND DESIGN - 12110505
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | BRN BLK/WHT | 2137 2135 | .50 | SDM To Left Curtain Inflator-HI SDM To Right Curtain Inflator-HI |
| B | YEL/BLK LT GRN | 2138 2136 | .50 | SDM To Left Curtain Inflator-LO SDM To Right Curtain Inflator-LO |
Location: Under I/P Upper Trim Panel.
Probe: Gray.
Tool 12094429/J-38125-12A.
Side Impact Sensor Connector Inline 1st Design - Sedan/Wagon - 12065651
See Fig 3 .
SIDE IMPACT SENSOR CONNECTOR INLINE 1ST DESIGN - SEDAN/WAGON - 12065651
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | TAN YEL | 2133 2131 | .50 | Right Side Impact Sensor Inline-SDM Return Left Side Impact Sensor Inline-SDM Return |
| B | BLK PPL | 2108 2107 | .50 | Right Side Impact Sensor Inline-SDM Left Side Impact Sensor Inline-SDM |
Location: Lower B-Pillar.
Probe: Gray.
Tool: 12094429/J-38125-12A.
Side Impact Sensor Connector Inline 2nd Design - Sedan/Wagon - 12065651
See Fig 3 .
SIDE IMPACT SENSOR CONNECTOR INLINE 2ND DESIGN - SEDAN/WAGON - 12065651
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | DK GRN WHT | 2138 2132 | .50 | Right Side Impact Sensor Inline-SDM Return Left Side Impact Sensor Inline-SDM Return |
| B | TAN YEL | 2133 2131 | .50 | Right Side Impact Sensor Inline-SDM Left Side Impact Sensor Inline-SDM |
Location: Lower B-Pillar.
Probe: Gray.
Tool: 12094429/J-38125-12A.
Side Impact Sensor Connector Inline 1st Design - Sedan/Wagon - 12052832
See Fig 4 .
SIDE IMPACT SENSOR CONNECTOR INLINE 1ST DESIGN - SEDAN/WAGON - 12052832
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | TAN YEL | 2133 2131 | .50 | Right Side Impact Sensor Inline-SDM Return Left Side Impact Sensor Inline-SDM Return |
| B | BLK PPL | 2108 2107 | .50 | Right Side Impact Sensor Inline-SDM Left Side Impact Sensor Inline-SDM |
Location: Lower B-Pillar.
Probe: Gray.
Tool: 12094429/J-38125-12A.
Side Impact Sensor Connector Inline 2nd Design - Sedan/Wagon - 12052832
See Fig 4 .
SIDE IMPACT SENSOR CONNECTOR INLINE 2ND DESIGN - SEDAN/WAGON - 12052832
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | DK GRN WHT | 2138 2132 | .50 | Right Side Impact Sensor Inline-SDM Return Left Side Impact Sensor Inline-SDM Return |
| B | TAN YEL | 2133 2131 | .50 | Right Side Impact Sensor Inline-SDM Left Side Impact Sensor Inline-SDM |
Location: Lower B-Pillar.
Probe: Gray.
Tool: 12094429/J-38125-12A.

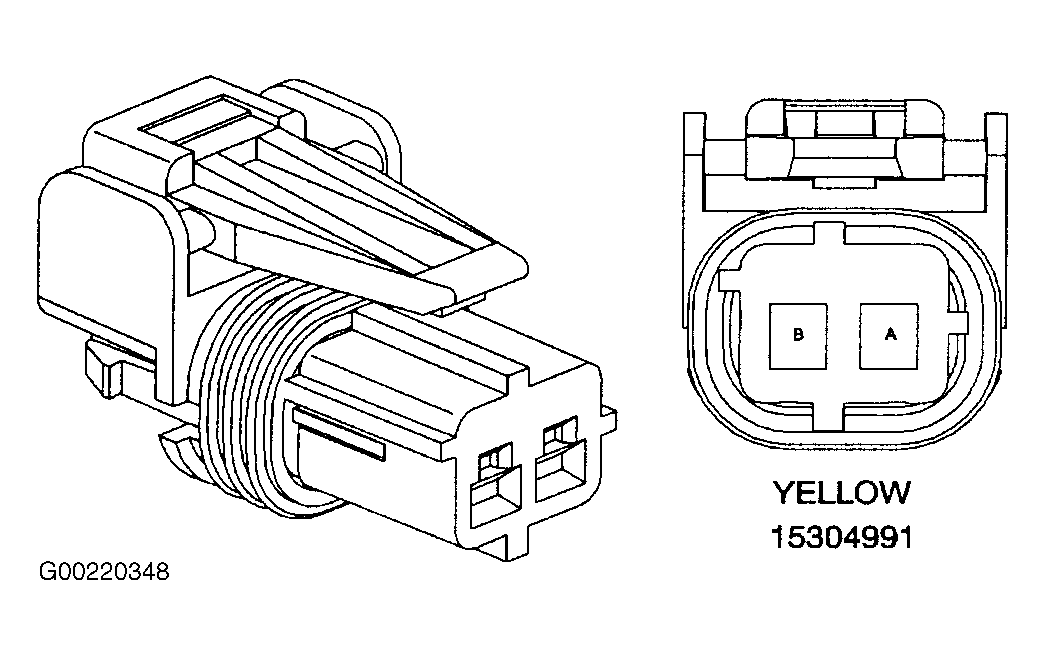

Side Impact Sensor 1st Design - 15304991
See Fig 5 .
SIDE IMPACT SENSOR 1ST DESIGN - 15304991
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | TAN | 2133 | .50 | Right Side Impact Sensor-SDM Return |
| B | BLK | 2108 | .50 | Right Side Impact Sensor-SDM |
Location: On B-Pillar for Sedan and Wagon.
Probe: Gray.
Tool: 12094429/J-38125-12A.
LEFT SIDE IMPACT SENSOR 1ST DESIGN - SEDAN/WAGON - 15304991
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | YEL | 2131 | .50 | Left Side Impact Sensor-SDM Return |
| B | PPL | 2107 | .50 | Left Side Impact Sensor-SDM |
Location: On B-Pillar for Sedan and Wagon.
Probe: Gray.
Tool: 12094429/J-38125-12A.
Side Impact Sensor 2nd Design - 15304991
See Fig 5 .
SIDE IMPACT SENSOR 2ND DESIGN - 15304991
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | DK GRN | 2134 | .50 | Right Side Impact Sensor-SDM Return |
| B | TAN | 1233 | .50 | Right Side Impact Sensor-SDM |
Location: On B-Pillar for Sedan and Wagon.
Probe: Gray.
Tool: 12094429/J-38125-12A.
LEFT SIDE IMPACT SENSOR 2ND DESIGN - SEDAN/WAGON - 15304991
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | WHT | 2132 | .50 | Left Side Impact Sensor-SDM Return |
| B | YEL | 2131 | .50 | Right Side Impact Sensor-SDM |
Location: On B-Pillar for Sedan and Wagon.
Probe: Gray.
Tool: 12094429/J-38125-12A.

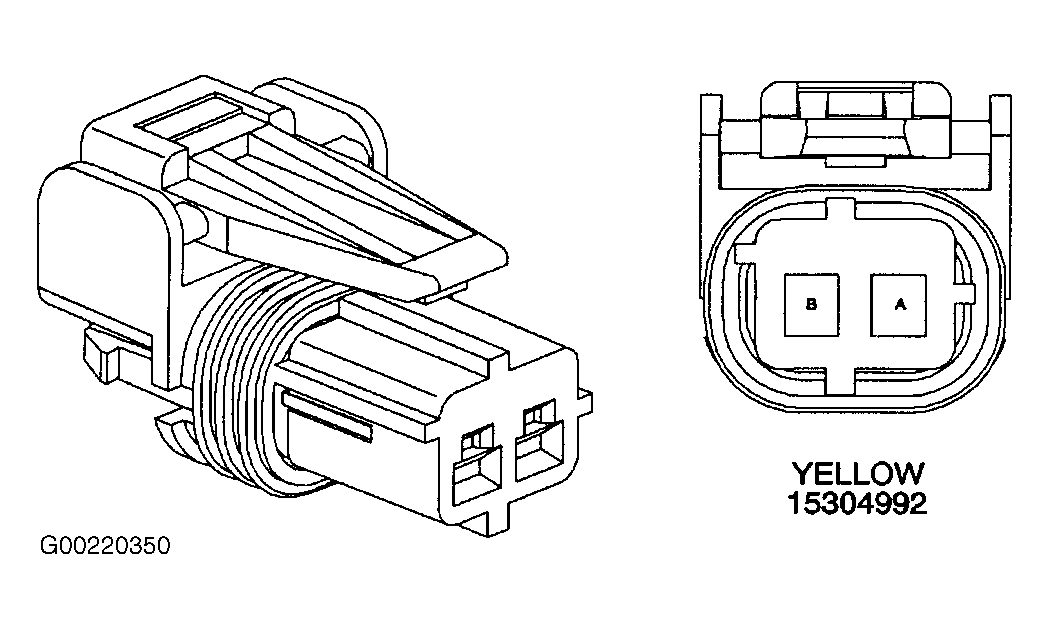

Side Impact Sensor 1st Design - Coupe - 15304992
See Fig 6 .
SIDE IMPACT SENSOR 1ST DESIGN - COUPE - 15304992
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | TAN | 2133 | .50 | Right Side Impact Sensor-SDM return |
| B | BLK | 2108 | .50 | Right Side Impact Sensor-SDM |
Location: In Right Door.
Probe: Gray.
Tool: 12094429/J-38125-12A.
Side Impact Sensor 2nd Design - Coupe - 15304992
See Fig 6 .
SIDE IMPACT SENSOR 2ND DESIGN - COUPE - 15304992
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | DK GRN | 2134 | .50 | Right Side Impact Sensor-SDM Return |
| B | TAN | 2133 | .50 | Right Side Impact Sensor-SDM |
Location: In Right Door.
Probe: Gray.
Tool: 12094429/J-38125-12A.

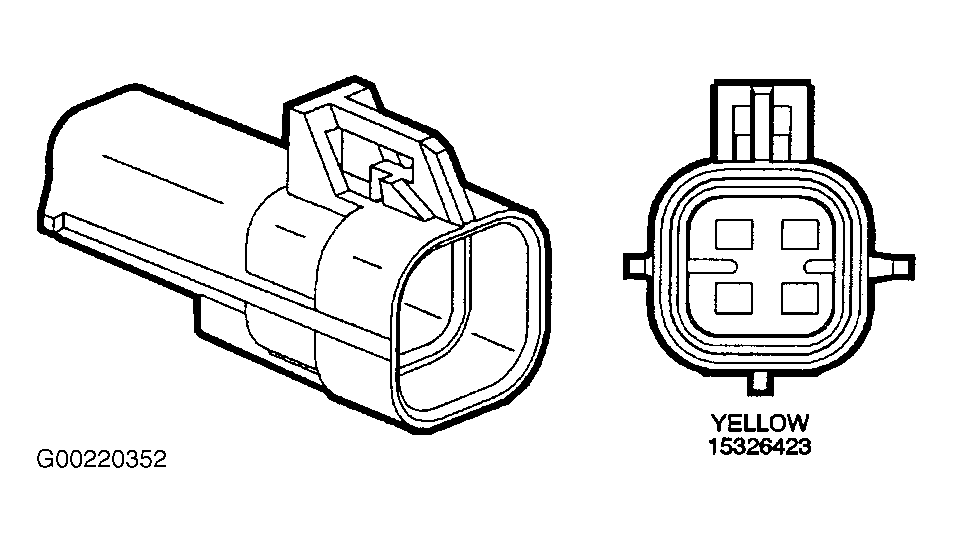

Side Impact Sensor Inline - To Body Harness 1st Design - Coupe - 15326423
See Fig 7 .
SIDE IMPACT SENSOR INLINE - TO BODY HARNESS 1ST DESIGN - COUPE - 15326423
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | YEL | 2131 | .50 | Left Side Impact Sensor Inline-SDM Return |
| B | PPL | 2107 | .50 | Left Side Impact Sensor Inline-SDM |
| C | TAN | 2133 | .50 | Right Side Impact Sensor Inline-SDM Return |
| D | BLK | 2108 | .50 | Right Side Impact Sensor Inline-SDM |
Side Impact Sensor Inline - To Body Harness 2nd Design - Coupe - 15326423
See Fig 7 .
SIDE IMPACT SENSOR INLINE - TO BODY HARNESS 2ND DESIGN - COUPE - 15326423
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | WHT | 2132 | .50 | Left Side Impact Sensor Inline-SDM Return |
| B | YEL | 2131 | .50 | Left Side Impact Sensor Inline-SDM |
| C | DK GRN | 2134 | .50 | Right Side Impact Sensor Inline-SDM Return |
| D | TAN | 2133 | .50 | Right Side Impact Sensor Inline-SDM |
Side Impact Sensor Inline - To Body Harness 1st Design - Coupe - 12176897
See Fig 7 .
SIDE IMPACT SENSOR INLINE - TO BODY HARNESS 1ST DESIGN - COUPE - 12176897
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | YEL | 2131 | .50 | Left Side Impact Sensor Inline-SDM Return |
| B | PPL | 2107 | .50 | Left Side Impact Sensor Inline-SDM |
| C | TAN | 2133 | .50 | Right Side Impact Sensor Inline-SDM Return |
| D | BLK | 2108 | .50 | Right Side Impact Sensor Inline-SDM |
Side Impact Sensor Inline - To Body Harness 2nd Design - Coupe - 12176897
See Fig 7 .
SIDE IMPACT SENSOR INLINE - TO BODY HARNESS 2ND DESIGN - COUPE - 12176897
| Cavity | Wire Color | Circuit Number | Wire Size | Circuit Function |
|---|---|---|---|---|
| A | WHT | 2132 | .50 | Left Side Impact Sensor Inline-SDM Return |
| B | YEL | 2131 | .50 | Left Side Impact Sensor Inline-SDM |
| C | DK GRN | 2134 | .50 | Right Side Impact Sensor Inline-SDM Return |
| D | TAN | 2133 | .50 | Right Side Impact Sensor Inline-SDM |
