Temperature Cable

REMOVAL




1. Remove control head. (Refer to "HVAC Control Head" removal procedure.)
2. Remove R/H console closeout panel.

CAUTION: HEATER CORE PIPES MAY BE HOT!

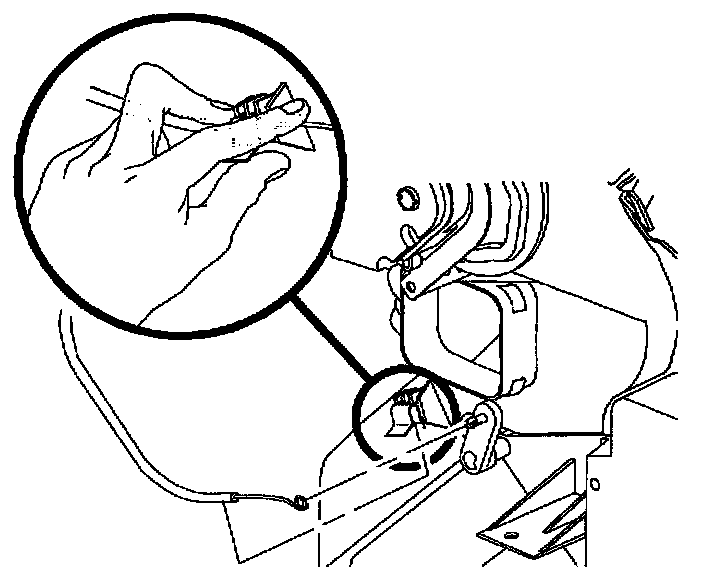

3. Remove cable from module retaining clip using first two fingers to pull outward on cable while using thumb to spread retaining clip.

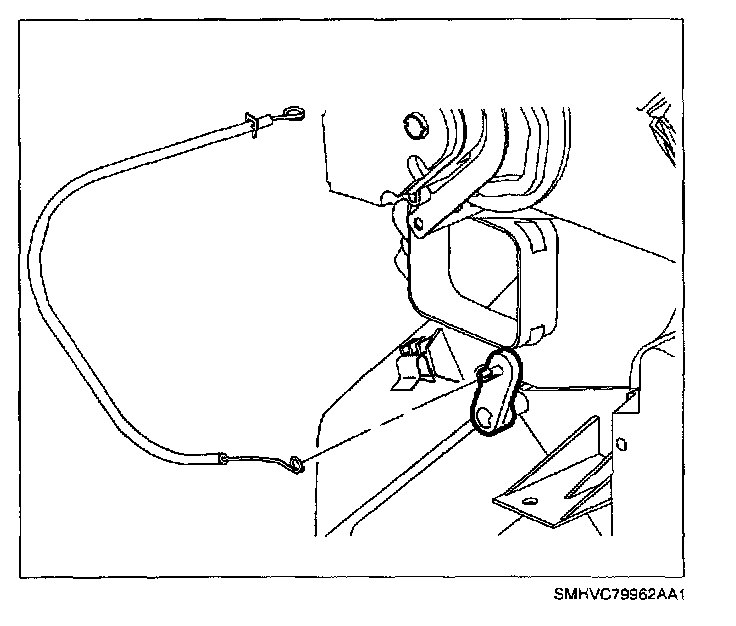

4. Remove cable from temperature door lever by squeezing end of pin and pulling cable eyelet outward.

INSTALLATION




1. Route new cable in through control head opening in I/P Cable housing flag goes to control head end.
2. Guide cable around outside of I/P support brace.

IMPORTANT: Do not install cable housing into retaining clip at this time.

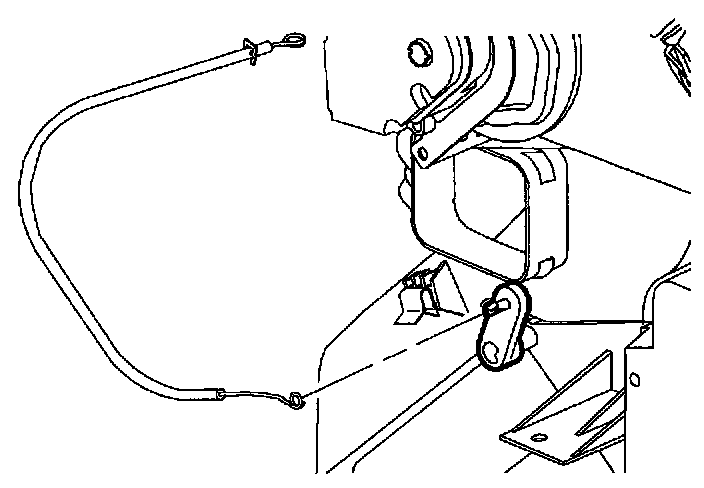

3. Install cable eyelet onto temperature door lever pin.
4. Install control head. (Refer to "HVAC Control Head" installation procedure.)
