Body Control Module

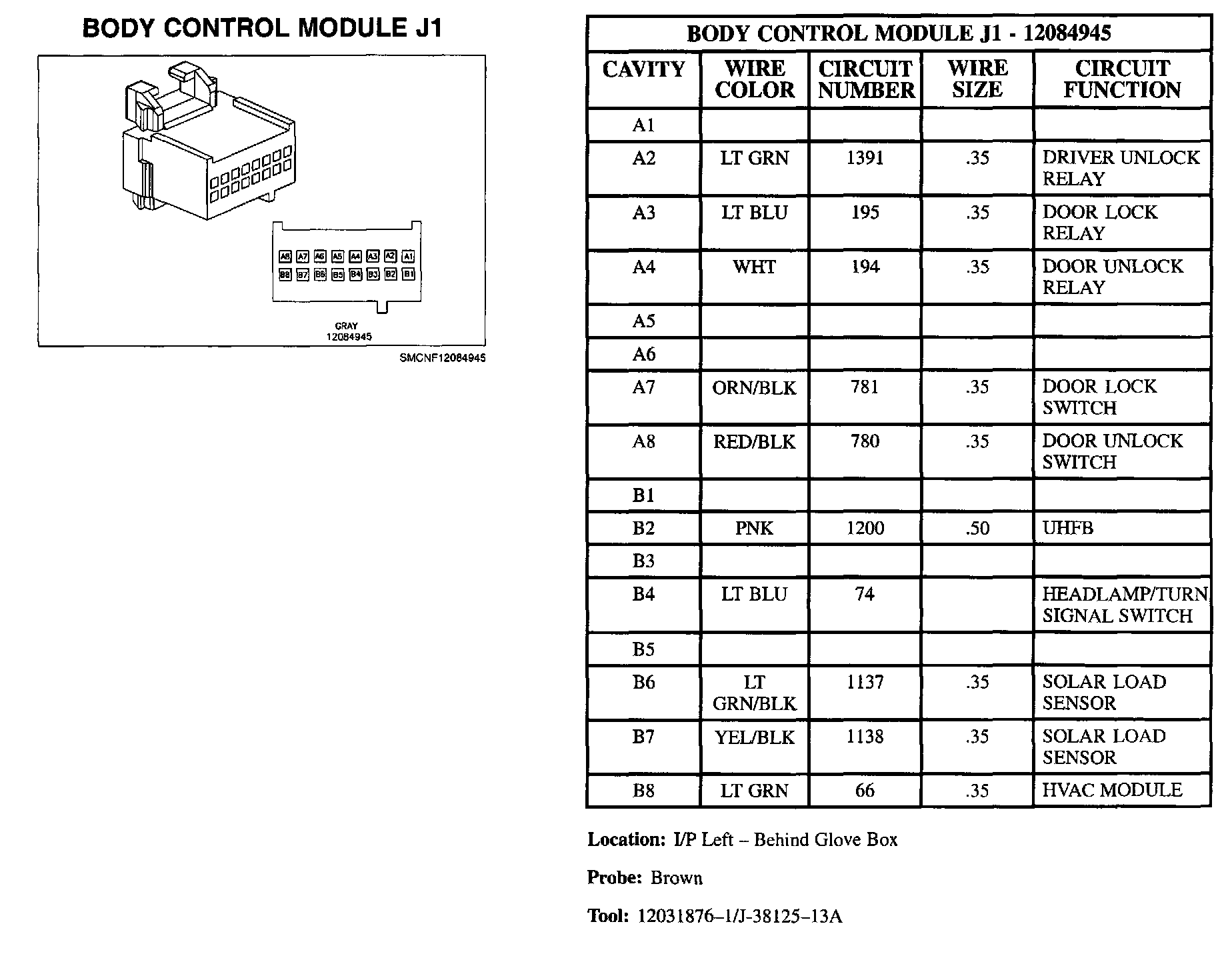

Body Control Module J1:

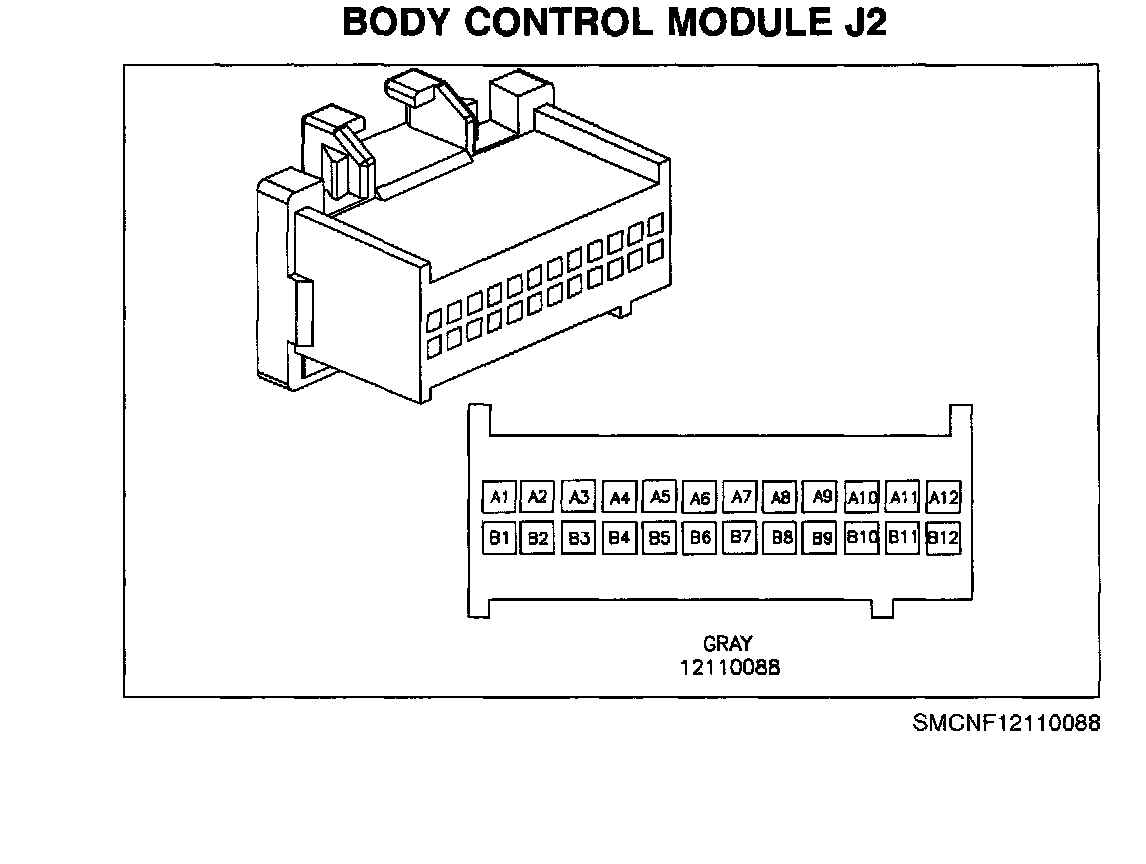

Body Control Module J2 Part 1:

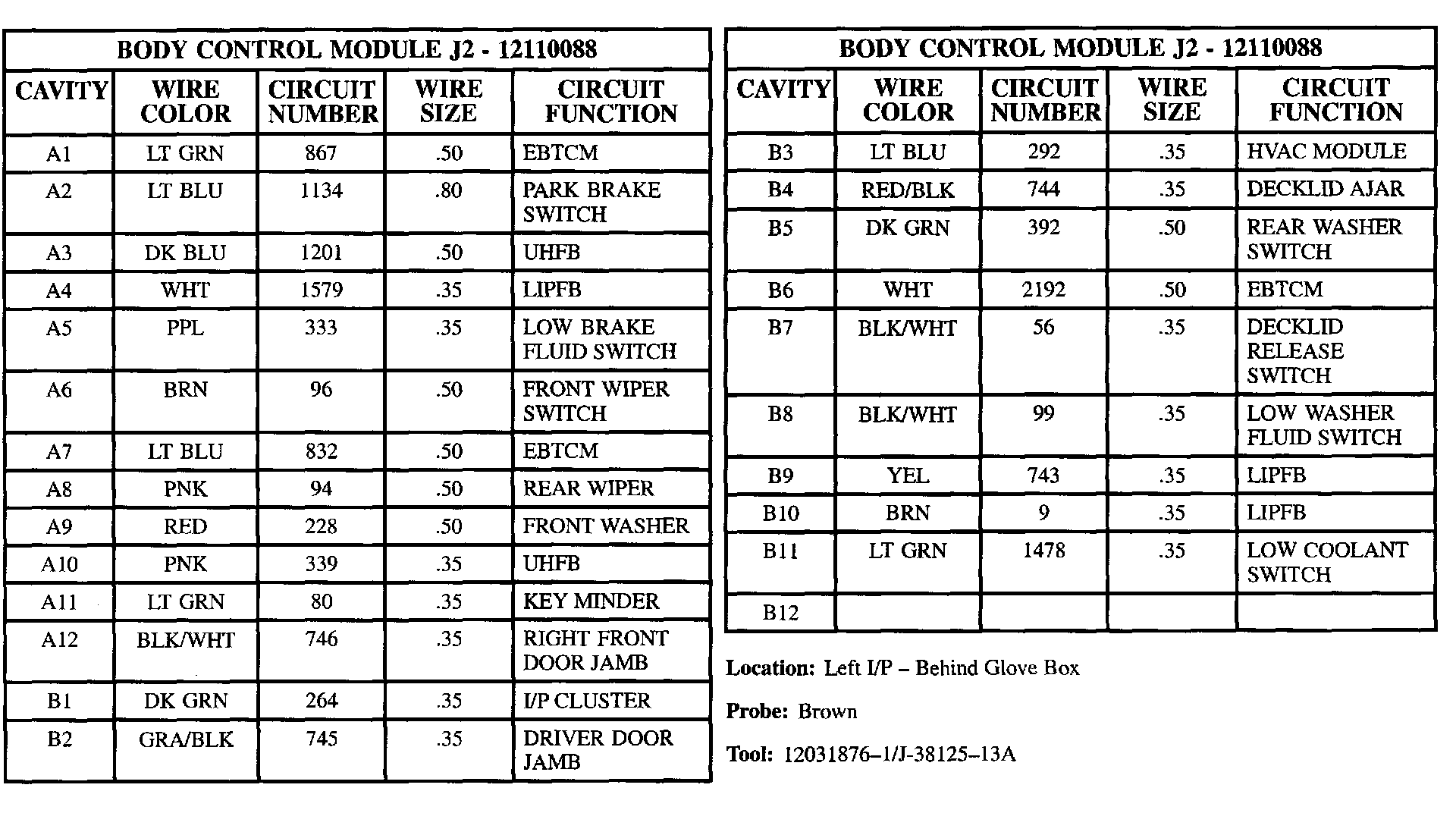

Body Control Module J2 Part 2:

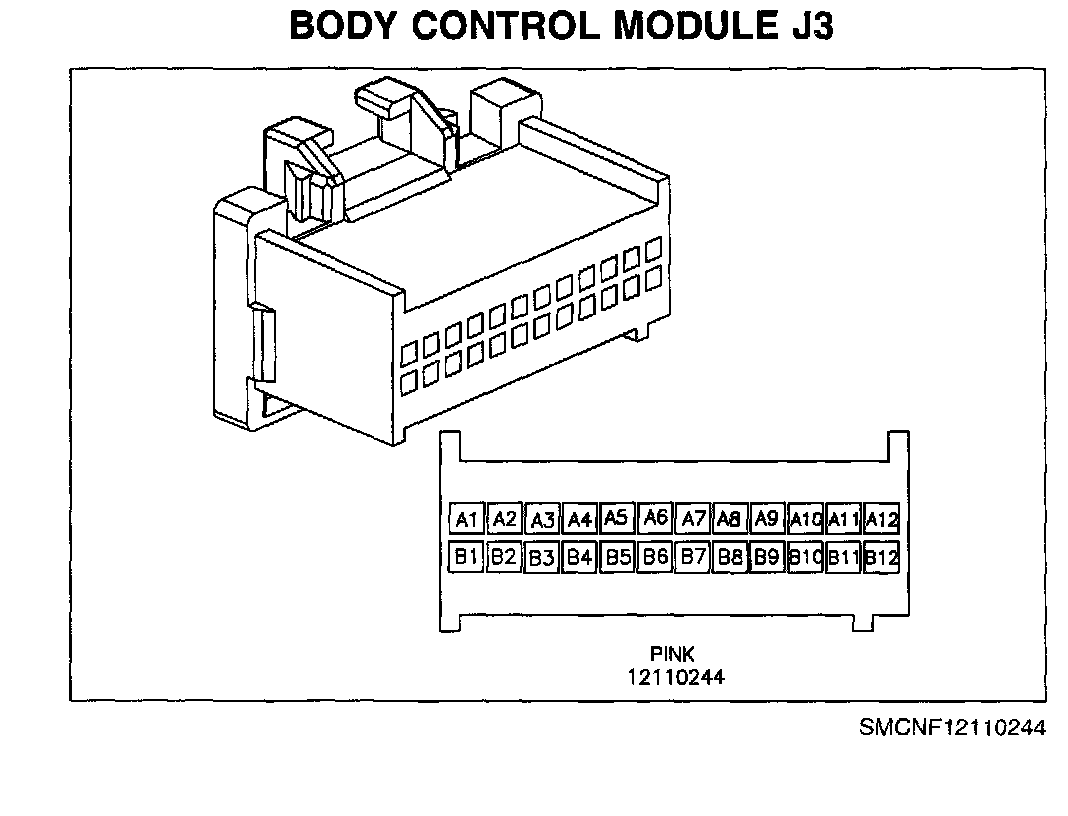

Body Control Module J3 Part 1:

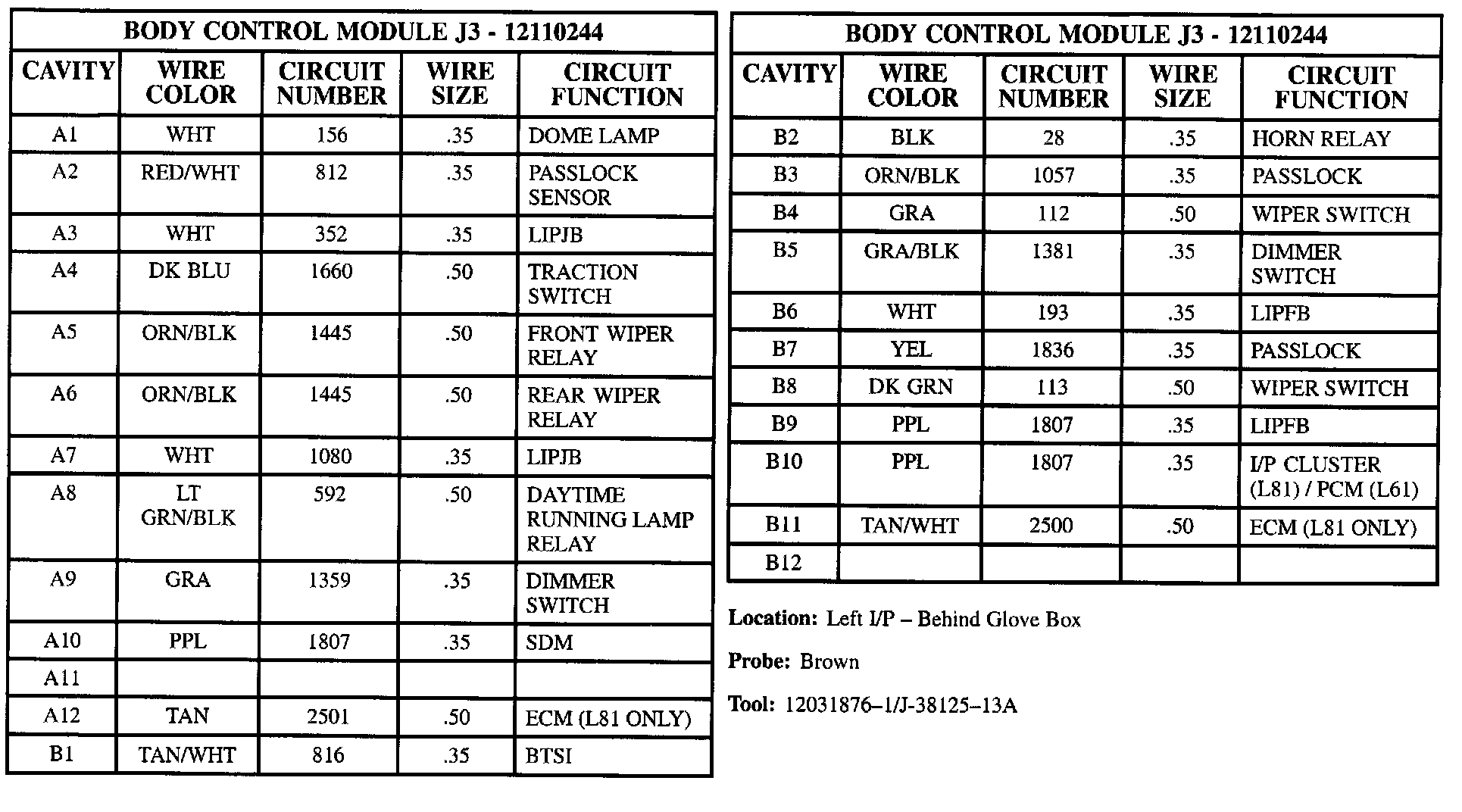

Body Control Module J3 Part 2:

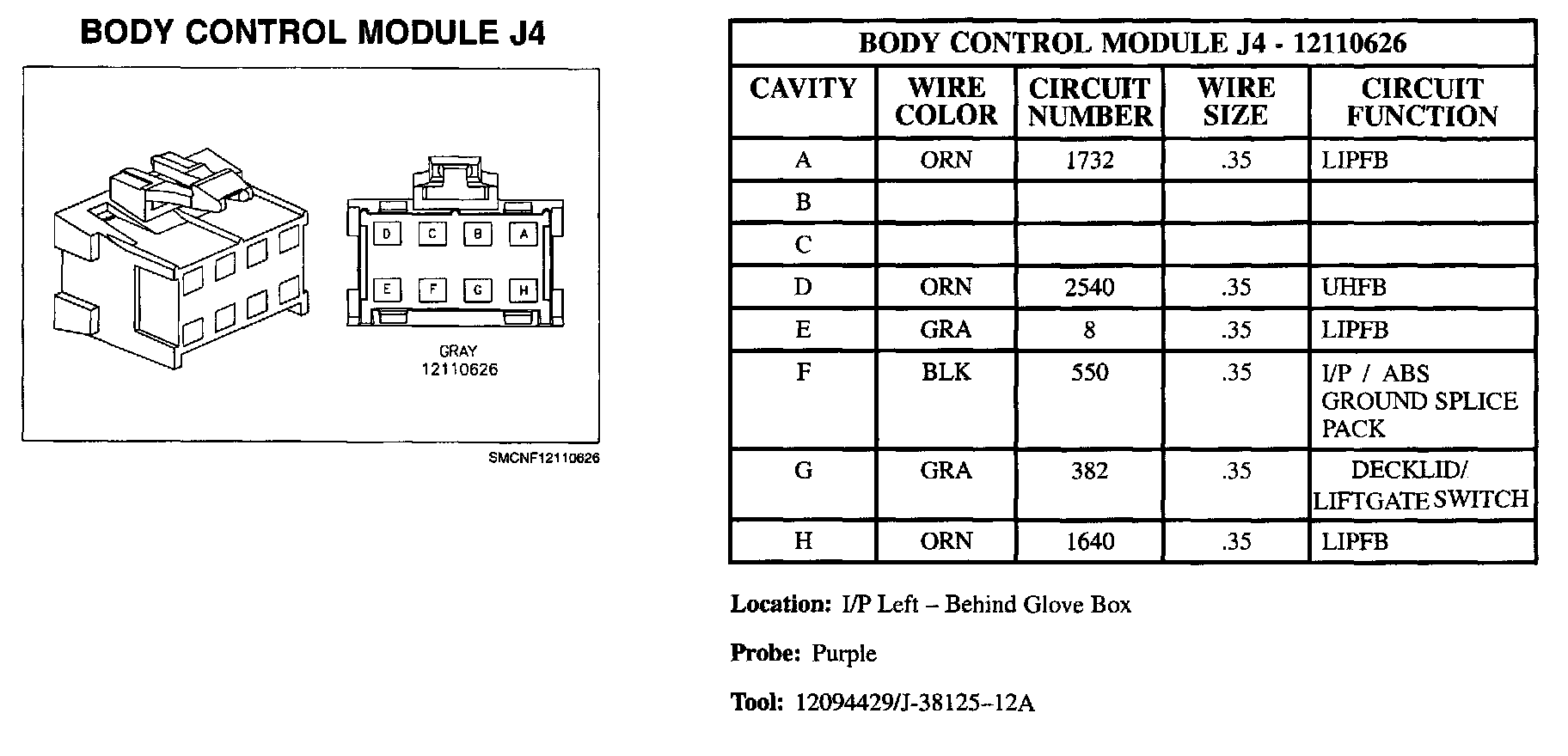

Body Control Module J4:
