Body Control Systems
BCM Connector Face Views Part 1:

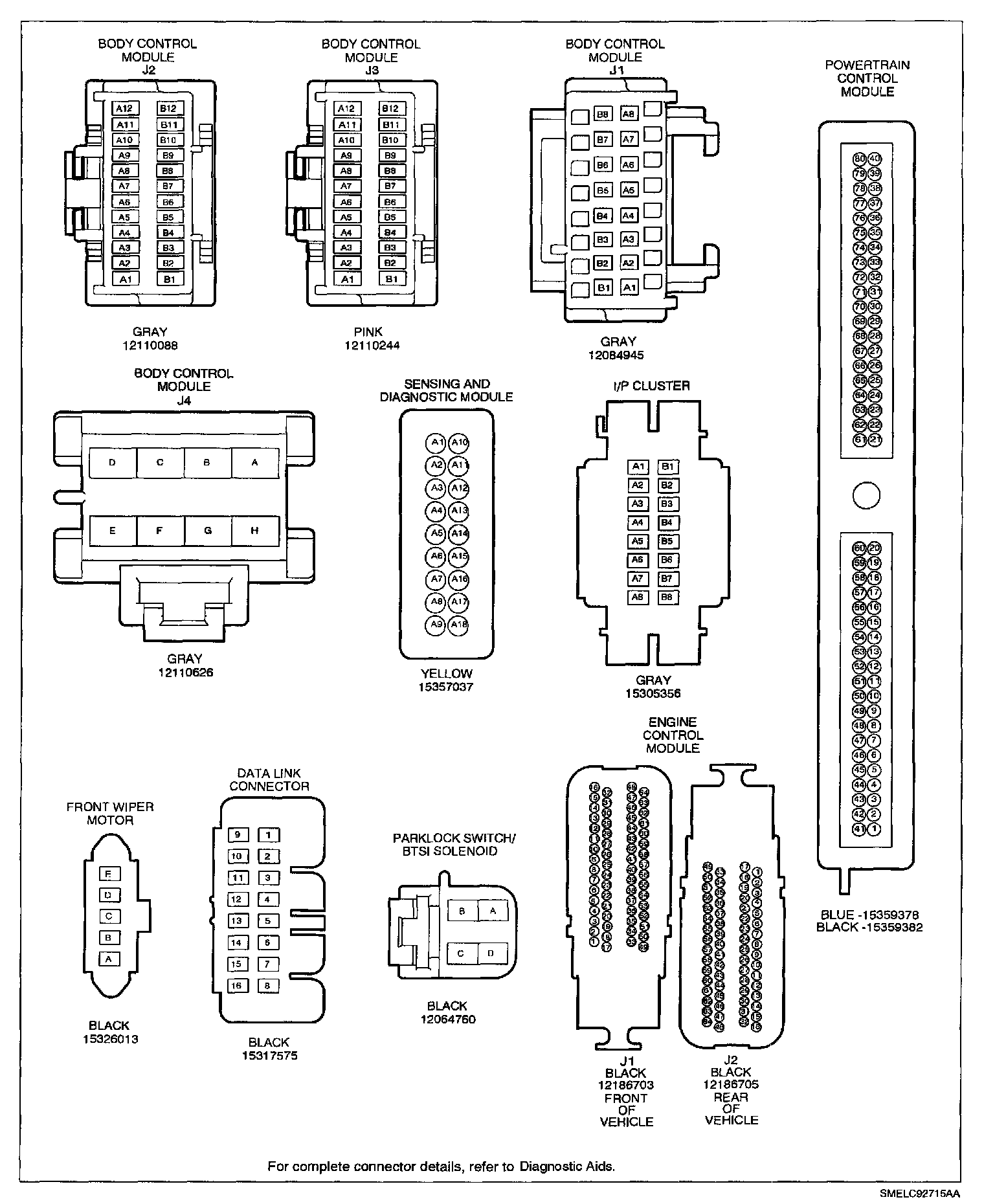

BCM Connector Face Views Part 2:
BCM Connector Face Views Part 3:
