Saturn
>>
2002
>>
L100 L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
J1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
J1

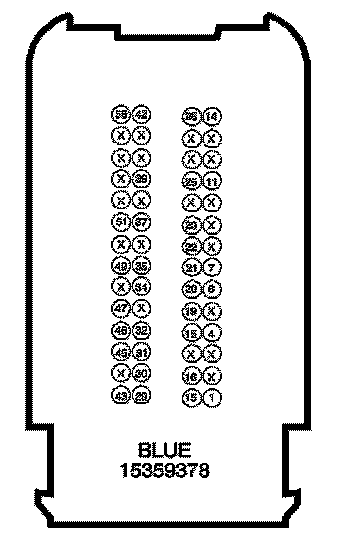

PCM J1 (L61):

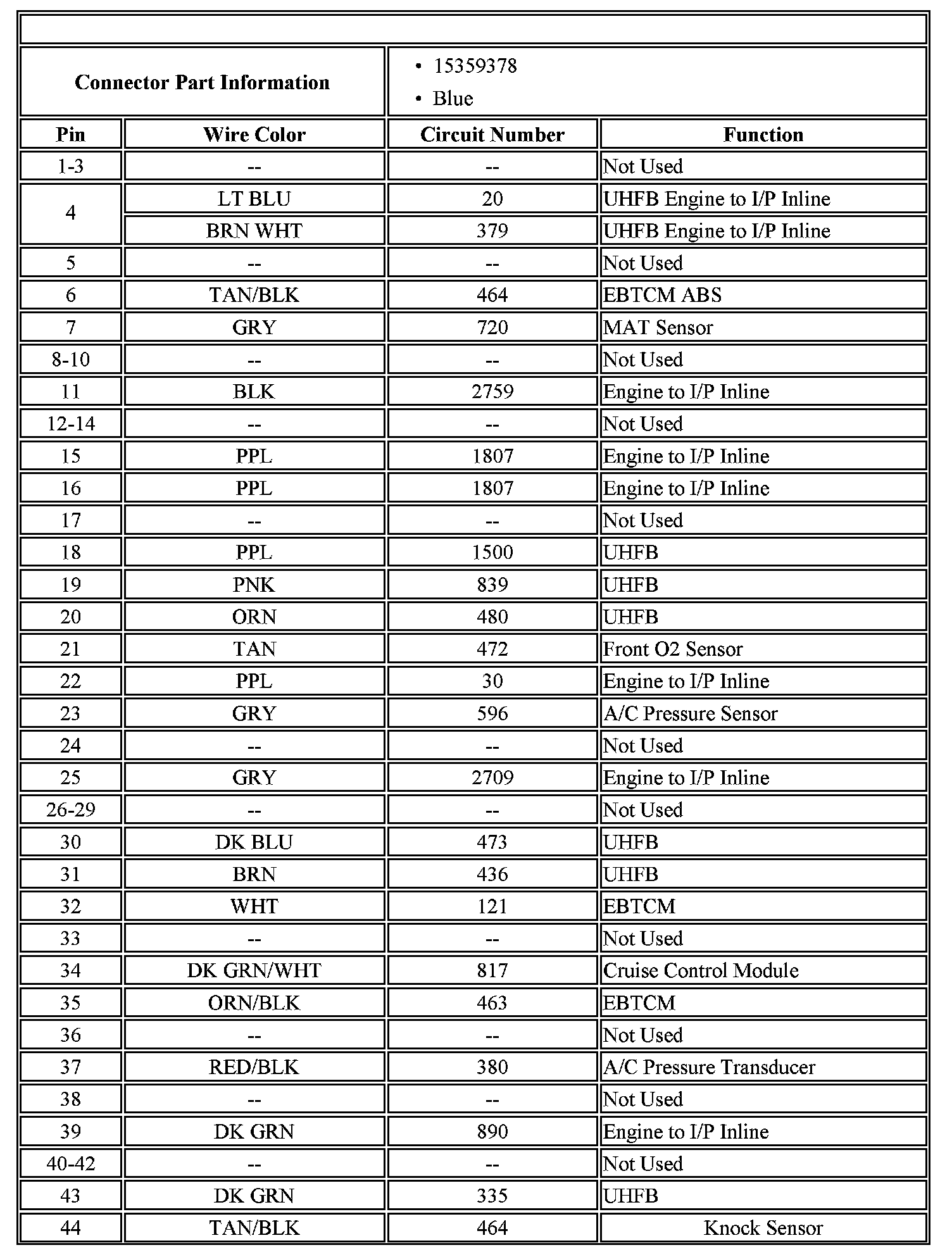

PCM J1 (L61):

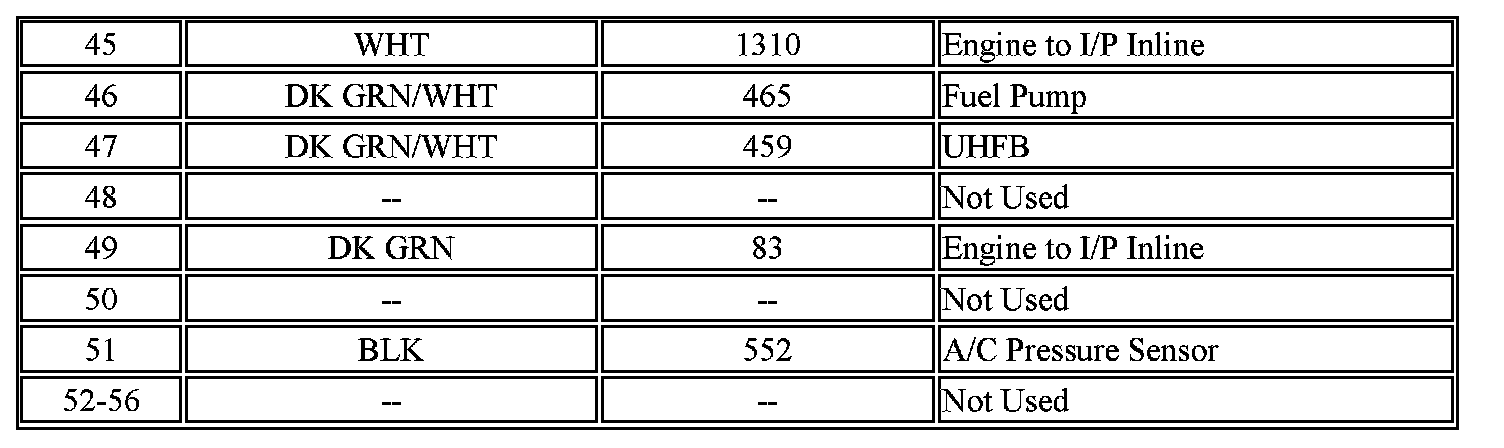

PCM J1 (L61):
