Automatic Transaxle System

CONNECTOR VIEWS

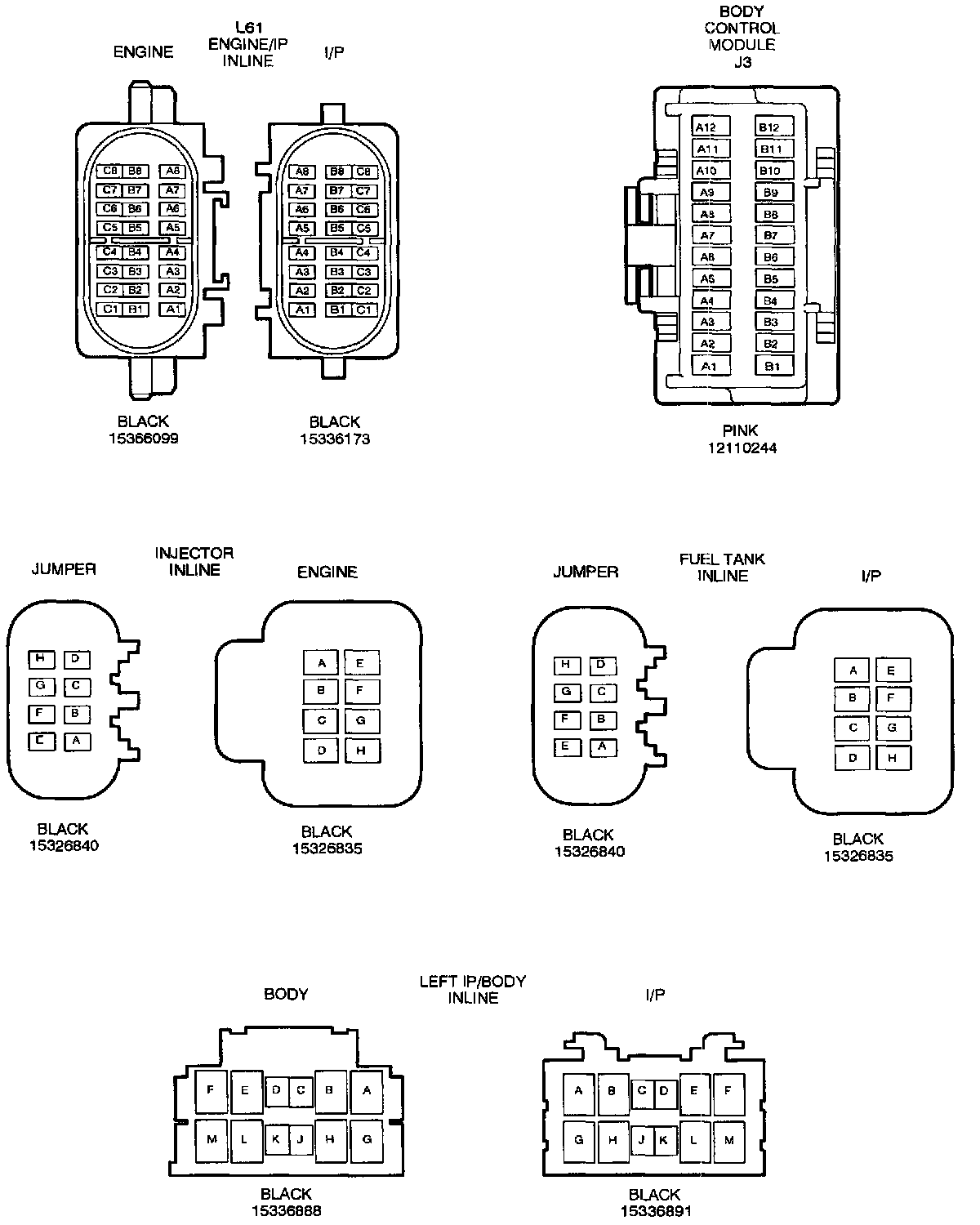

Part 1 of 5

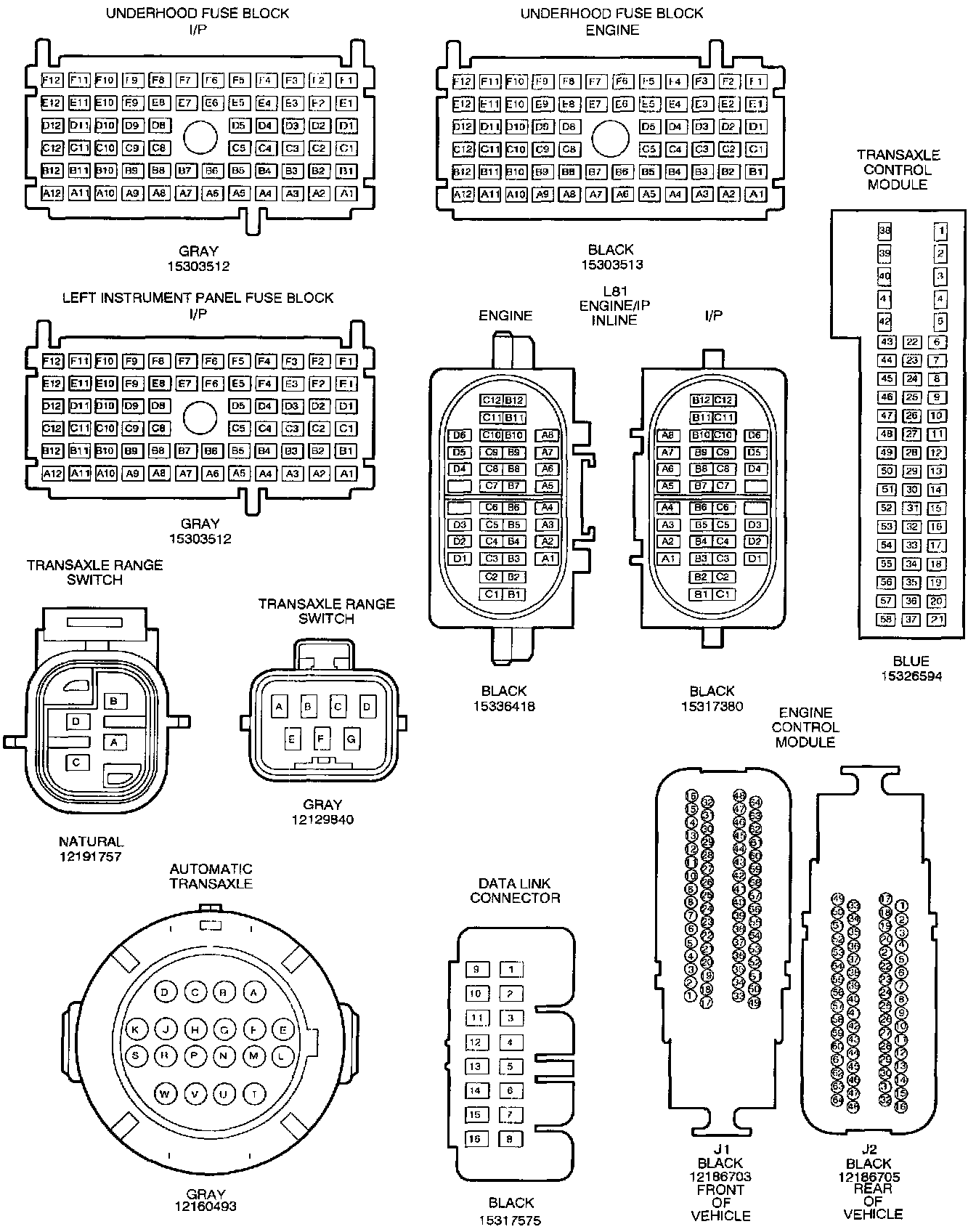

Part 2 of 5





Part 3 of 5

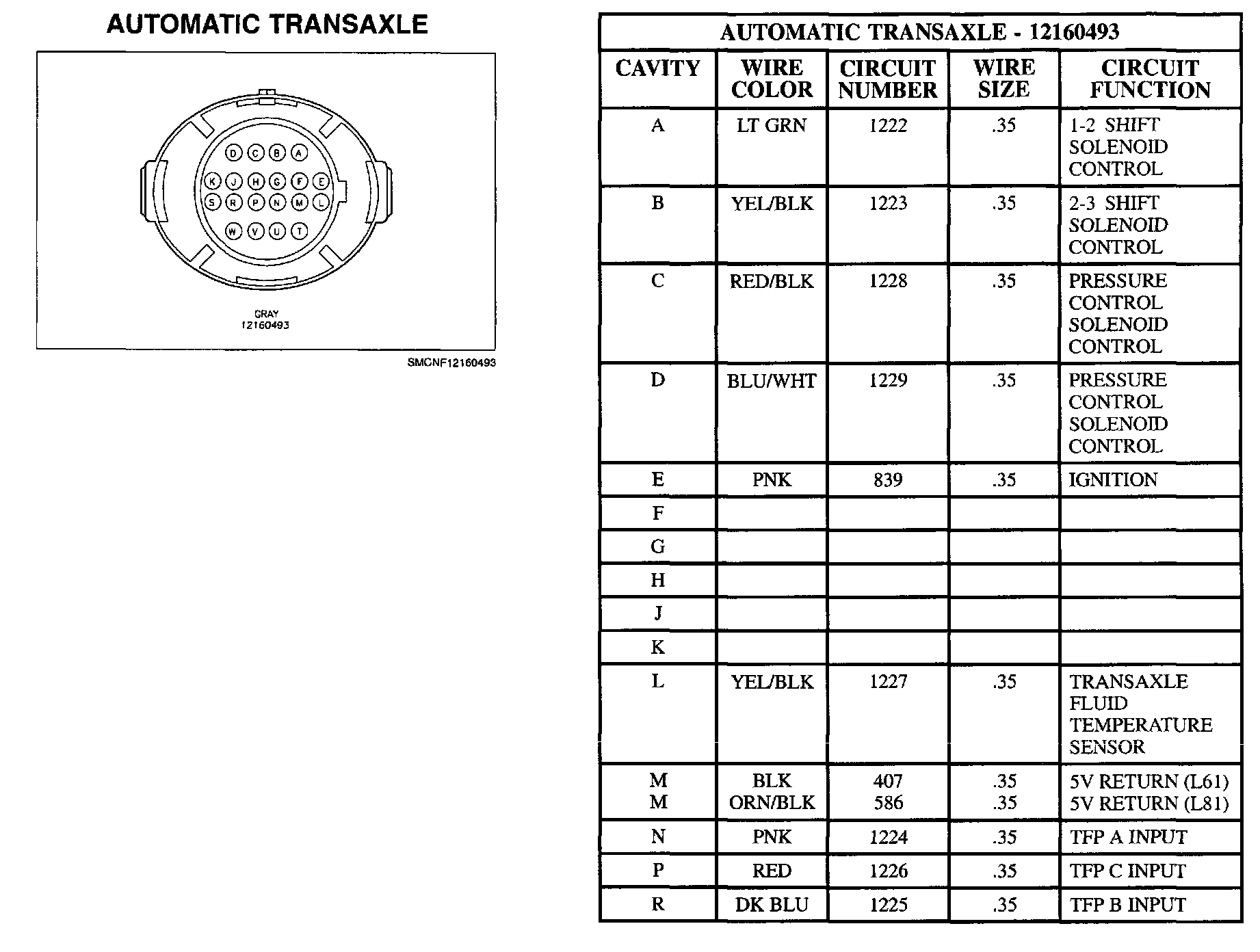

Automatic Transaxle Part 1:





Part 4 of 5

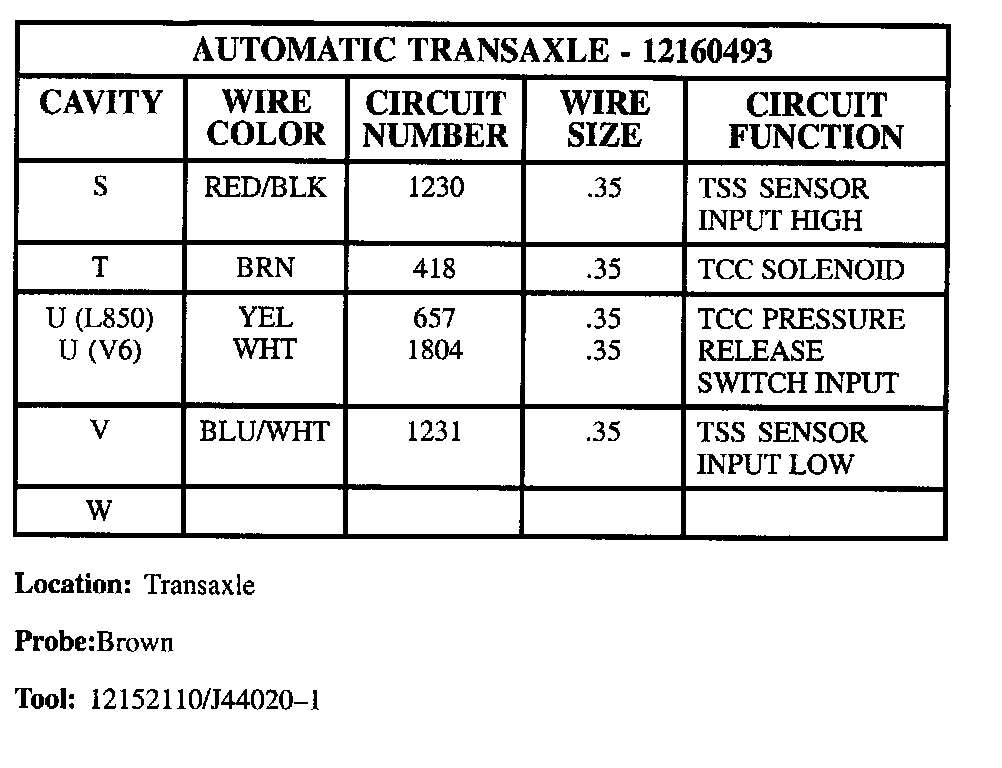

Automatic Transaxle Part 2:





Part 5 of 5

POWERTRAIN CONTROL MODULE (PCM) CONNECTOR FACE VIEWS





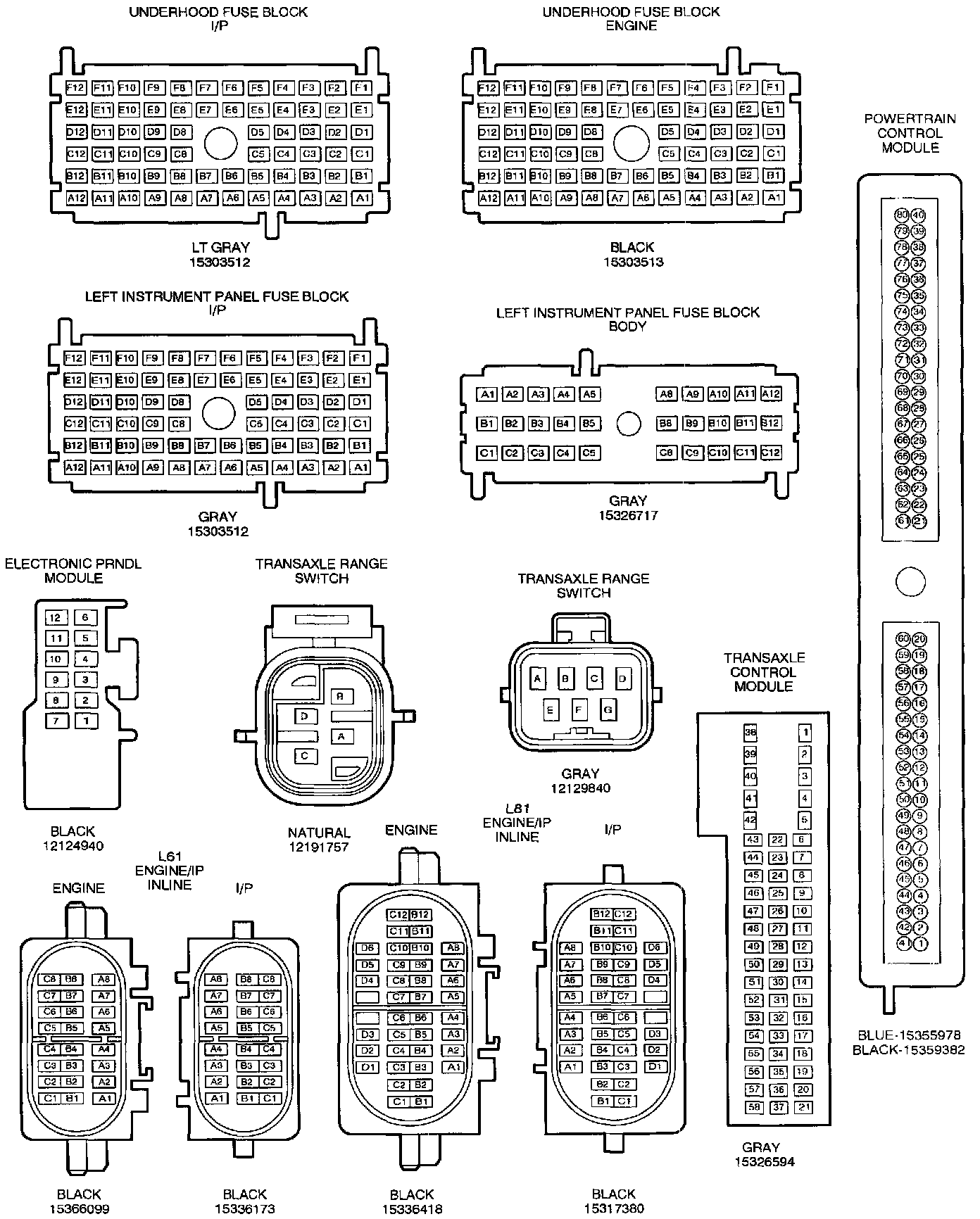

TRANSAXLE CONTROL MODULE (TCM) CONNECTOR FACE VIEWS





SHIFTER CONTROLS CONNECTOR FACE VIEWS
