Installation Procedure

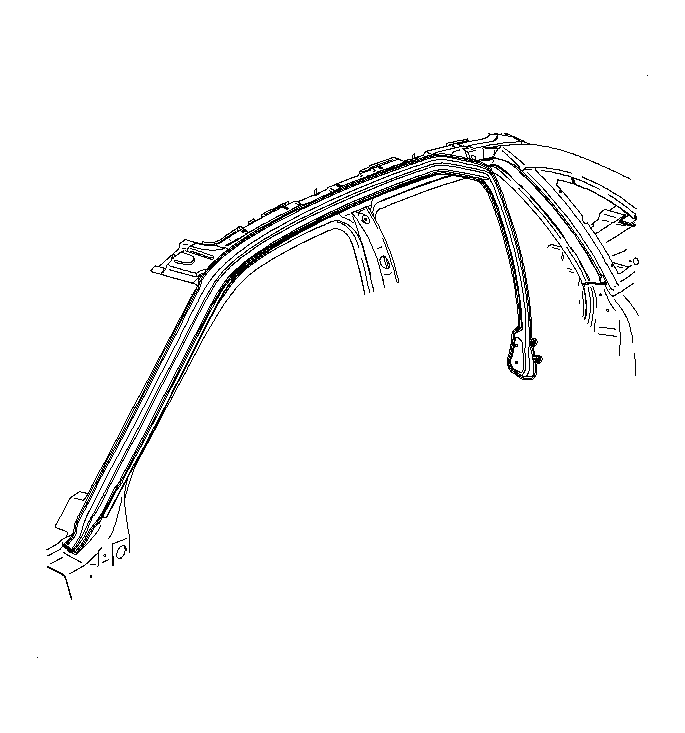

    Fig 1: Installing Roof Rail Weatherstrip
    GM893732Courtesy of GENERAL MOTORS CORP.
  1. Position the weatherstrip to the pinch-weld flange starting at the rear retainer holes.
  2. Install the weatherstrip push-in retainers pressing into place until fully seated.
  3. Install the weatherstrip push-in retainers pressing into place until fully seated.
  4. Close the doors and inspect the weatherstrip for proper fit.
