Removal Procedure

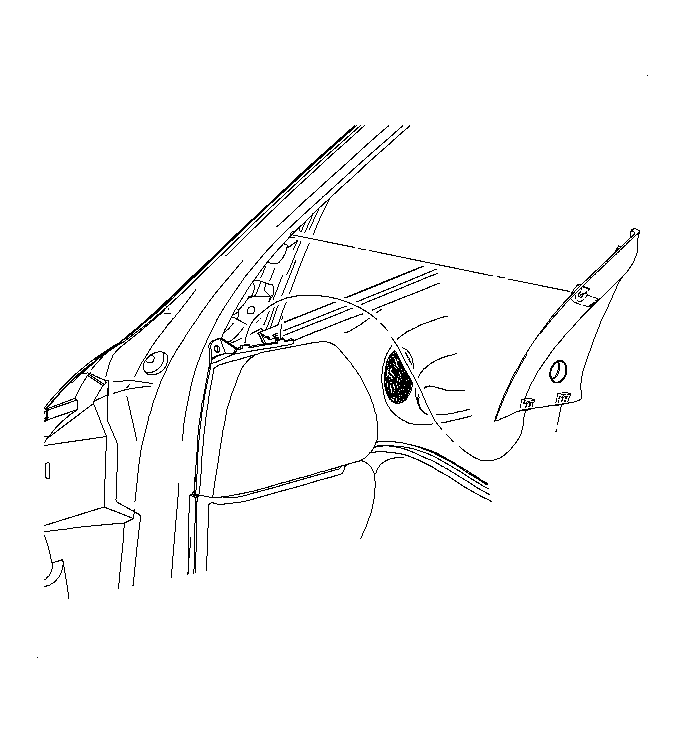

Fig 1: Removing & Installing Mirror Trim Cover

GM960459

Courtesy of GENERAL MOTORS CORP.

Remove the mirror trim cover by pulling out at the top.

Fig 2: Outside Rearview Mirror Insulator

GM459511

Courtesy of GENERAL MOTORS CORP.

Remove the foam filler.

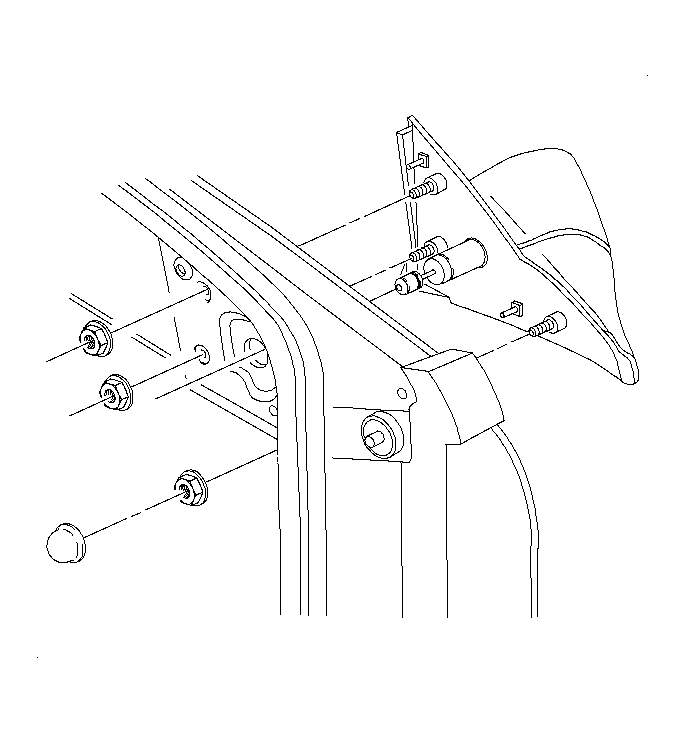

Fig 3: Removing & Installing Mirror Mounting Hardware

GM880065

Courtesy of GENERAL MOTORS CORP.

Remove the nuts from the mirror.
Remove the mirror from the door.
