Removal Procedure

  1. Using a flat-bladed tool, pry on the switch to disengage the clips.
  2. Remove the rear door pull handle. Refer to Pull Handle Replacement - Rear Door .

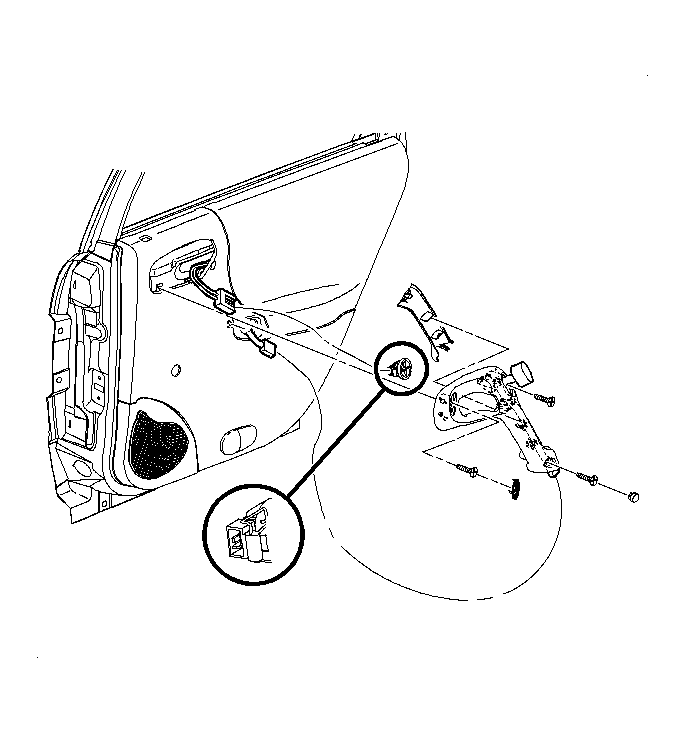

    3. Fig 1: Removing & Installing Rear Door Pull Handle
    GM896475Courtesy of GENERAL MOTORS CORP.
  3. Remove the cover from the pull handle electrical connector.
  4. Disconnect the pull handle electrical connector.
  5. Remove the door lock switch from the pull handle.
