Power Steering System Test Procedure

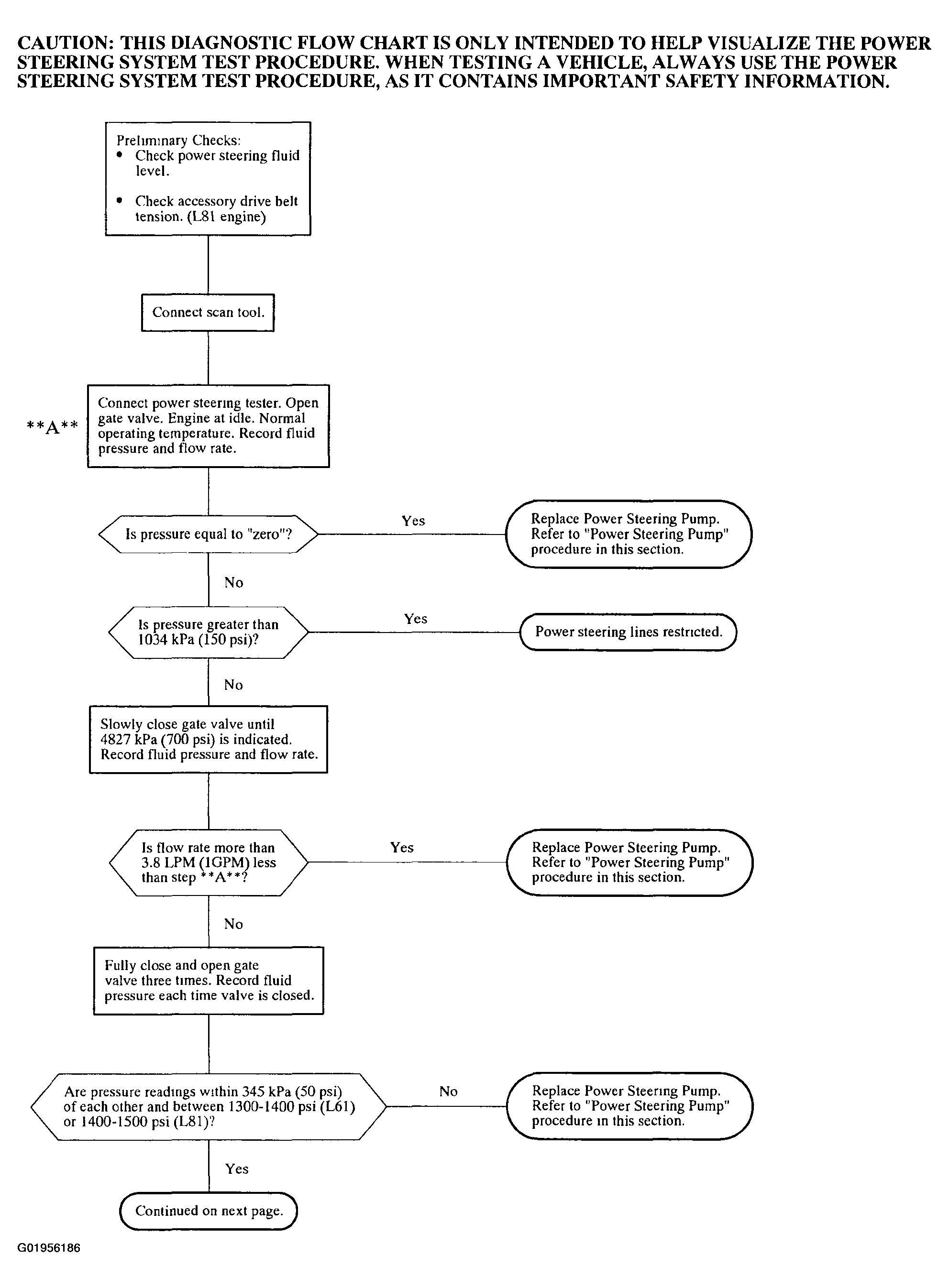

Fig 1: Power Steering System Test Procedure (1 Of 2)
G01956186Courtesy of GENERAL MOTORS CORP.

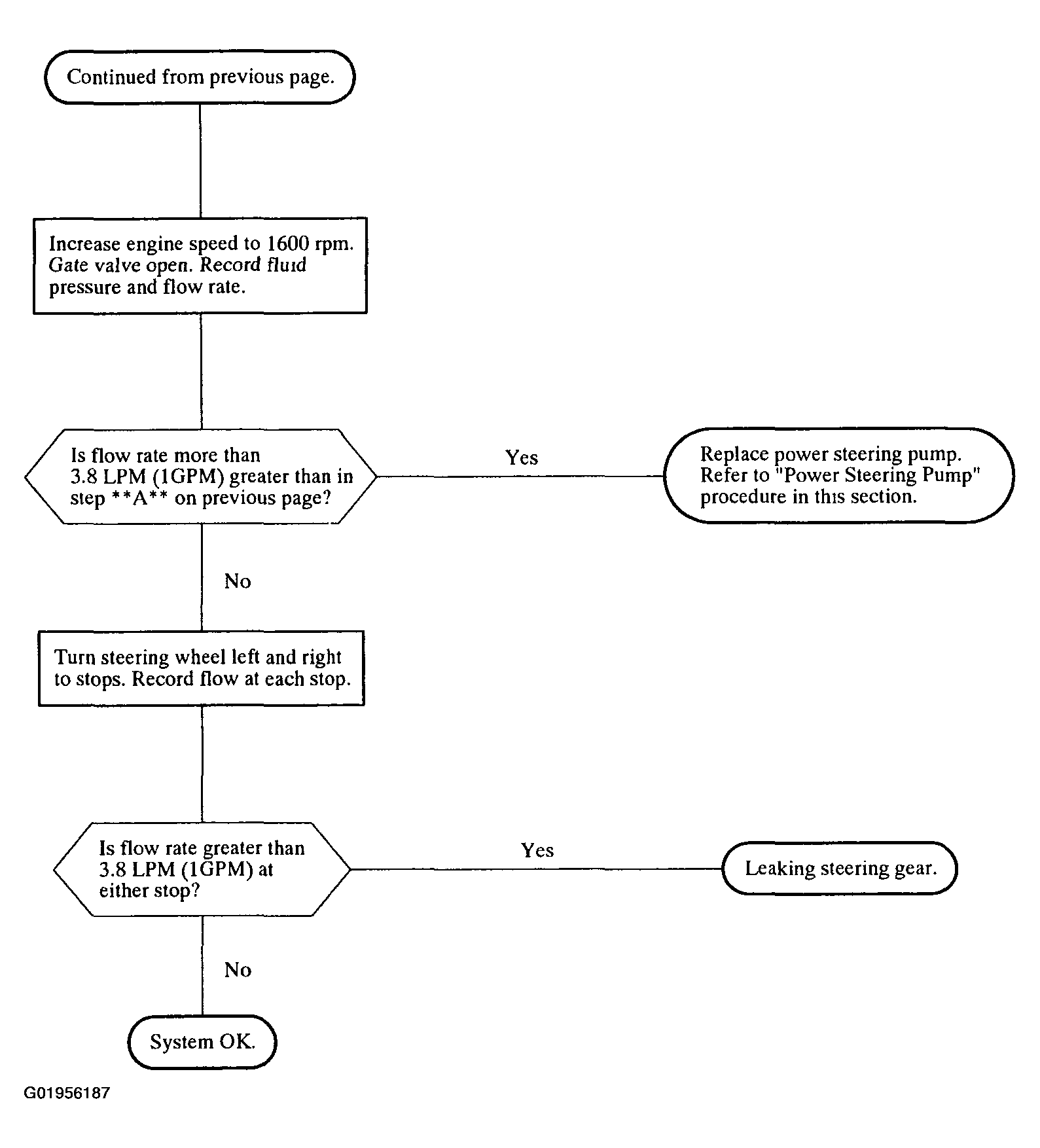

Fig 2: Power Steering System Test Procedure (2 Of 2)
G01956187Courtesy of GENERAL MOTORS CORP.
