Fender Frame Bracket Replacement - Upper Rear




Fender Frame Bracket Replacement - Upper Rear

Removal Procedure




1. Remove front fender. Refer to Front Fender Replacement (Front Fender Replacement).

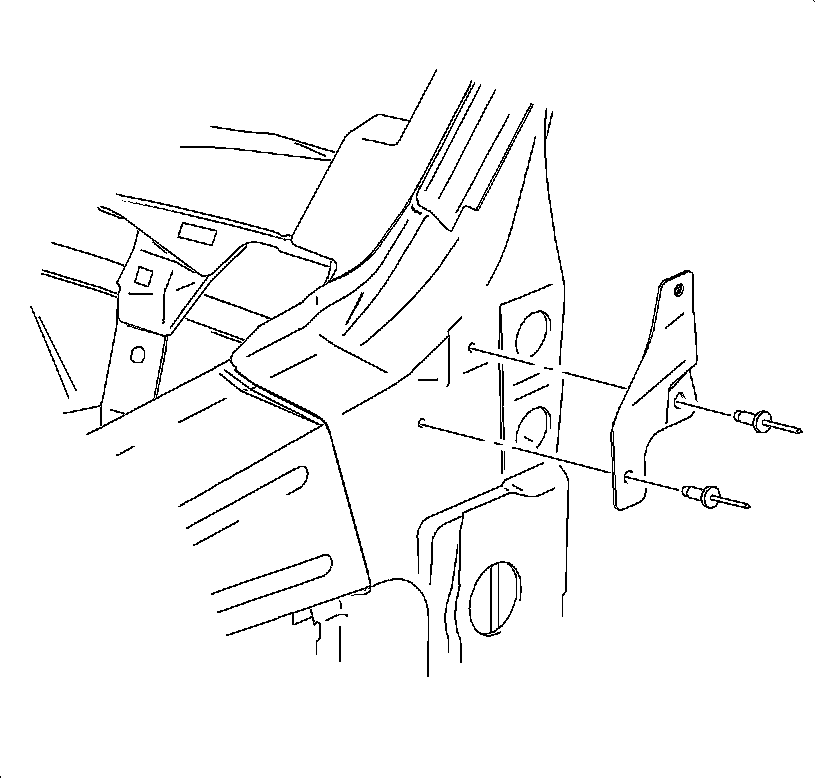

2. Remove rivets attaching upper bracket to spaceframe.
3. Remove upper bracket from spaceframe.

Installation Procedure

1. Position upper bracket to spaceframe.
2. Install rivets into upper bracket and spaceframe.
3. Install front fender. Refer to Front Fender Replacement (Front Fender Replacement).
