29. Intermediate 4TH Band Assembly Installation

INTERMEDIATE 4TH BAND ASSEMBLY INSTALLATION

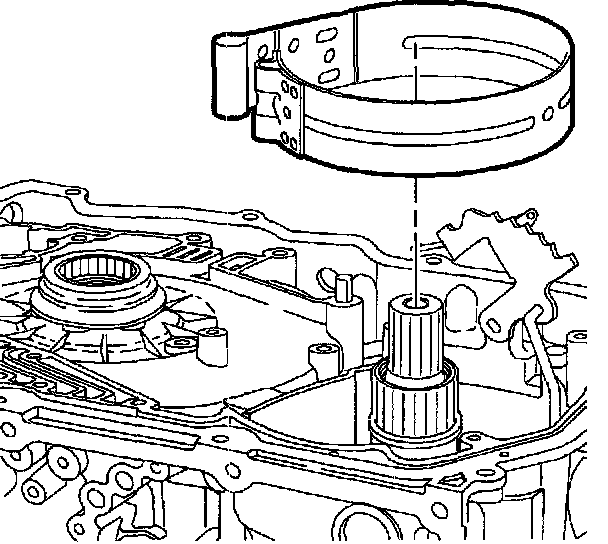

1. Install a new intermediate/fourth band into transaxle case.

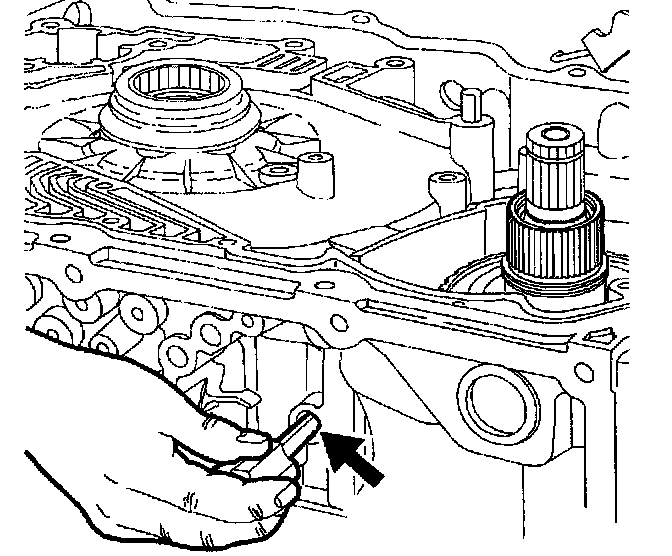

2. In order to verify proper positioning of band, insert a screwdriver through intermediate/fourth servo bore. The screwdriver should press on the servo pin rest and compress the band around the reverse clutch housing.
