Front Seat: Installation

  1. Position seat into vehicle.
  2. Tilt seat rearward and connect seat wiring harnesses.

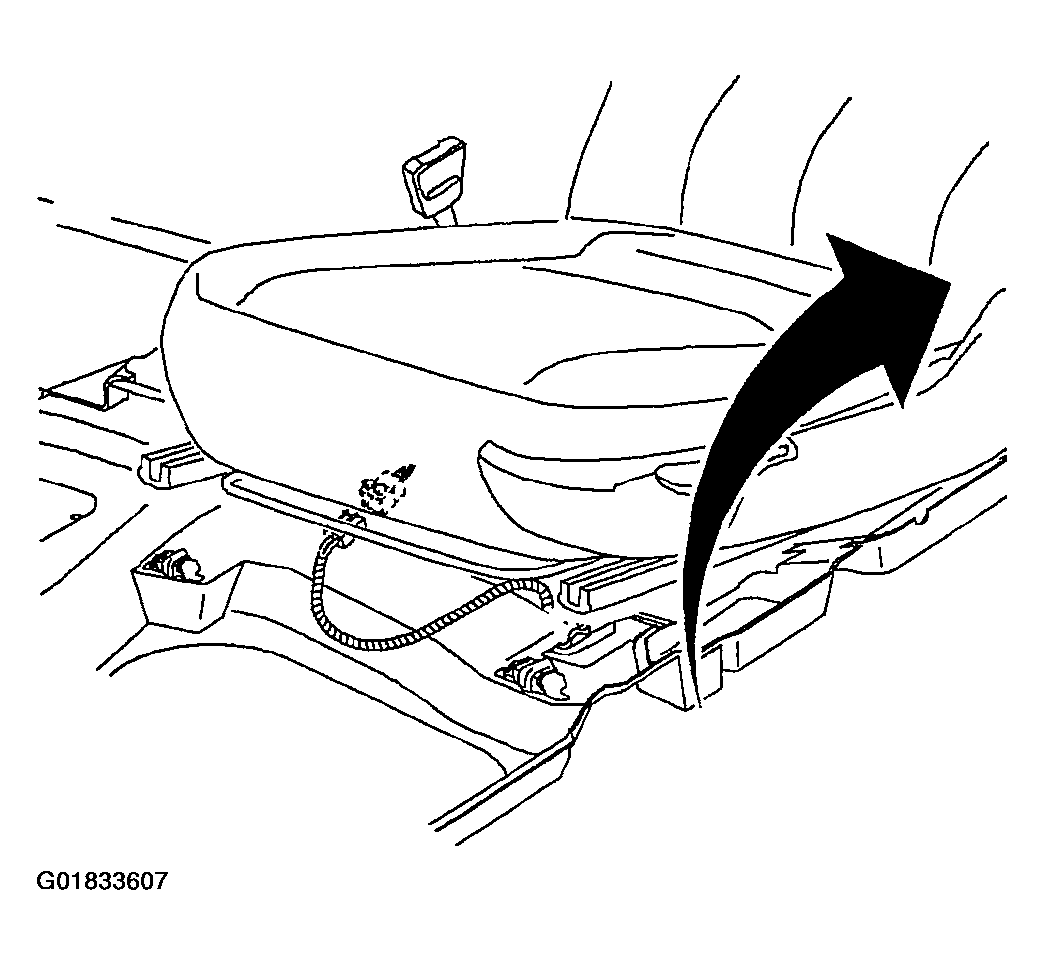

    3. Fig 1: Connecting Seat Wiring Harnesses
    G01833607Courtesy of GENERAL MOTORS CORP.
  3. Slide seat into forward tracks.
  4. Apply Loctite(R) 242 Threadlocker (or equivalent) to seat fasteners and install seat fasteners. Tighten seat fasteners to 25 N.m (19 ft lbs).
  5. Install shoulder belt to seat frame. Tighten shoulder belt-to-seat frame bolt to 20 N.m (15 ft lbs).

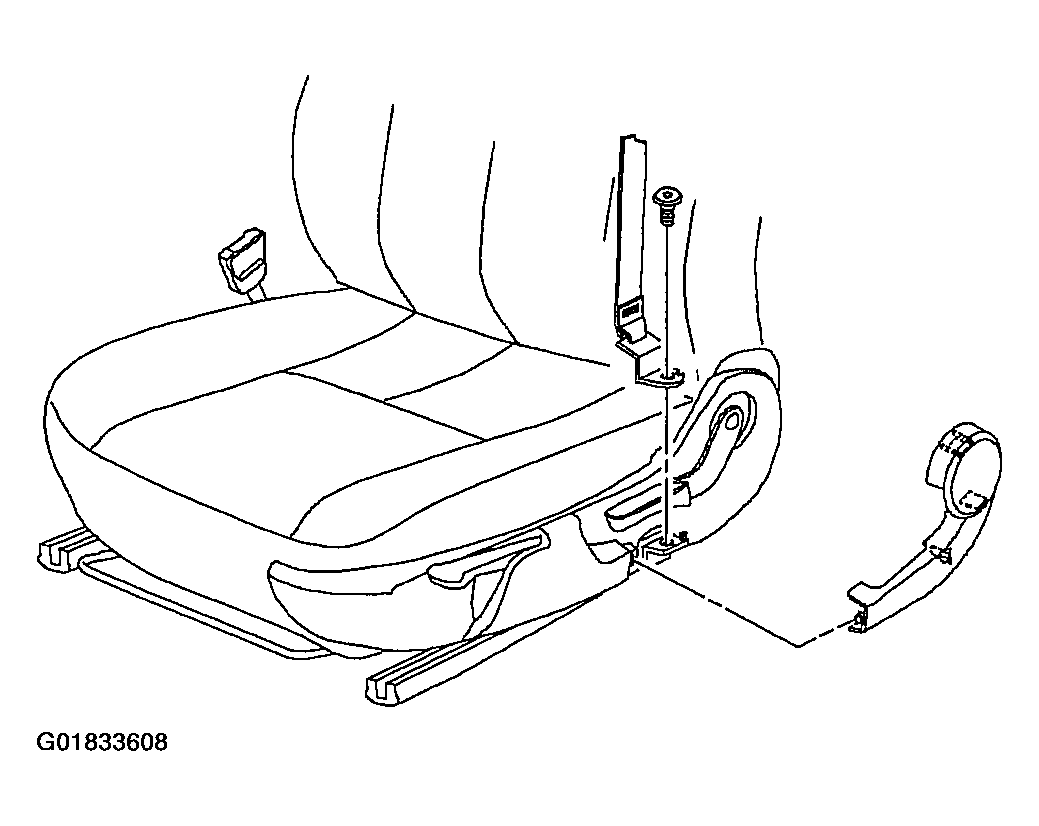

    6. Fig 2: Installing Shoulder Belt To Seat Frame
    G01833608Courtesy of GENERAL MOTORS CORP.
  6. Install shoulder belt outer cover.
  7. If equipped, function electrical seat components to ensure proper operation.
