Lumbar Assembly - Driver Side: Installation

  1. Hook lumbar mechanism into retainers.

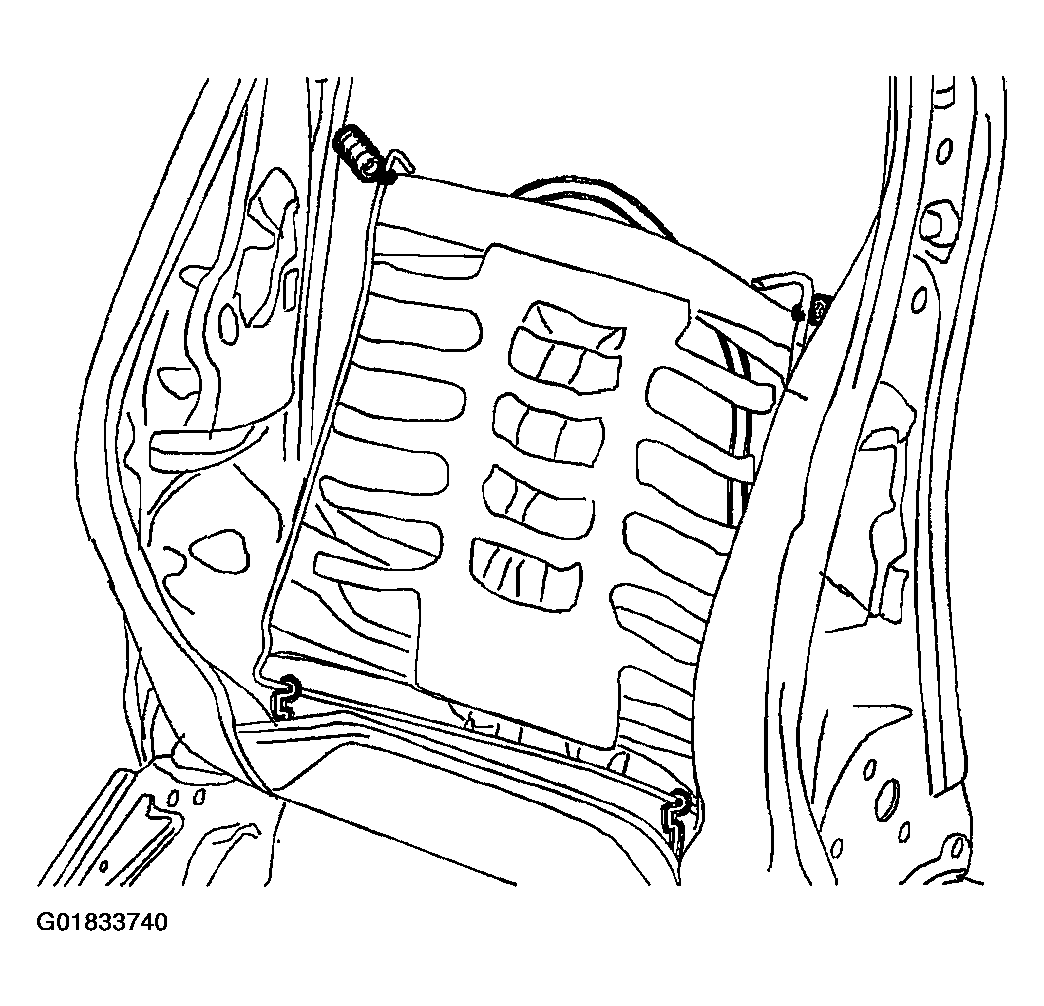

    2. Fig 1: Hooking Lumbar Mechanism Into Retainers
    G01833740Courtesy of GENERAL MOTORS CORP.
  2. Route lumbar adjuster cable and adjuster to seat side frame.
  3. Install lumbar adjuster with fasteners. Tighten lumbar adjuster fasteners to 3 N.m (27 in lbs).

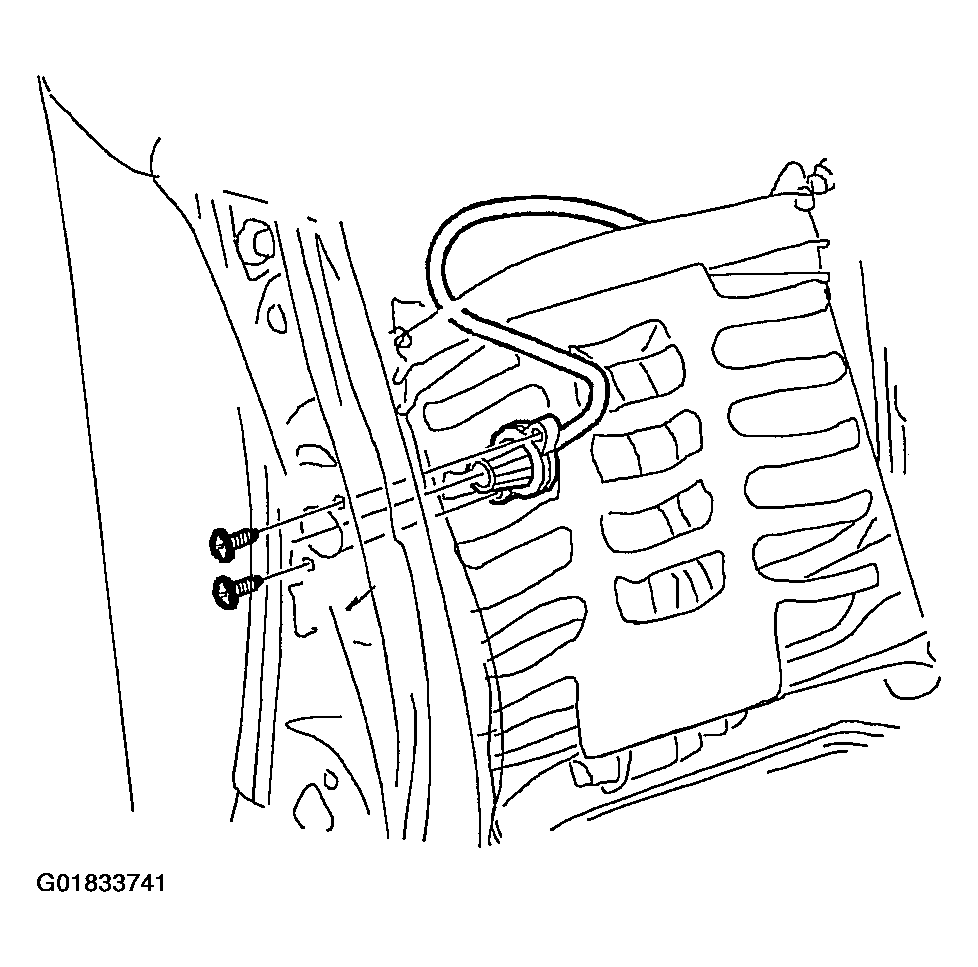

    4. Fig 2: Installing Lumbar Adjuster
    G01833741Courtesy of GENERAL MOTORS CORP.
  4. Install front seat cover assembly. Refer to FRONT SEAT BACK FRAME/PAD/COVER  .

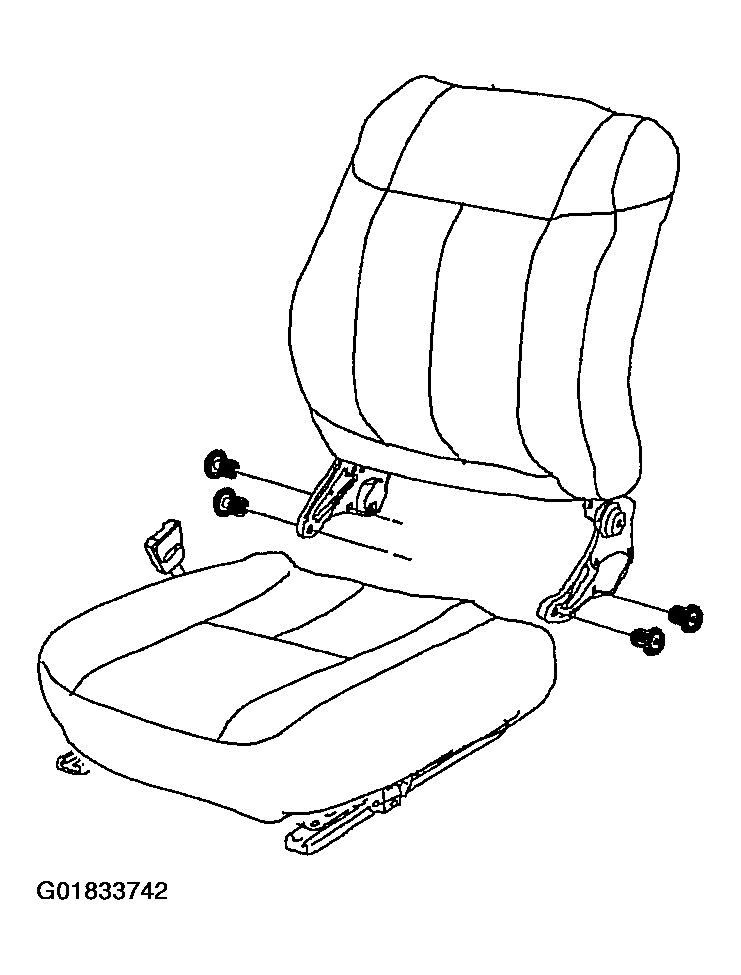

    5. Fig 3: Installing Front Seat Cover Assembly
    G01833742Courtesy of GENERAL MOTORS CORP.
  5. Install front seat assembly. Refer to FRONT SEAT  .

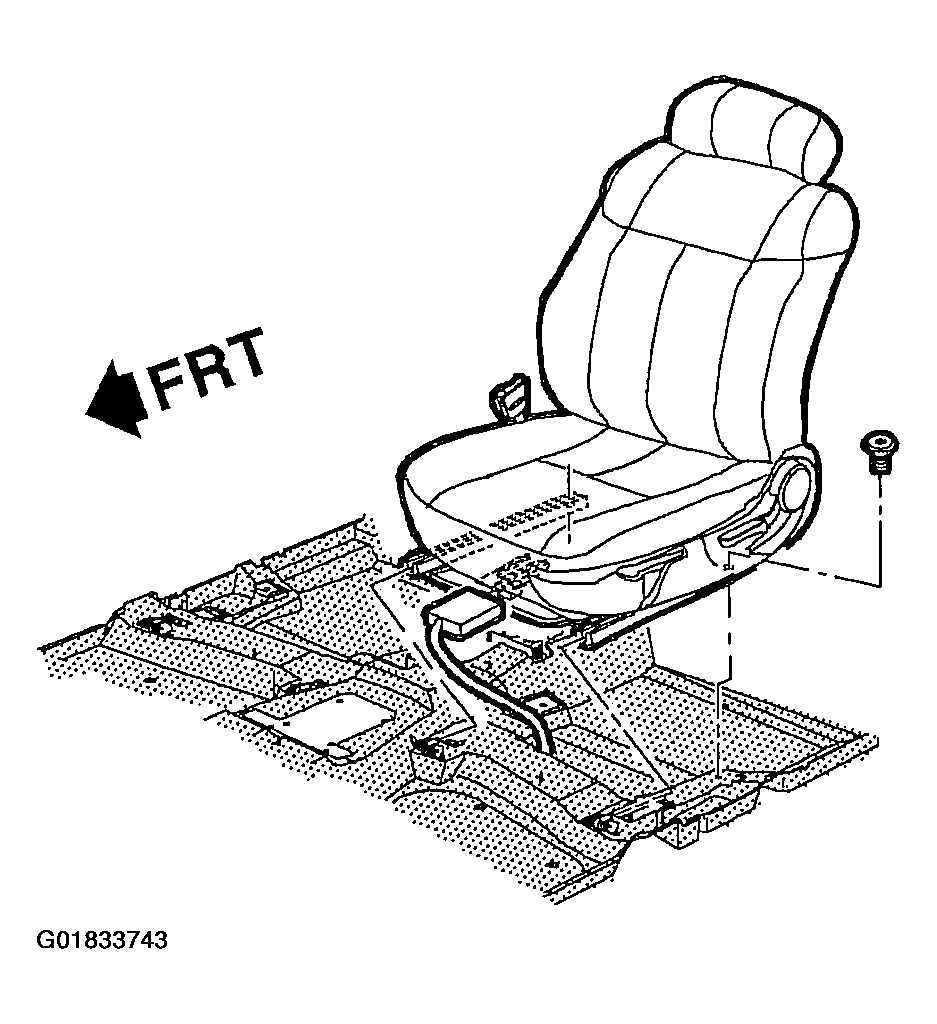

    6. Fig 4: Installing Front Seat Assembly
    G01833743Courtesy of GENERAL MOTORS CORP.
