Pusher Fan: Installation

WARNING: This page is about a different car, the 2002 Saturn LW200, 2002 Saturn L200, and 2002 Saturn L100. However, it is still accessible from the selected car via links, so may be relevant.

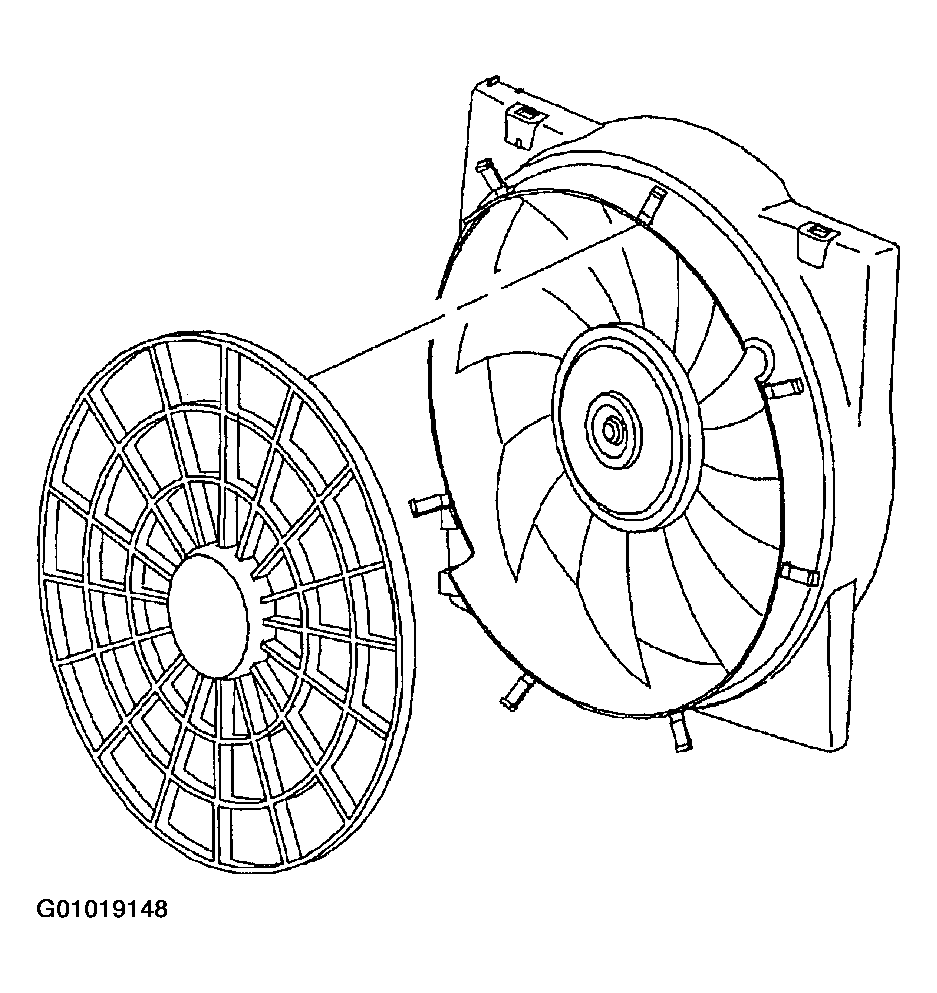

  1. If pusher fan is being replaced, snap finger guard onto new pusher fan. See Figure.
    CAUTION: Position pusher fan electrical harness in shroud indentation to prevent harness damage.
  2. Slide upper pusher fan shroud under retaining tabs located at upper edge of condenser.

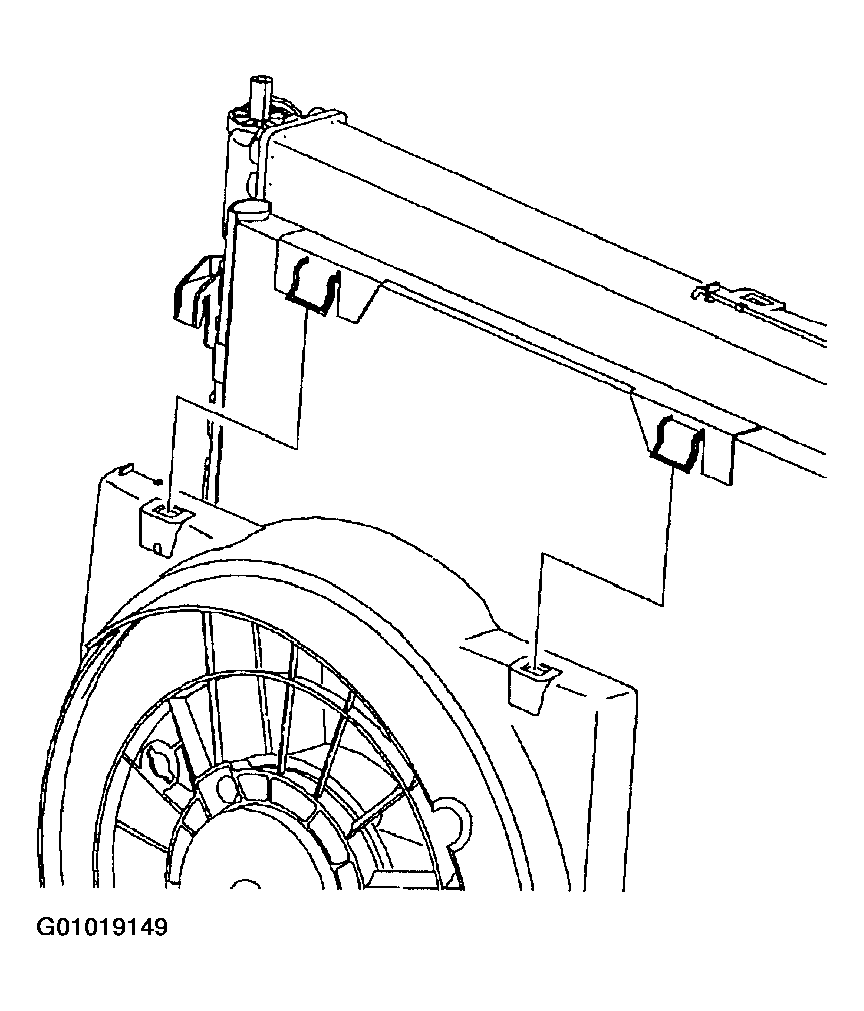

    Fig 1: Connecting Upper Pusher Fan Shroud To Upper Edge Of Condenser
    G01019149Courtesy of GENERAL MOTORS CORP.

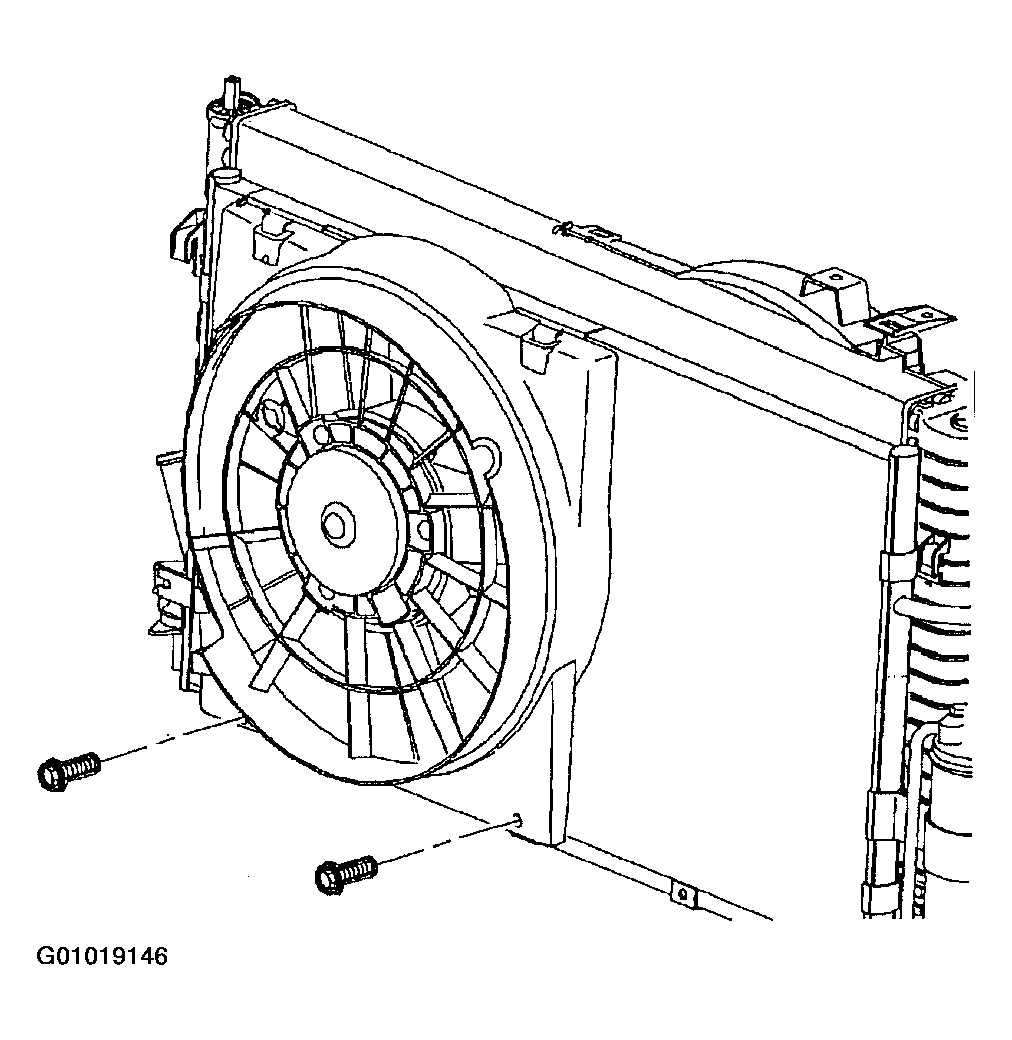

  3. Rotate lower fan shroud onto condenser and install retaining bolts. Tighten Lower Fan Shroud-to-Condenser Bolts to 4 N.m (35 in-lbs). See Figure.
  4. Route pusher fan electrical harness around outside of radiator end tank, below upper radiator hose.
  5. Lower vehicle.
  6. Install pusher fan harness into mounting tabs on puller fan shroud.

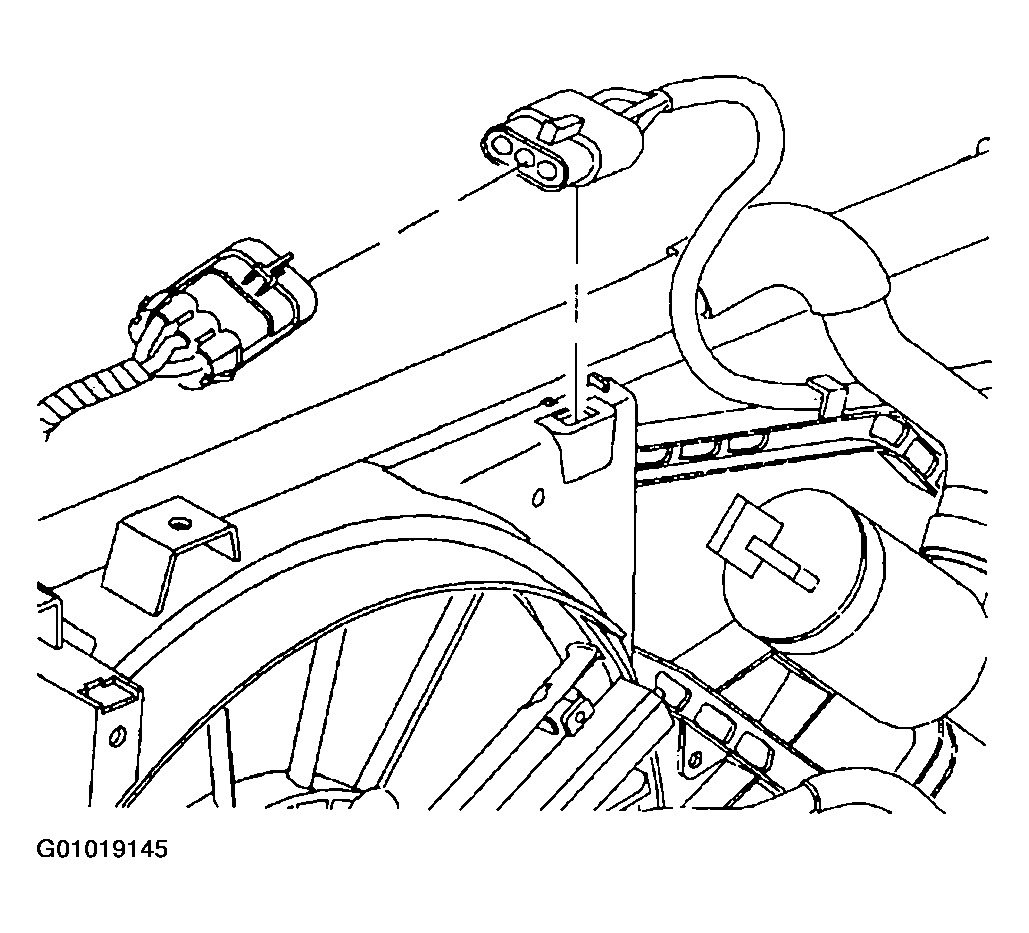

  7. Connect pusher fan electrical connector. See Figure.
  8. Connect negative battery cable. Tighten battery terminal bolts to 17 N.m (13 ft-lbs).

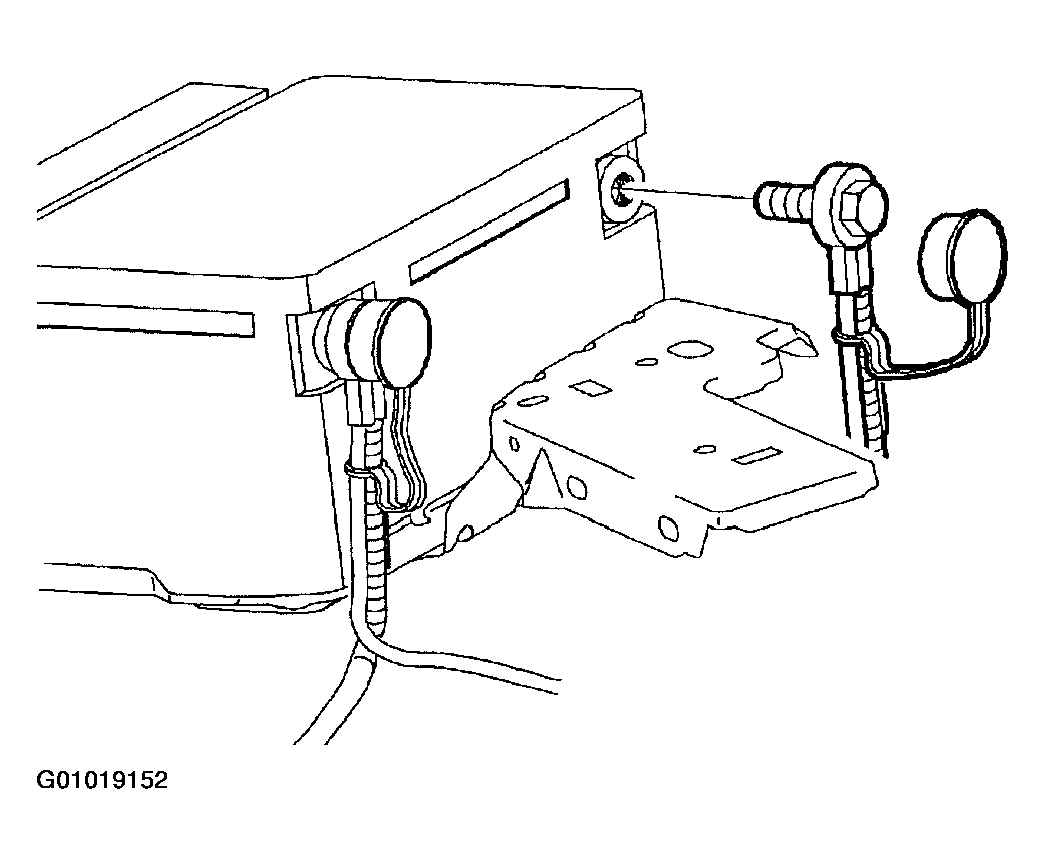

    Fig 2: Connecting Negative Battery Cable
    G01019152Courtesy of GENERAL MOTORS CORP.
