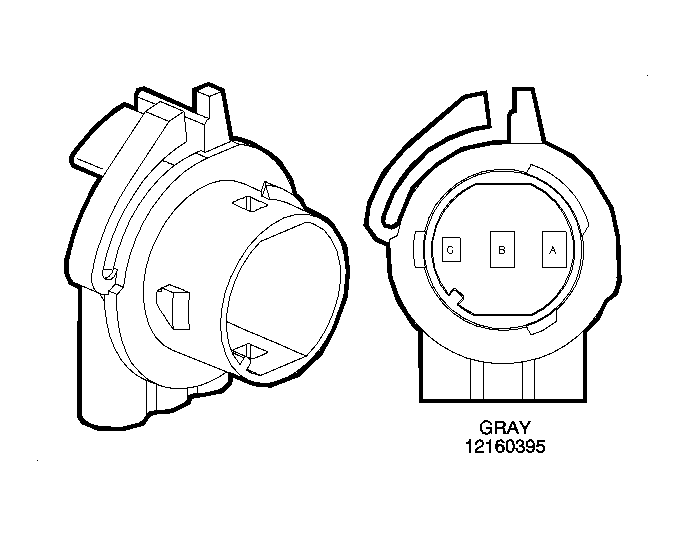

Park/Turn Lamp Connector End View
Park/Turn Lamp
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
LT BLU |
14 |
Left Turn - High |
| A |
DK BLU |
15 |
Right Turn - High |
| B |
BRN |
9 |
Park - High |
| G |
BLK |
150 |
Ground |
