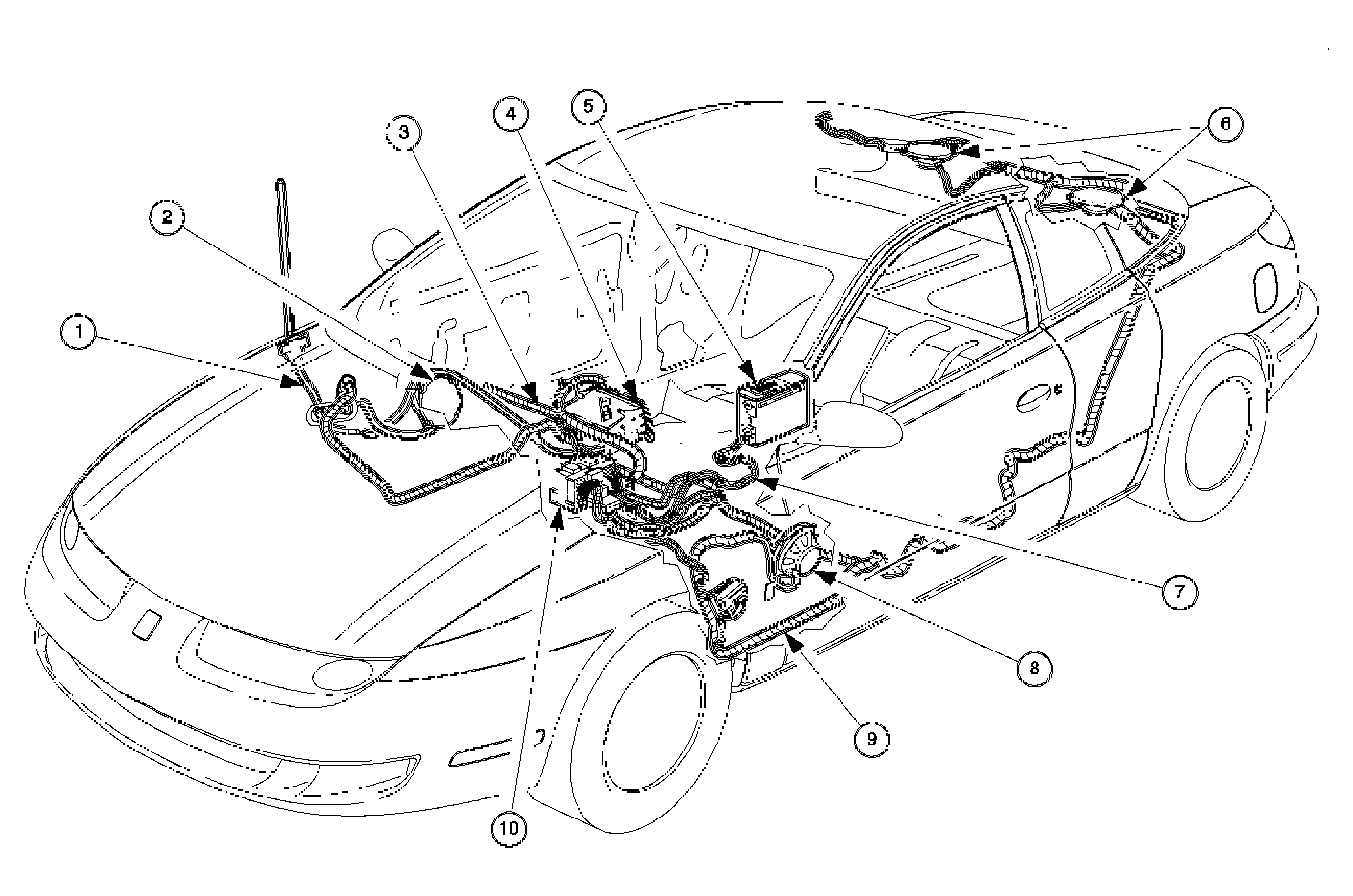

Entertainment Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Antenna Cable |
| 2 |
Door Speaker (Right) |
| 3 |
I/P Harness |
| 4 |
Radio |
| 5 |
CD Changer/Player |
| 6 |
Rear Speakers |
| 7 |
CD Changer/Player Jumper |
| 8 |
Door Speaker (Left) |
| 9 |
Body Harness |
| 10 |
Instrument Panel Fuse Block (IPFB) |
