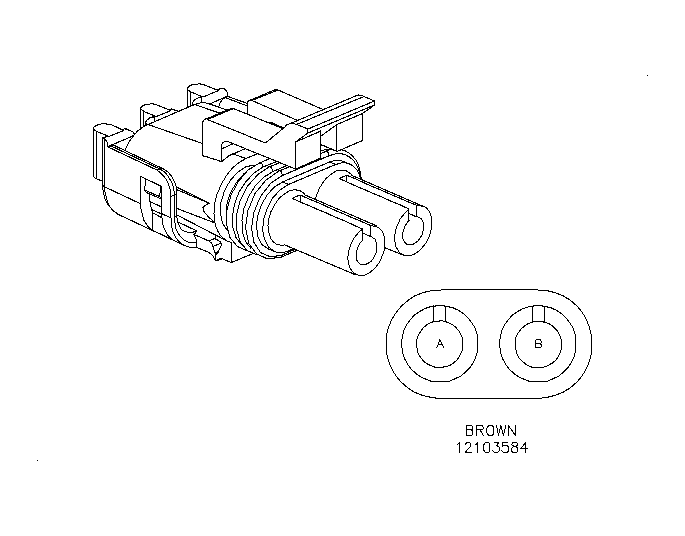

Backup Switch Connector End View

Backup Switch

GM884214Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12103584
  • BRN
Pin Wire Color Circuit No. Function
A LT GRN 24 UHFB to Lamps
B PNK 239 UHFB - IGN1 Fuse
