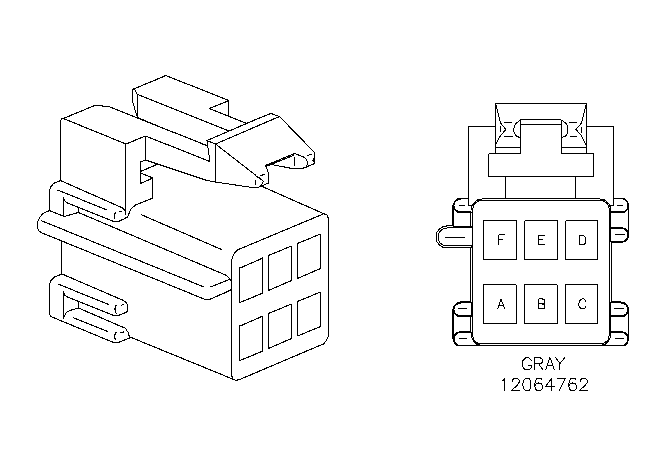

Wiper Switch Connector End View
Wiper Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK | 350 | Ground - I/P Splice Pack#1 |
| B | BRN | 96 | Wiper Motor Front |
| C | PPL | 92 | Wiper Motor Front |
| D | DK GRN | 392 | I/P Inline to Body - Washer Pump |
| E | ORN | 580 | I/P Liftgate Connector - Rear Wiper Motor |
| F | WHT | 393 | I/P Inline to Body - Rear Wiper Motor |
