Section 10 (Manual Transmission Servicing): Identification: Transaxle

WARNING: This page is about a different car, the 2002 Saturn LW200 and 2002 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

Transaxle identification tag is attached to top of transaxle. See Fig 1 .

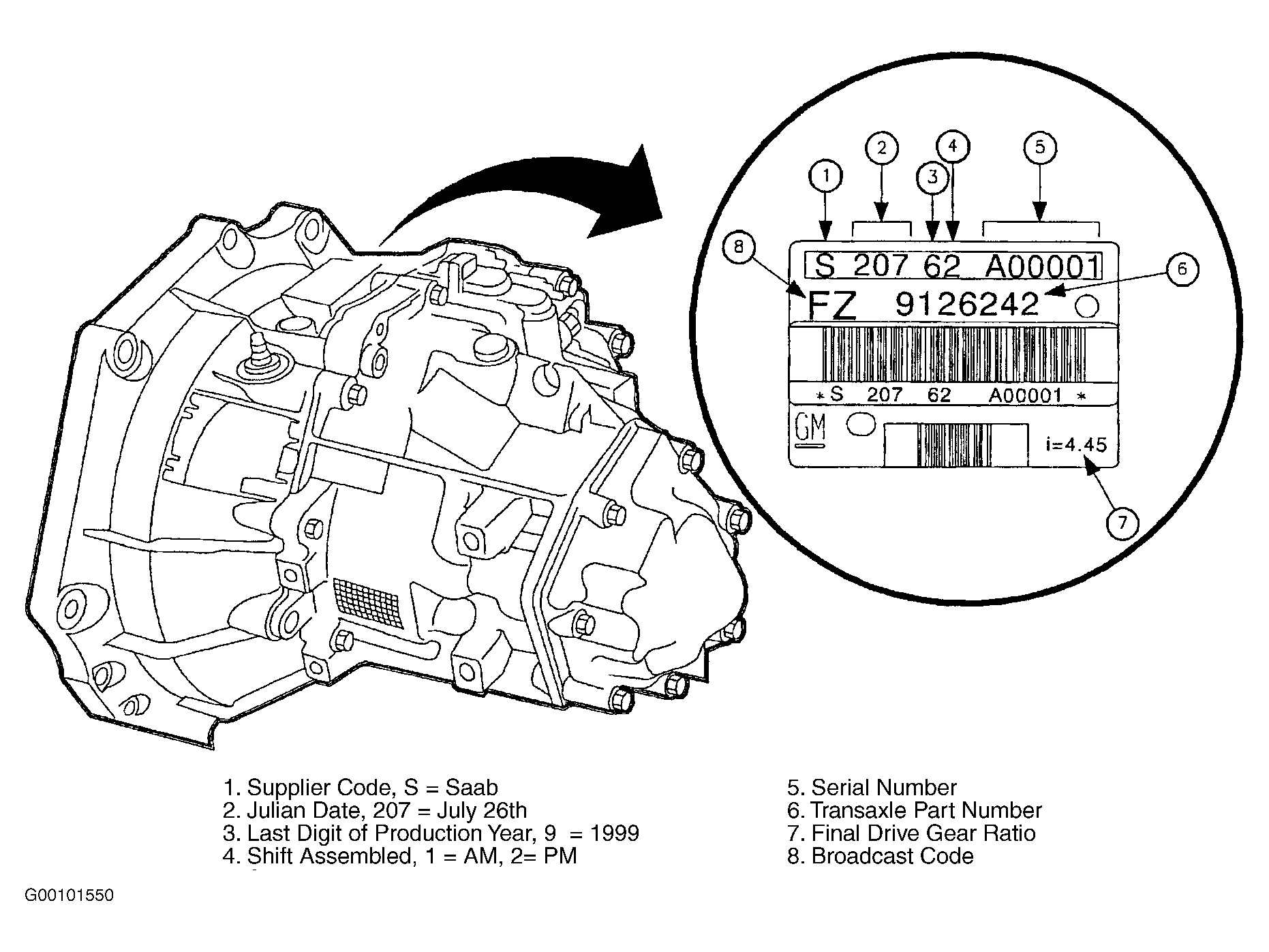

Fig 1: Locating Transaxle Identification Tag

Courtesy of GENERAL MOTORS CORP.
