Steering Controls Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

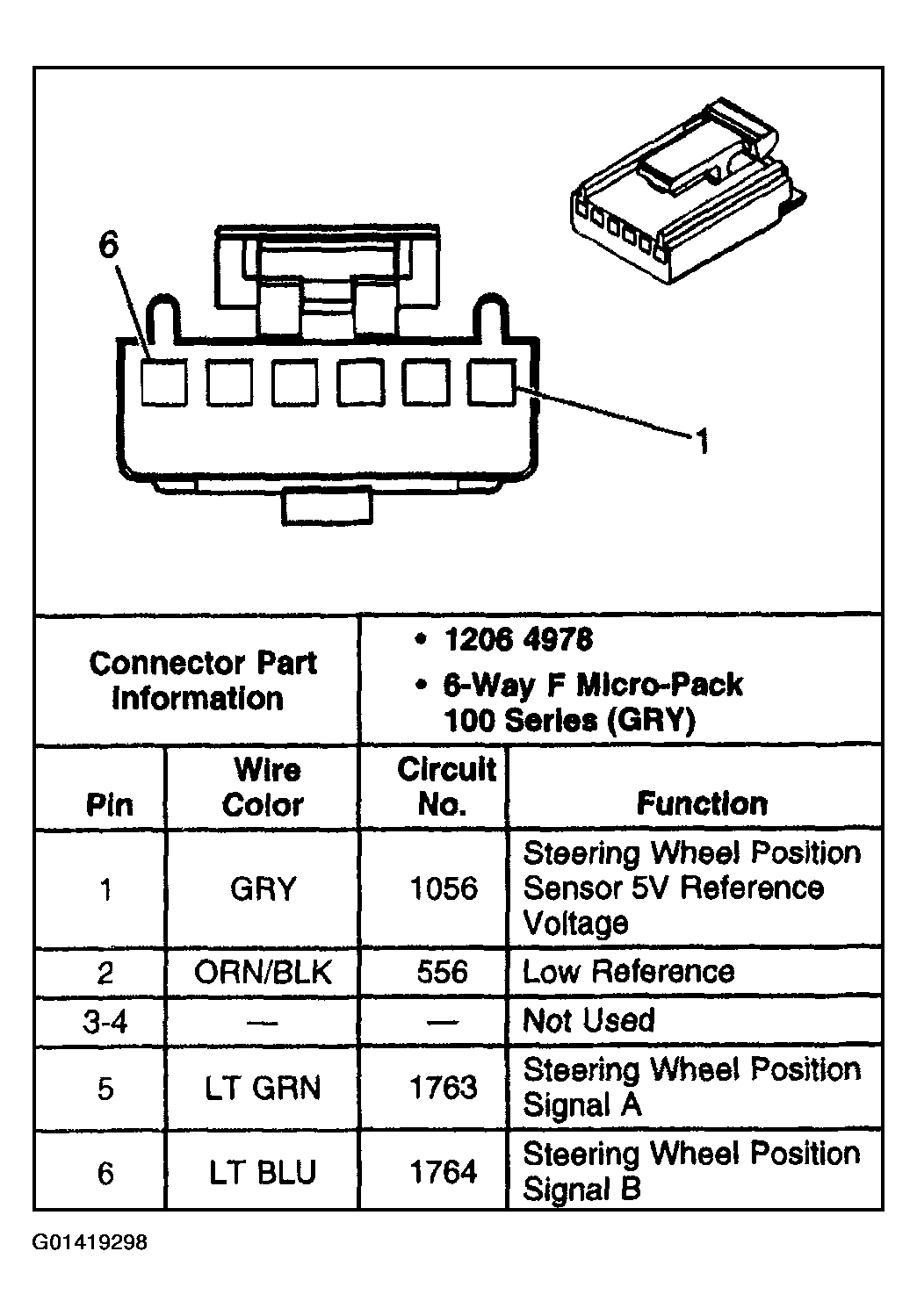

Fig 1: Identifying Steering Wheel Position Sensor
G01419298Courtesy of GENERAL MOTORS CORP.

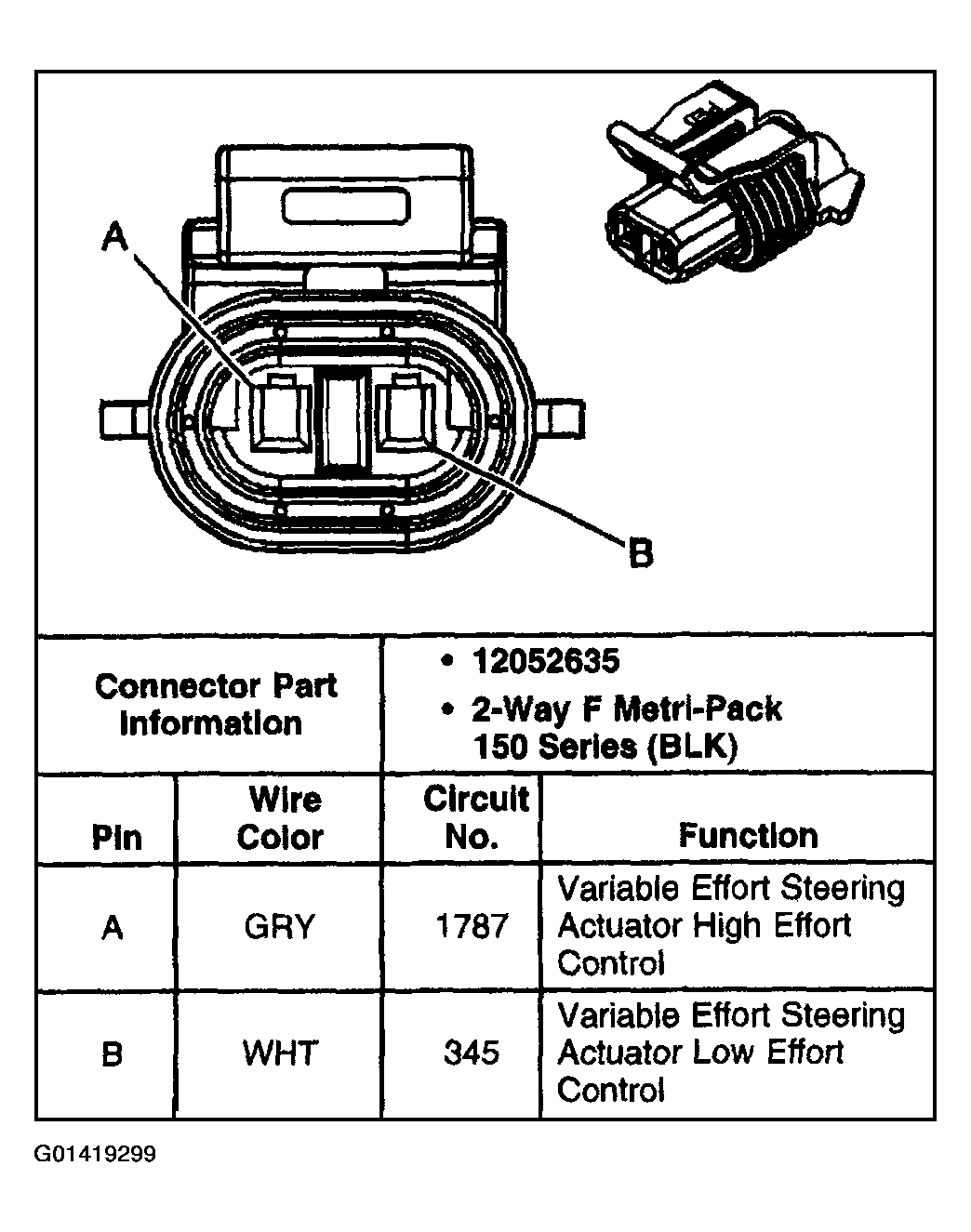

Fig 2: Identifying Variable Effort Steering Actuator
G01419299Courtesy of GENERAL MOTORS CORP.
