Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ball joint stud into the steering knuckle using J 9519-E  and J 28685  .

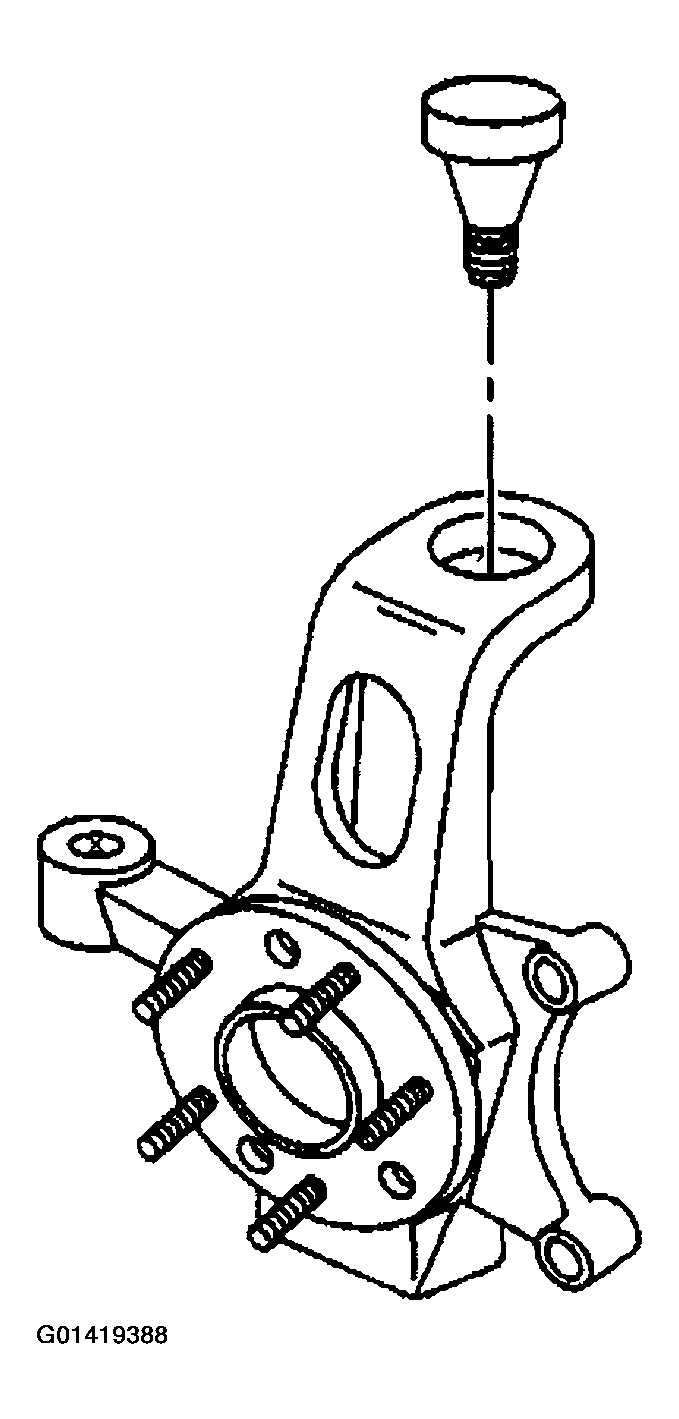

    Fig 1: Installing Ball Joint Stud Into Steering Knuckle
    G01419388Courtesy of GENERAL MOTORS CORP.
  2. Install the steering knuckle to the vehicle. Refer to STEERING KNUCKLE REPLACEMENT  .

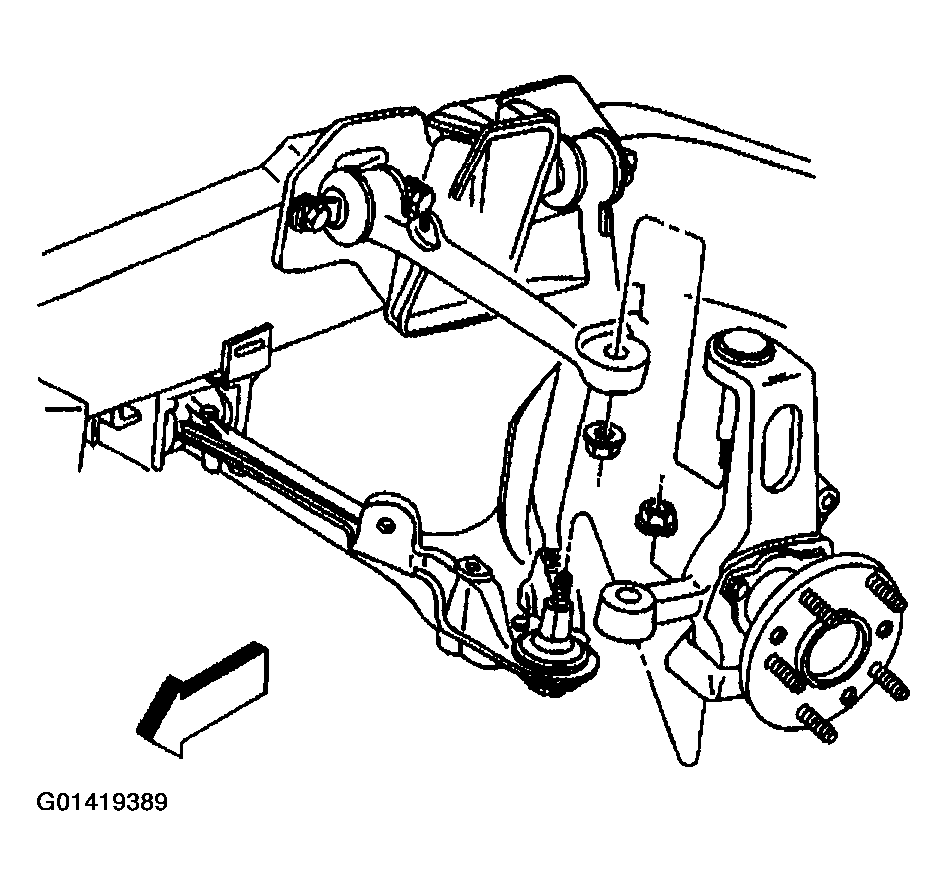

    Fig 2: Installing Steering Knuckle To Vehicle
    G01419389Courtesy of GENERAL MOTORS CORP.
