Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

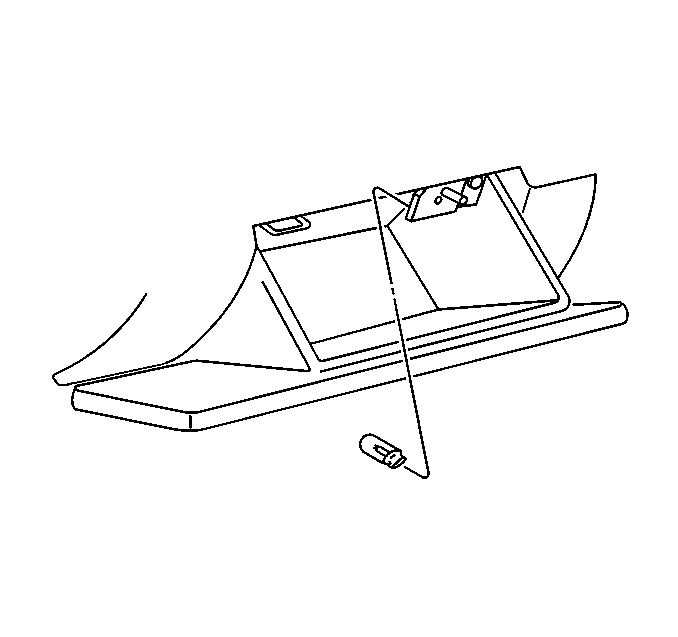

    Fig 1: IP Passenger Compartment Door
    GM64670Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb to the socket in the back of the switch.
  2. Close the IP passenger compartment door.
