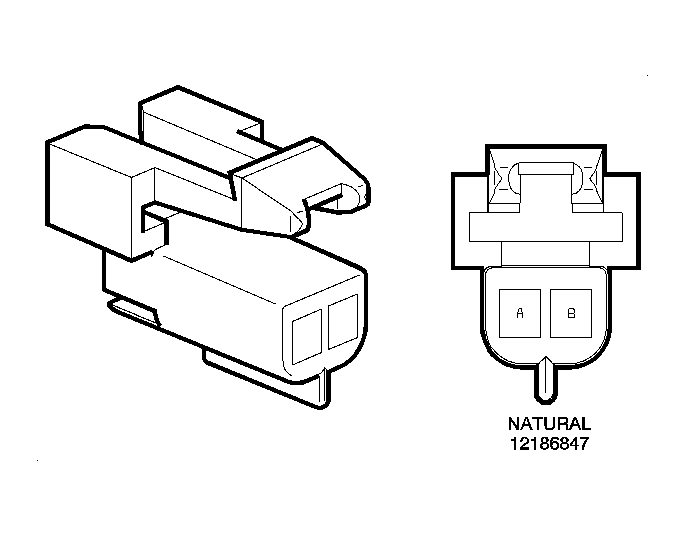

Cargo Lamp Connector End View - Sedan/Coupe
Cargo Lamp - Sedan/Coupe
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
GRY/BLK |
737 |
Decklid Inline - Cargo Lamp Switch |
| B |
ORN |
340 |
IPFB - Power |
