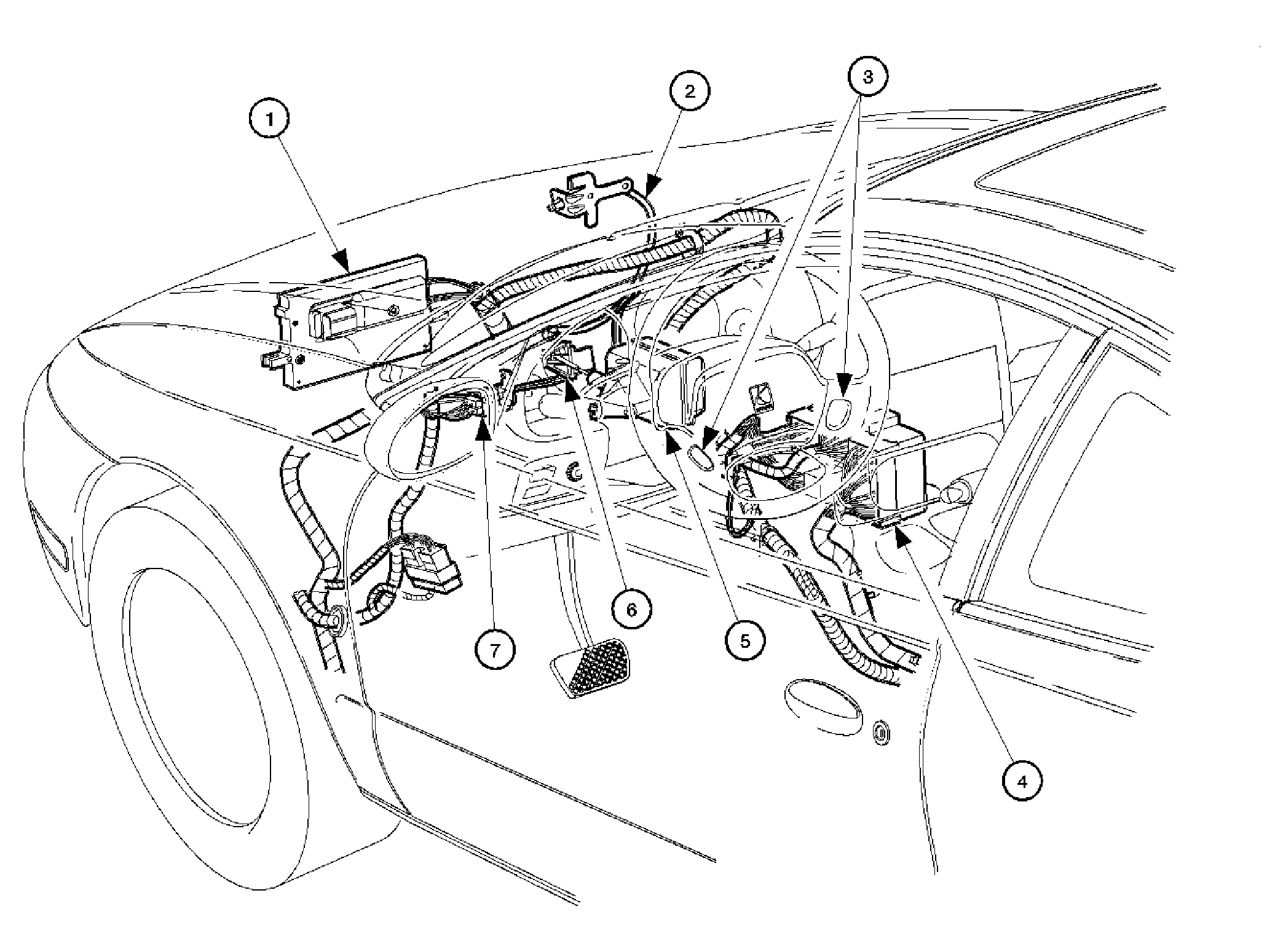

Cruise Control Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Throttle Cable |
| 3 |
Cruise Control Switches |
| 4 |
Instrument Panel Fuse Block (IPFB) |
| 5 |
Cruise Control Module |
| 6 |
Cruise Control Rod |
| 7 |
Stop Lamp Switch |
