Transaxle Control Module (TCM) - J2

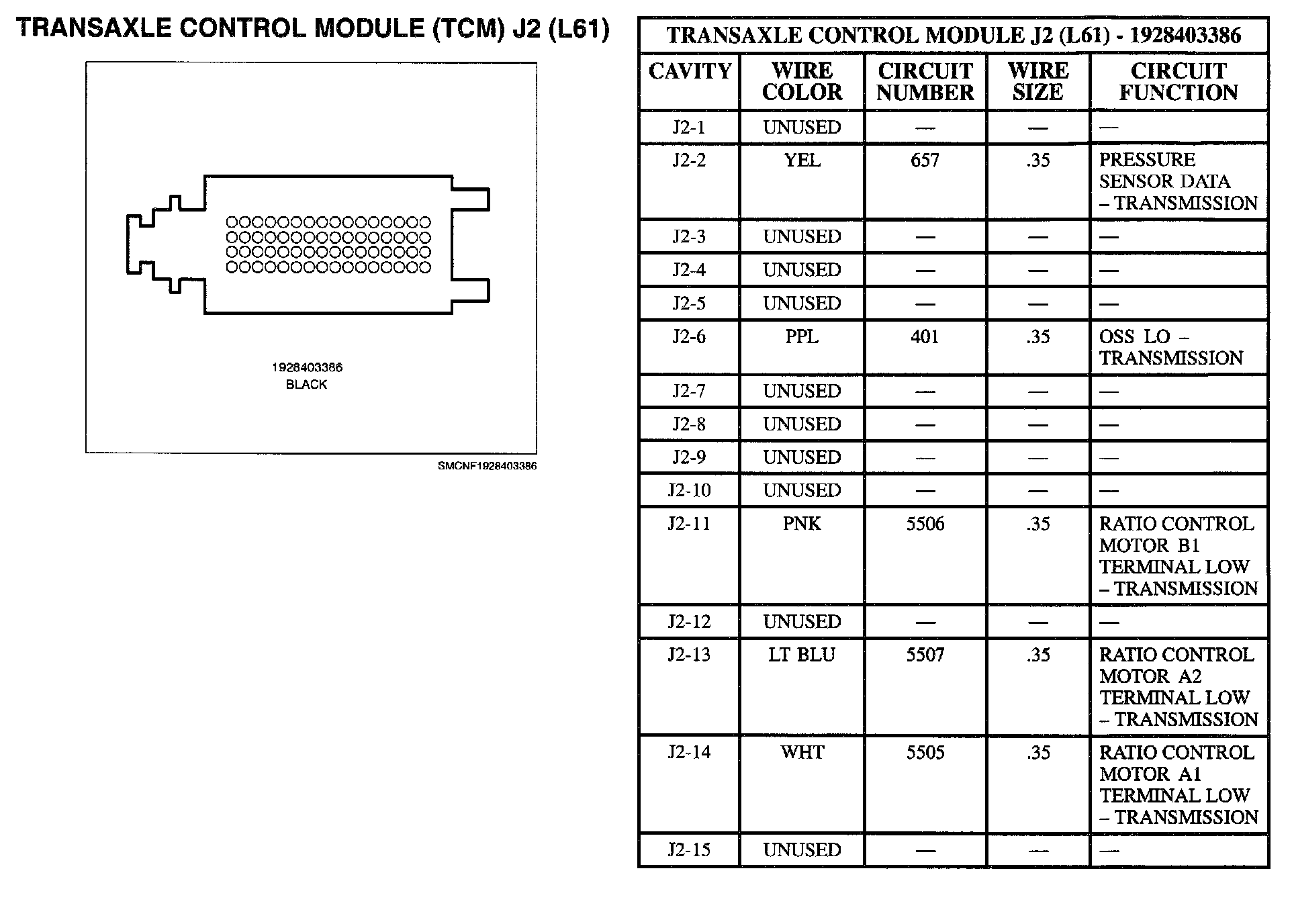

Transaxle Control Module (TCM) J2 (L61) Part 1:

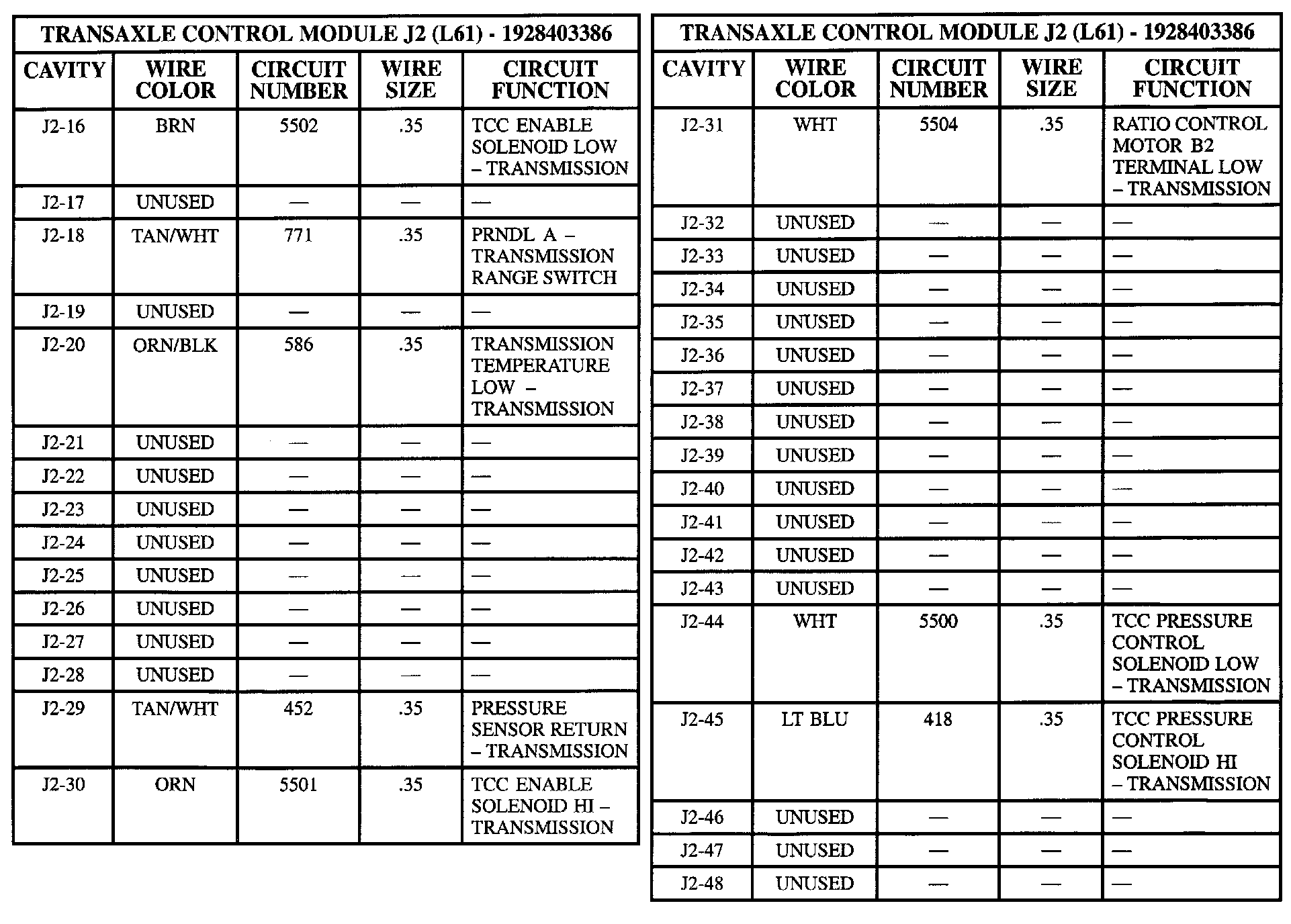

Transaxle Control Module J2 (L61) Part 2:

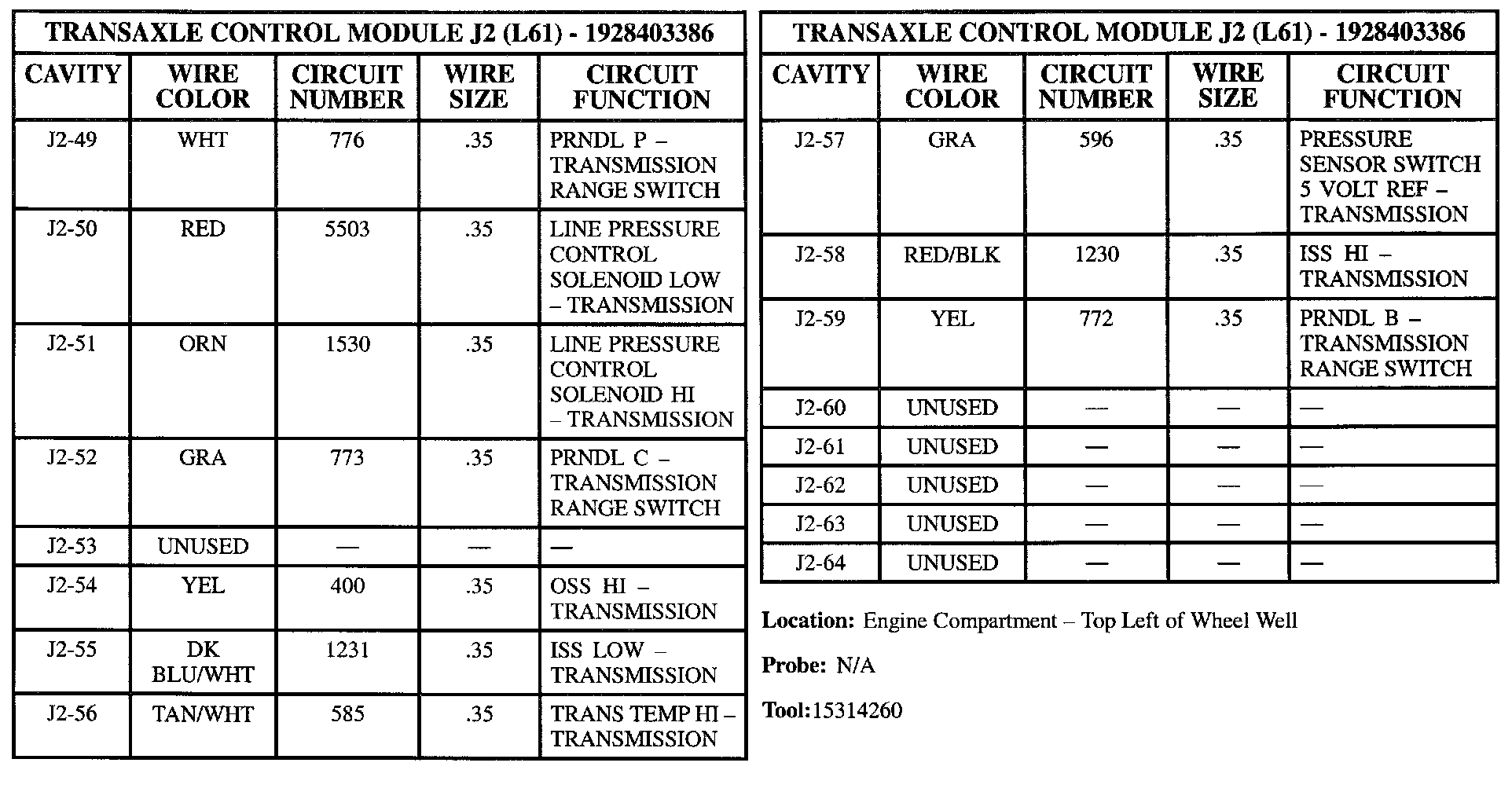

Transaxle Control Module J2 (L61) Part 3:
