Console Assembly: Installation

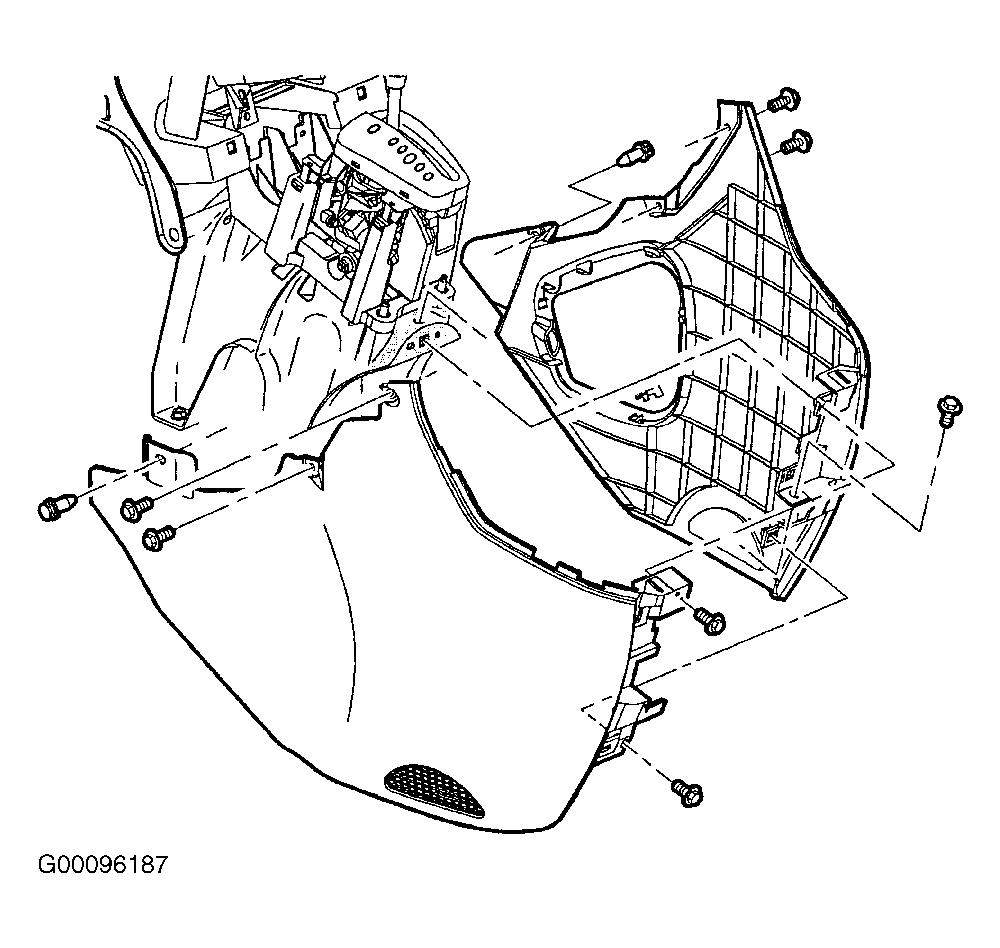

- Install right trim panel and align left trim panel over alignment pins in right trim panel. Install screws. Install panel-to-HVAC module push pin and panel-to-instrument panel retainer screws. See Fig 6
.

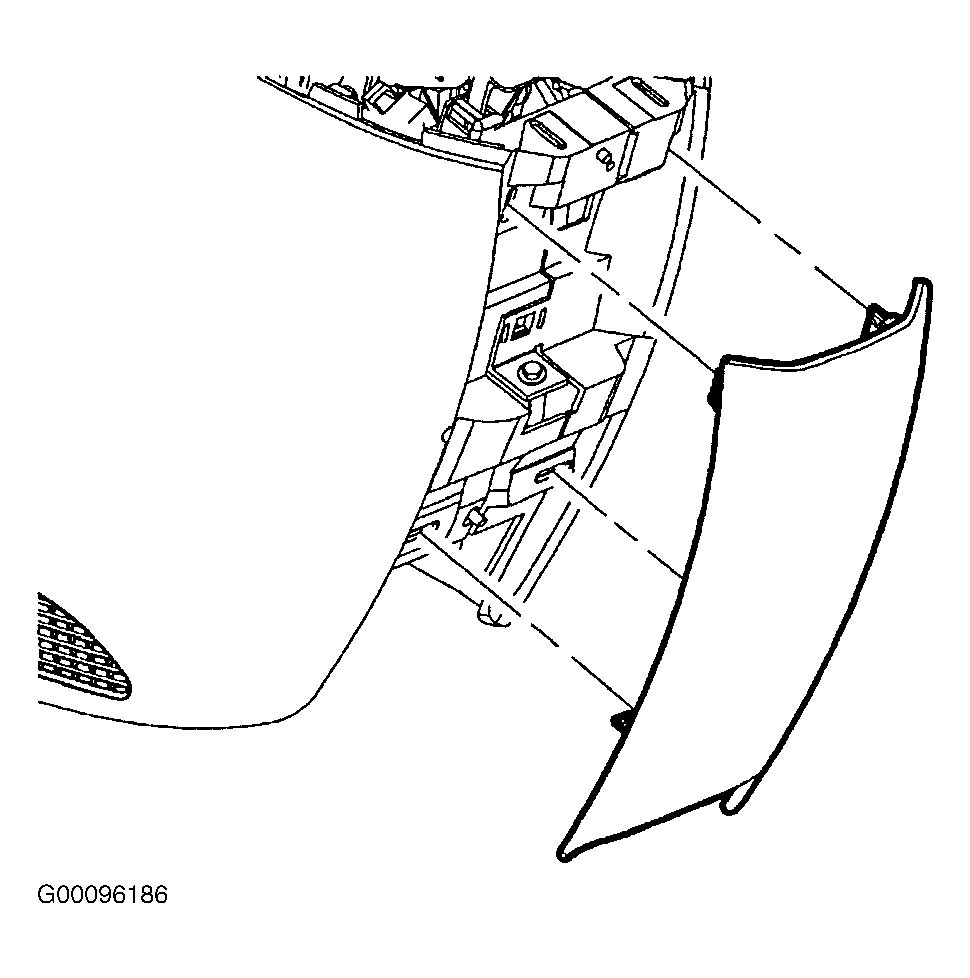

- Align retention clips with slots in side trim panels and press center trim forward at clip locations to snap into place. See Fig 5

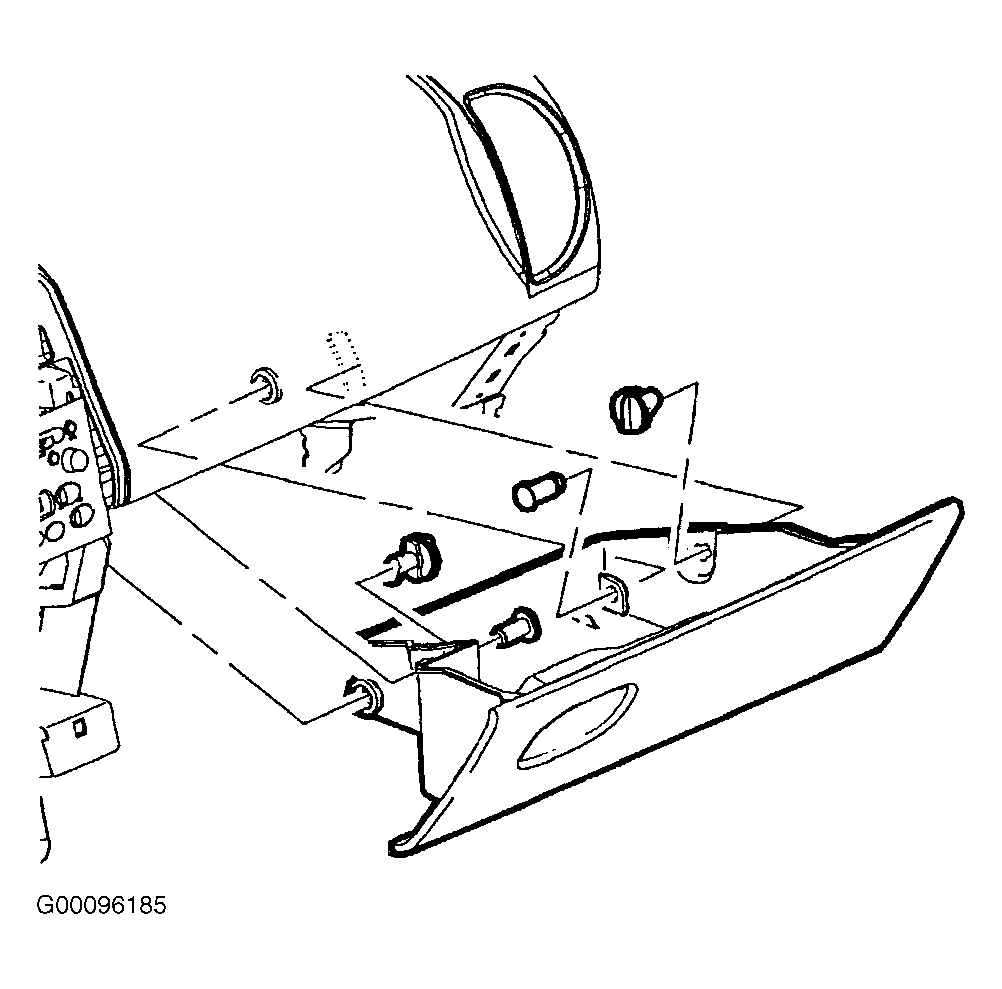

. Position instrument panel compartment door to instrument panel retainer assembly and install door pins.

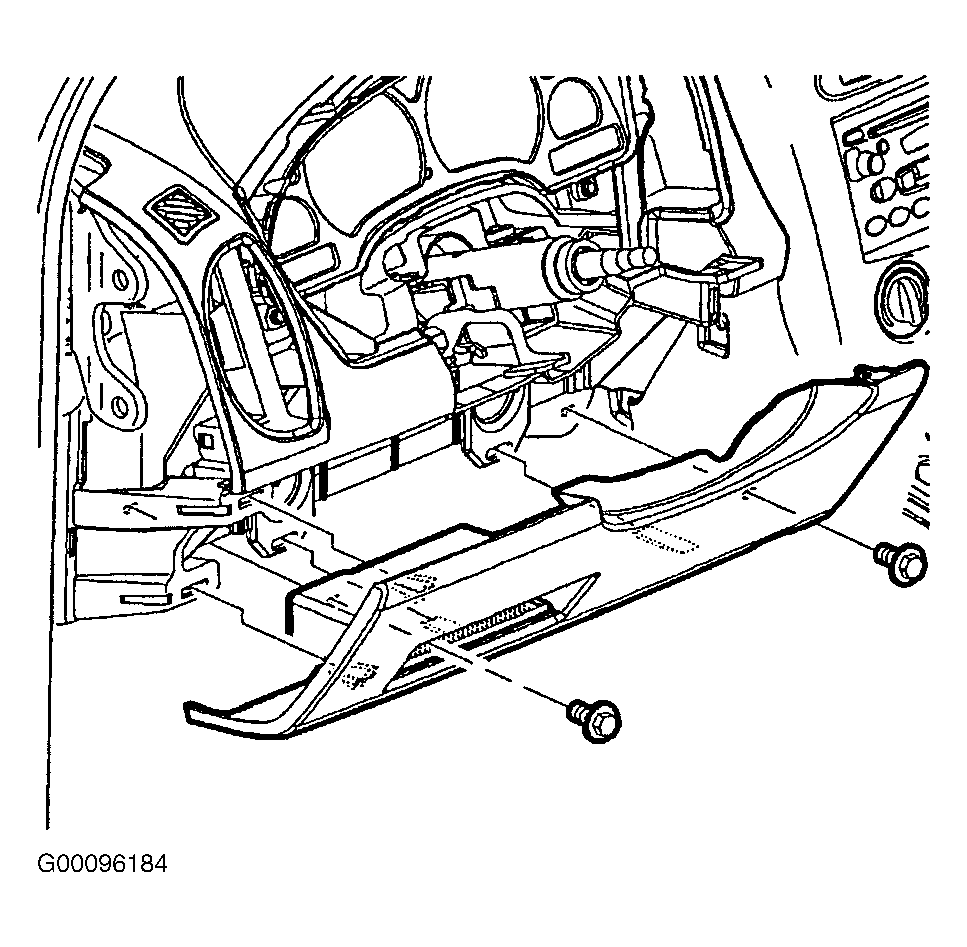

- Install instrument panel compartment door stops by inserting with 1/4 turn to lock into position. Install knee bolster by aligning retention clips with corresponding slots in retainer and snapping into place by applying light force at clip locations. See Fig 4
.

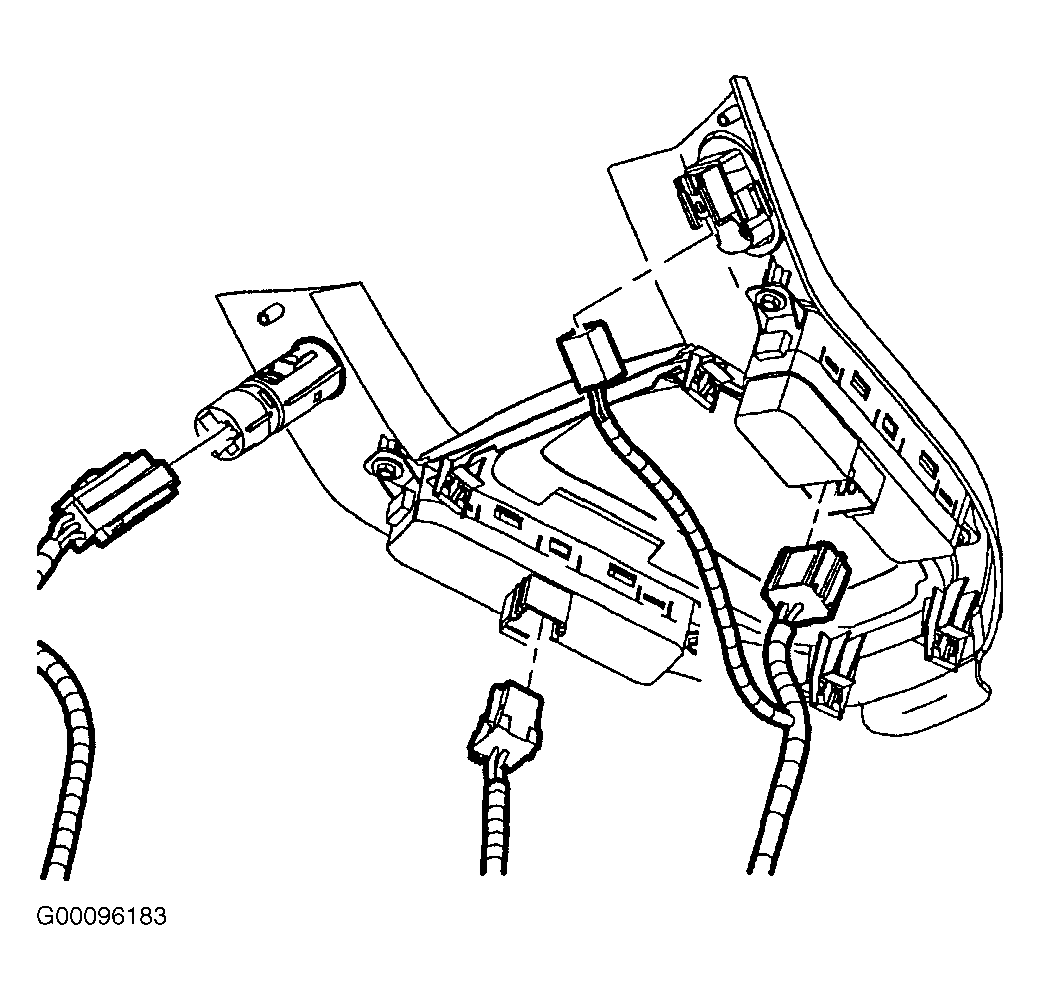

- Install screws and tighten. Connect power outlet electrical connector. Connect wiring harnesses to window switches, mirror switch and cigar lighter. See Fig 2
.

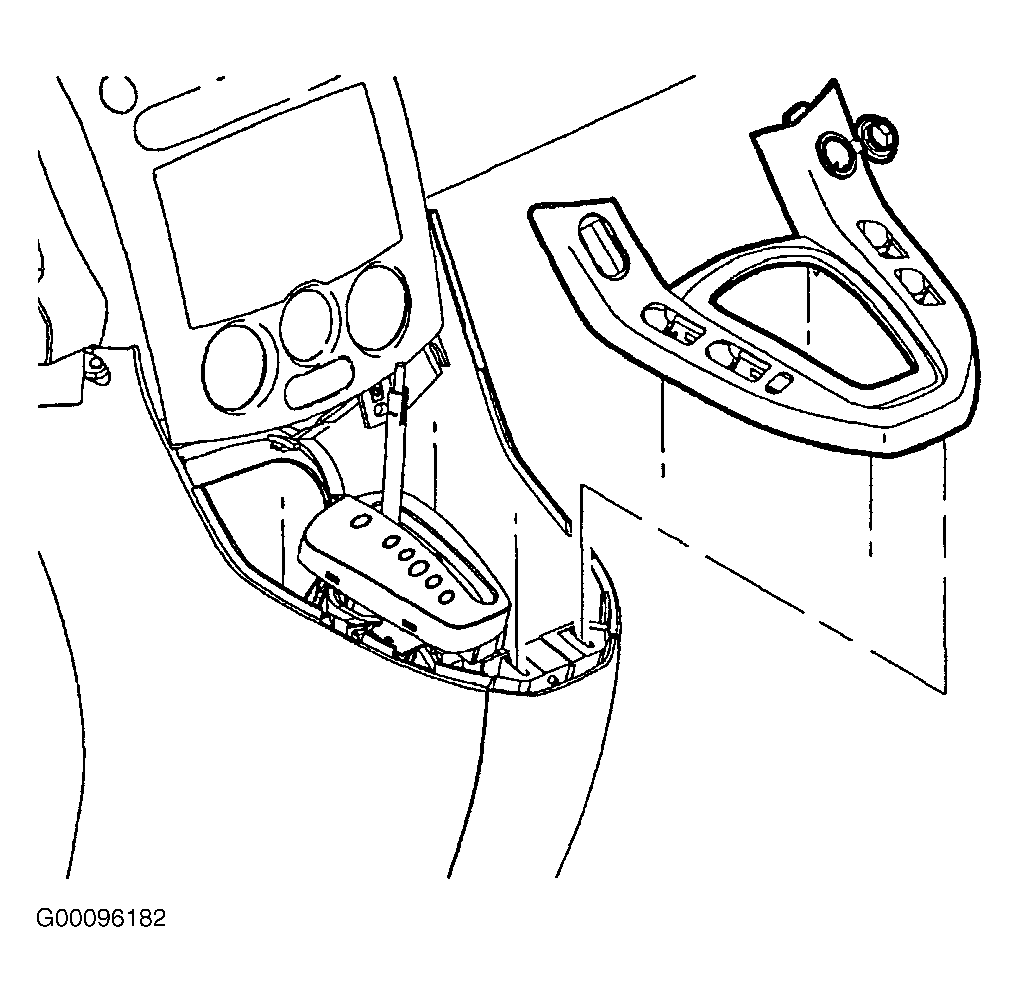

- Move the gearshift lever to the Neutral position. Install front edge of horseshoe bezel ensuring to engage alignment pins and front edge tabs with corresponding slots at bottom of radio bezel. See Fig 1
.
- Lower back edge by pressing down and snapping into place. Put gearshift lever in the Park position. Enable SIR. See AIR BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.
