Electronic Brake And Traction Control Module (Control Module And Valve Assembly) (EBTCM): Assembly

  1. Position control module on valve assembly.
  2. Install attaching screws.

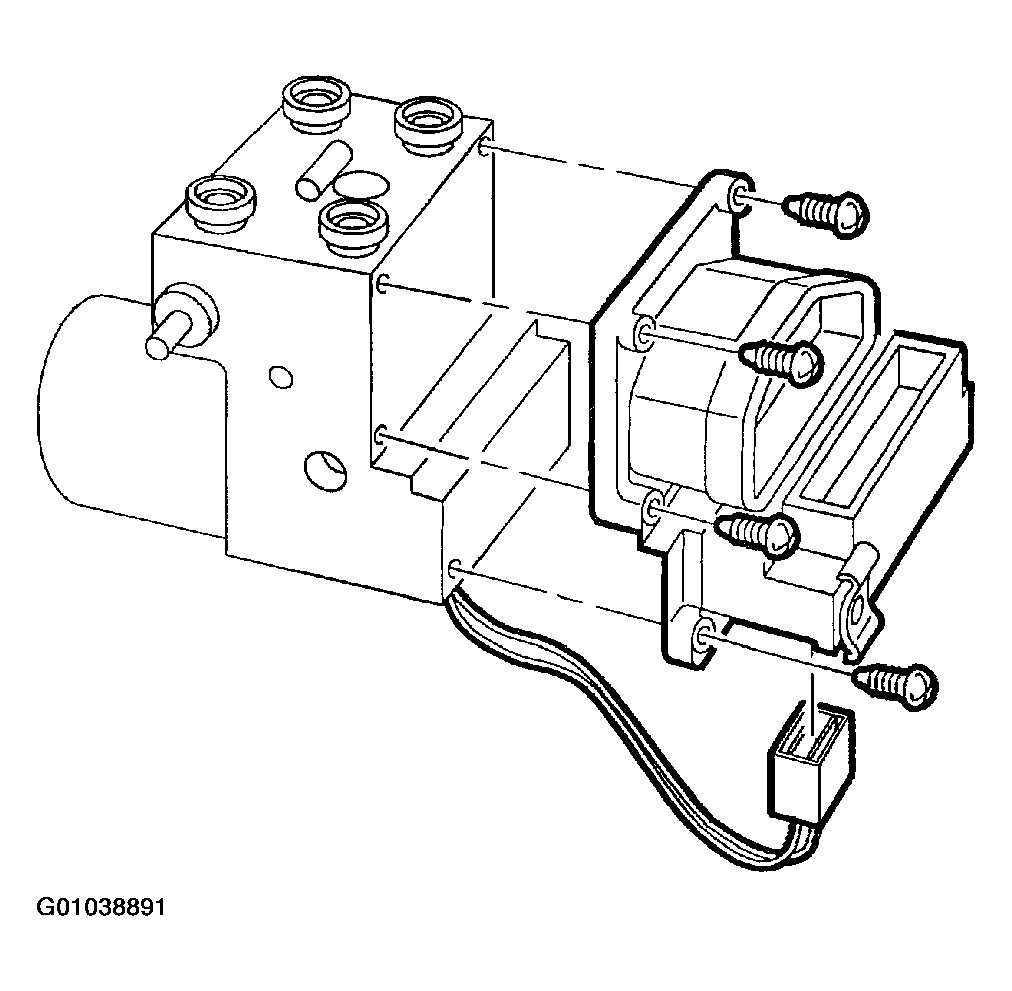

    Fig 1: Installing Attaching Screws
    G01038891Courtesy of GENERAL MOTORS CORP.
  3. Connect pump motor electrical connector.
