Steering Wheel Control Switch Assembly Replacement

Steering Wheel Control Switch Assembly Replacement

Disassembly Procedure

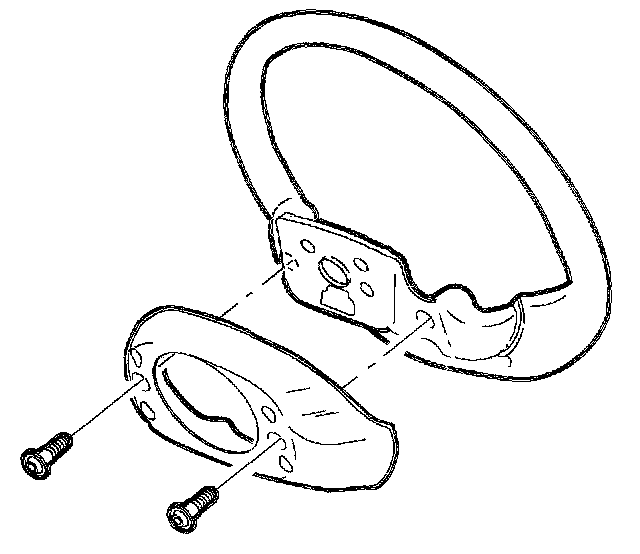

1. Remove the screws from the steering wheel shroud.

Notice: Cruise control switches must be removed from the rear. Do not attempt to pry them out from front as damage to steering wheel may occur.

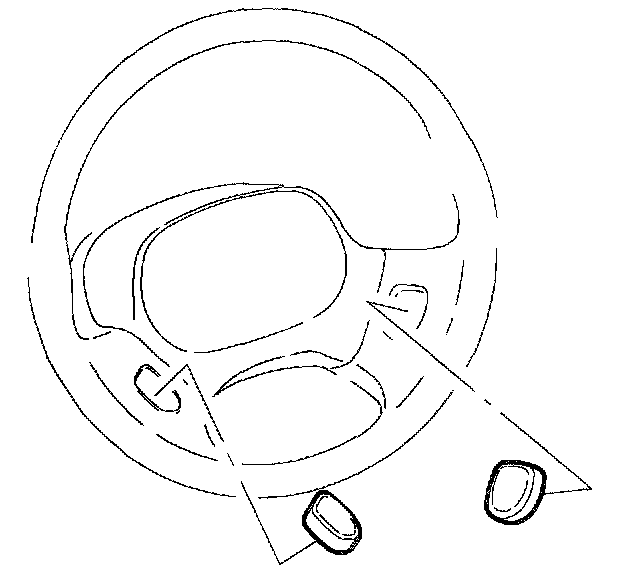

2. If the vehicle is equipped with cruise control, push the switches out from the rear of the steering wheel.

Assembly Procedure





1. If the vehicle is equipped with cruise control, install the switches by pushing them in place from the front of the wheel.
2. Install the screws in the steering wheel shroud.
