DTC B2709: Open Shift Lock Control Solenoid Output Driver: Notes

WARNING: This page is about a different car, the 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

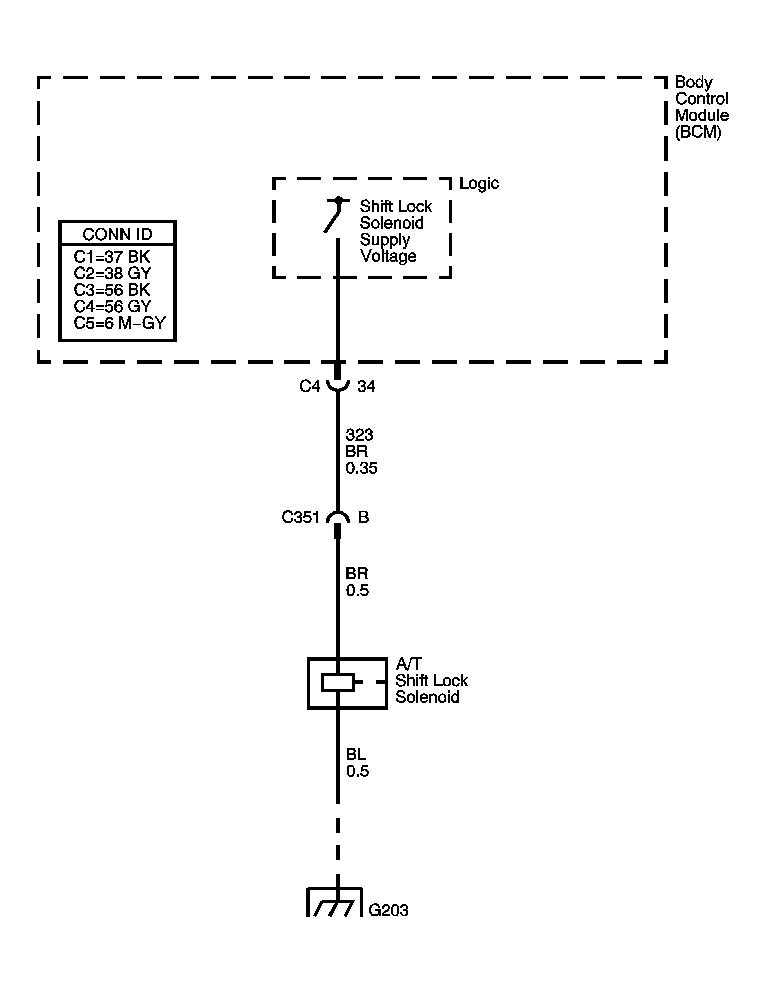

Fig 1: Automatic Transmission Shift Lock Control Solenoid Circuit
GM896504Courtesy of GENERAL MOTORS CORP.
