Automatic Transmission Shift Lock Control Schematics

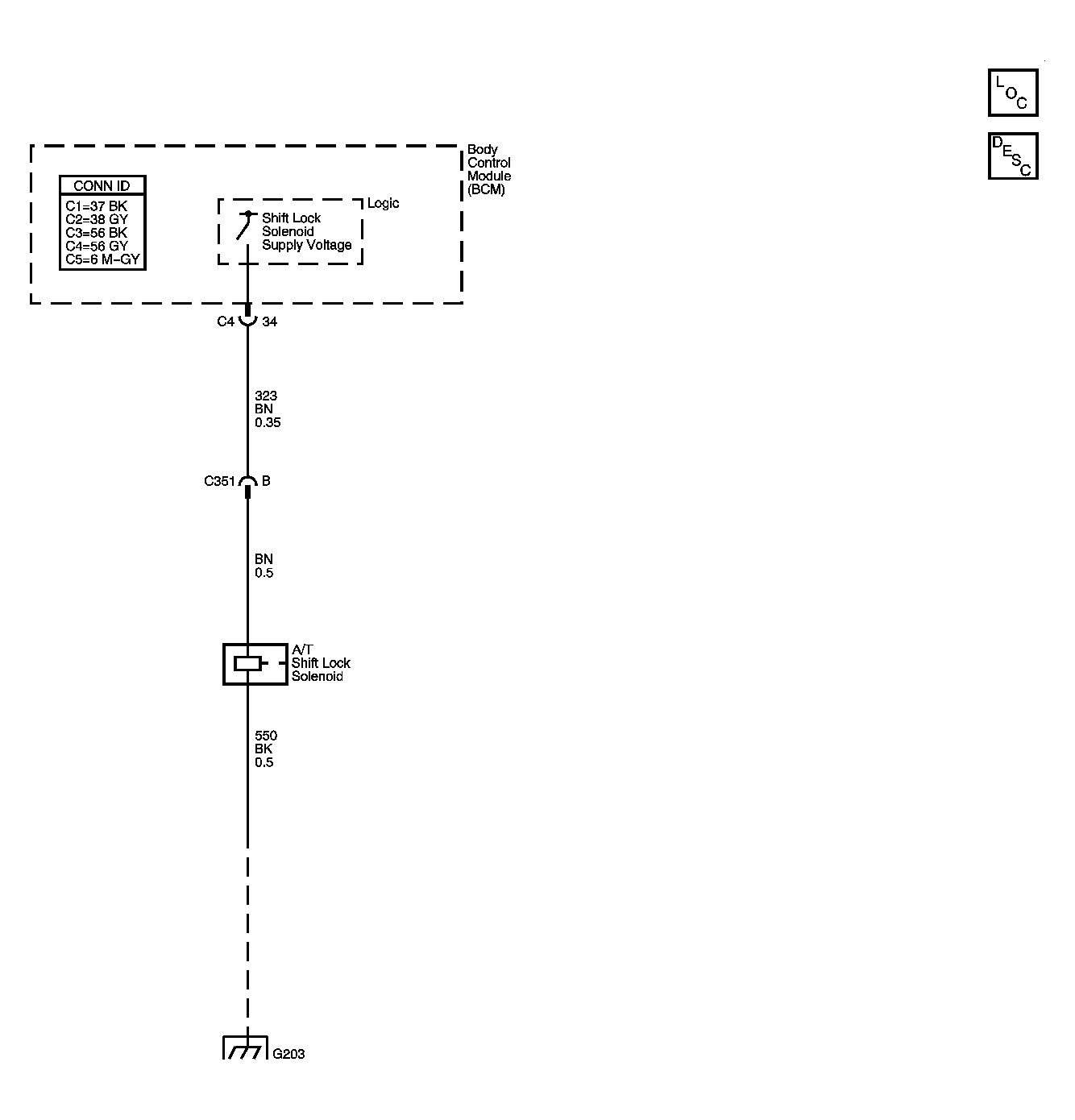

Fig 1: Automatic Transmission Shift Lock Control Schematic
GM870231Courtesy of GENERAL MOTORS CORP.
