Park/Neutral Position Switch Harness 12-Way Connector End View

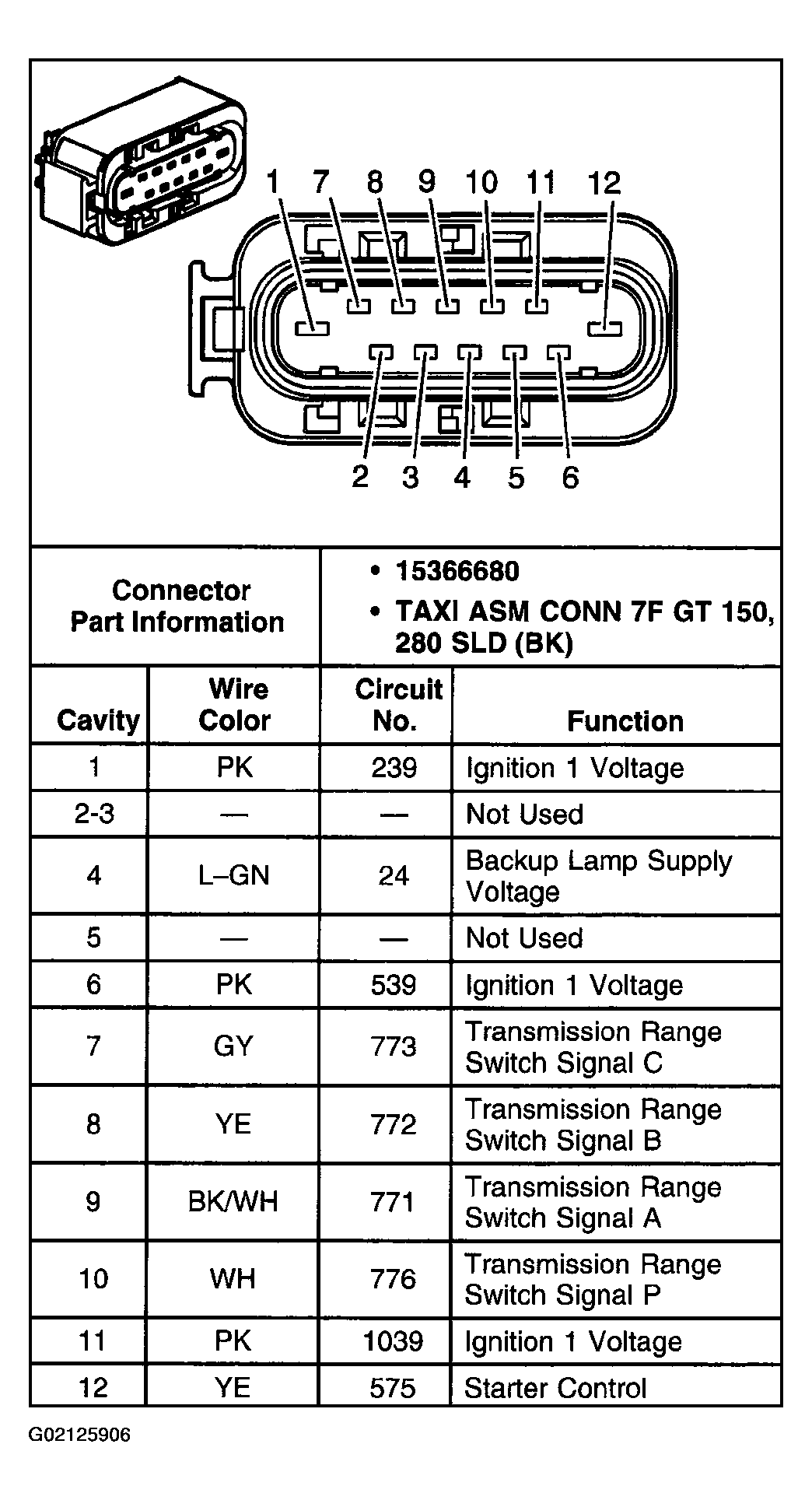

Fig 1: Park/Neutral Position Switch Harness 12-Way
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
